Shenzhen E-Fire Technology Development Co., Ltd.
China Manufacturer with main products: Lithium Battery, Charger, E-Cigarette, Power Bank |

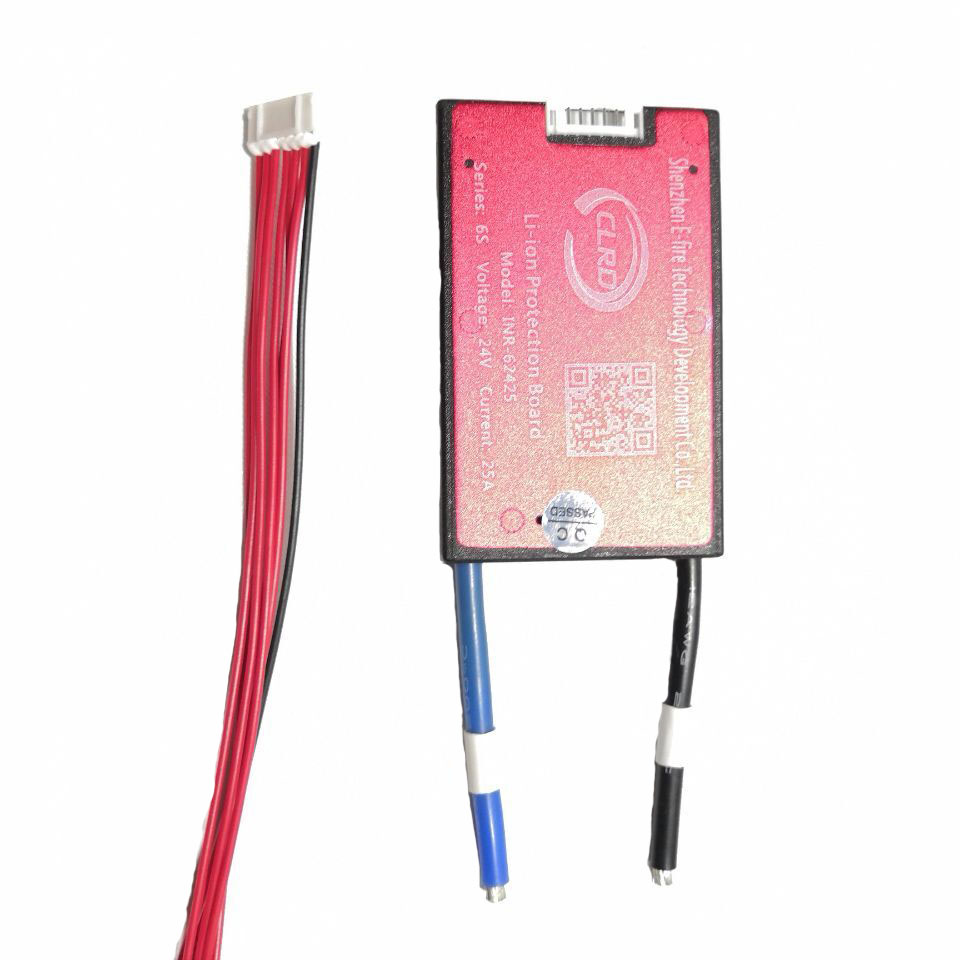

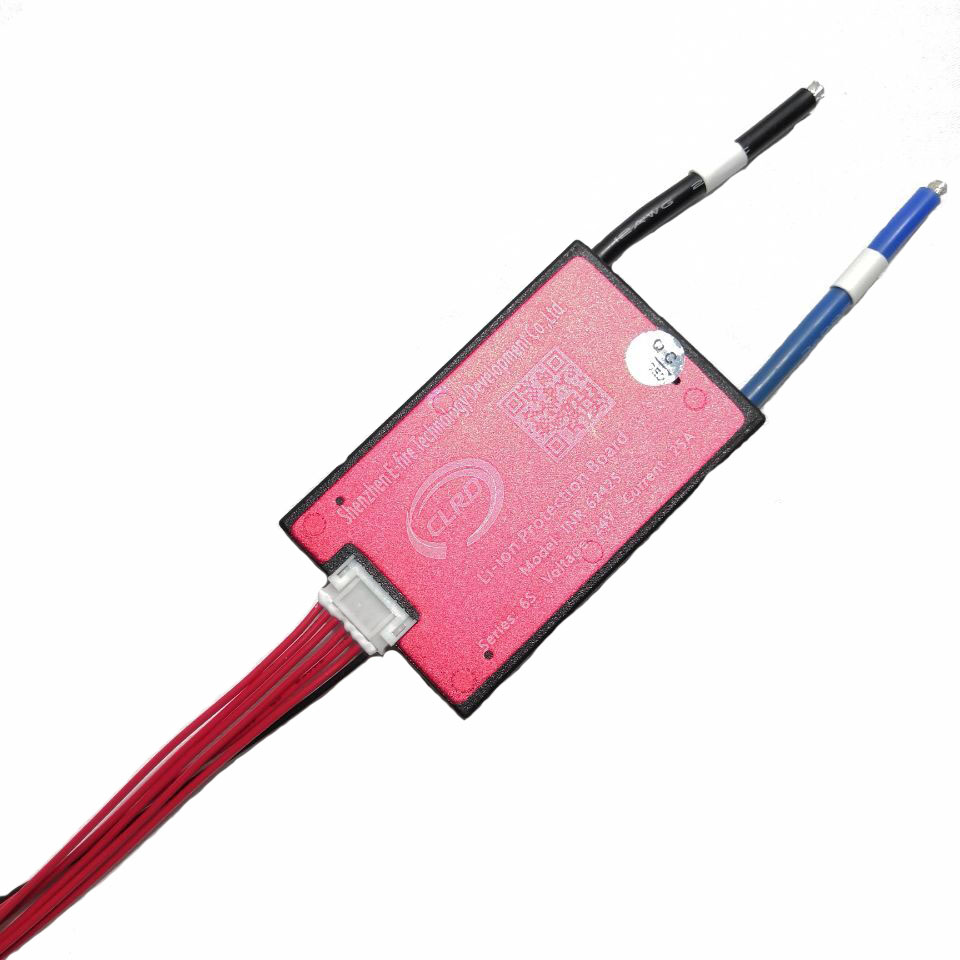

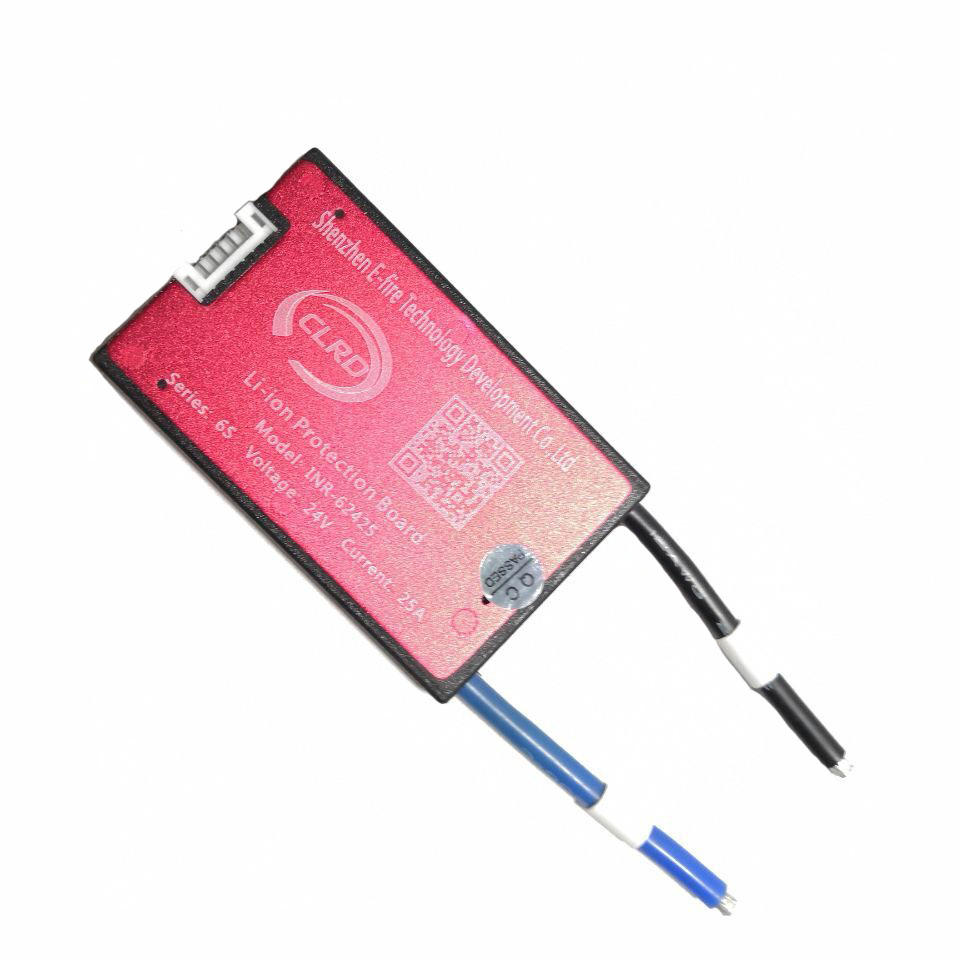

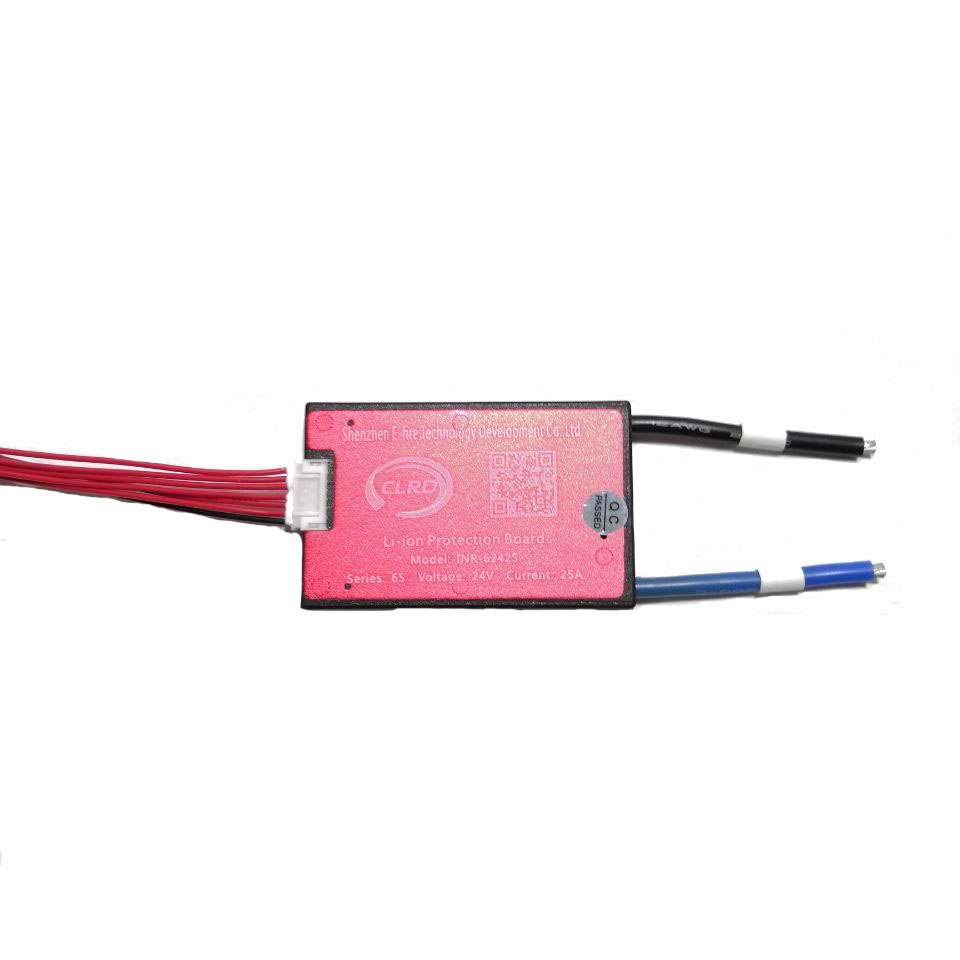

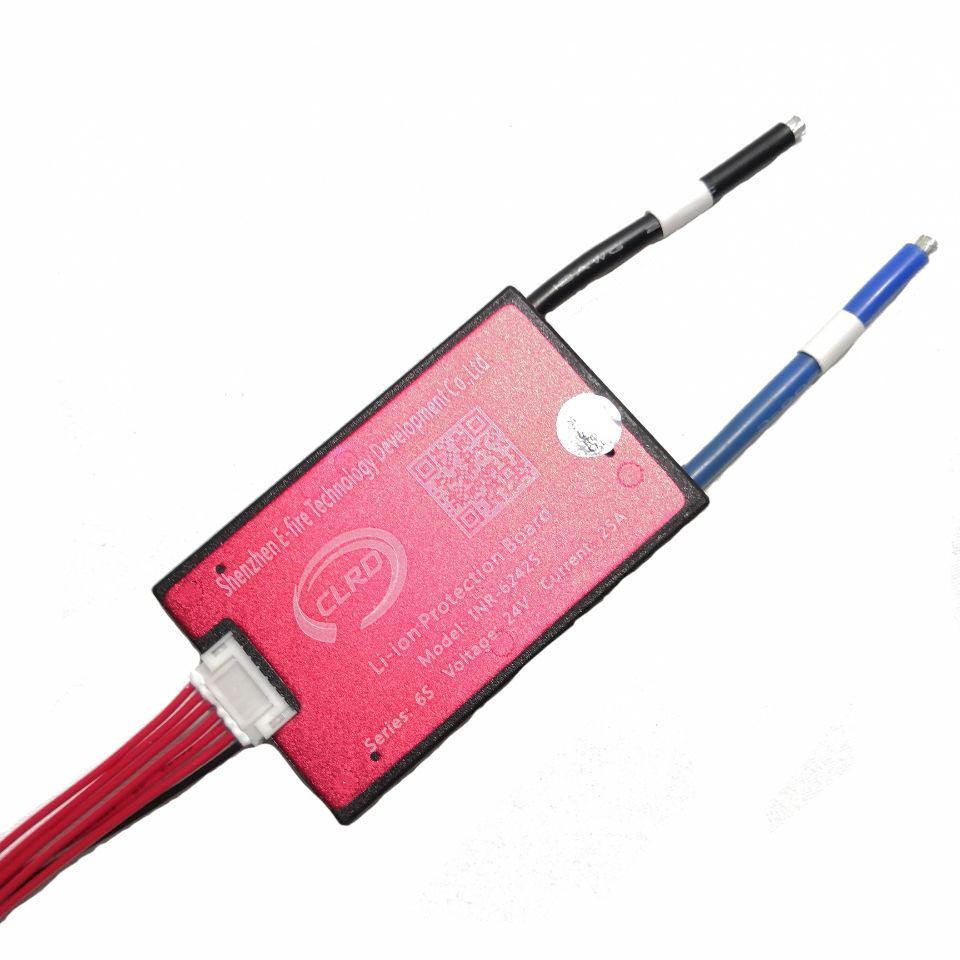

CLRD 6S 24V 25A Lithium Polymer Battery Pack Protection Circuit Module BMS
| FOB Price: | 8.00 - 10.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | DHL/UPS/FEDEX |
| Payment Terms: | T/T, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | China |
| Packaging Details: | Carton |
Quick Details
- Surface Finishing: 0
- Board Thickness: 0
- Copper Thickness: 0
- Base Material: glass fiber
- Brand Name: CLRD
- Model Number: INR-62425
Specifications
CLRD 6S 24V 25A li-ion bms pcm PCB with balance
Same port for charge and discharge
| 6S 24V | Detail | Spec |
| Discharge | Maximal Continuous Discharging Current | 25A |
| Peak Discharging Current | 60A | |
| over Current Protection Current | 60A | |
| Charge | Charging Voltage | 25.2V |
| Charging Current | 25A | |
| over charge protection | over Charge Detection Voltage | 4.250.025V |
| over Charge Detection Delay Time | 0.5S | |
| over Charger Release Voltage | 4.190.05V | |
| Cell balancing | Cell balancing Detection Voltage | 4.18V |
| Cell balancing Release Voltage | 4.18V | |
| Cell balancing Current | 355mA | |
| over discharge protection | over Discharge Detection Voltage | 2.80.05V |
| over Discharge Detection Delay Time | 0.5S | |
| over Discharger Release Voltage | 3.00.05V | |
| over current protection | over Current Detection Voltage | 150mV |
| over Current Detection Delay Time | 9MS | |
| over Current Protection Condition | Disconnect the load | |
| Short Protection | Detection Condition | Exterior Short Curcuit |
| Detection Delay Time | 250uS | |
| Release Condition | Disconnect the load | |
| Temperature Protection | 65 or 75 | Optional |
| Internal Resistance | MOSFET | 10m |
| Size | 57*75*9.5mm | |
