>Products Catalog > Nylon corrugated tubings & fittings > Straight Connector for Nylon Corrugated Tubings M20-AD18.5

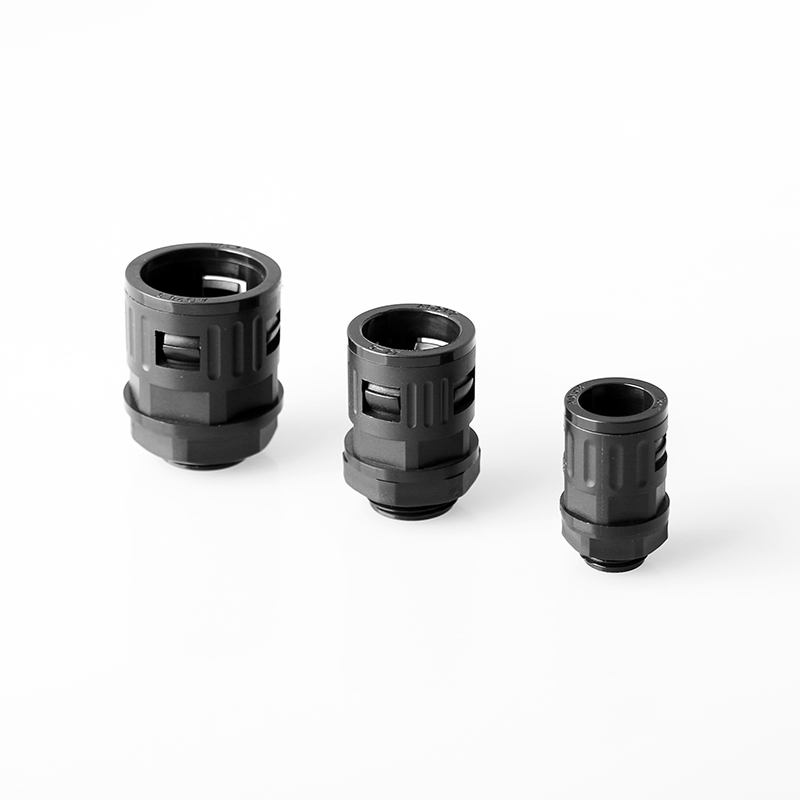

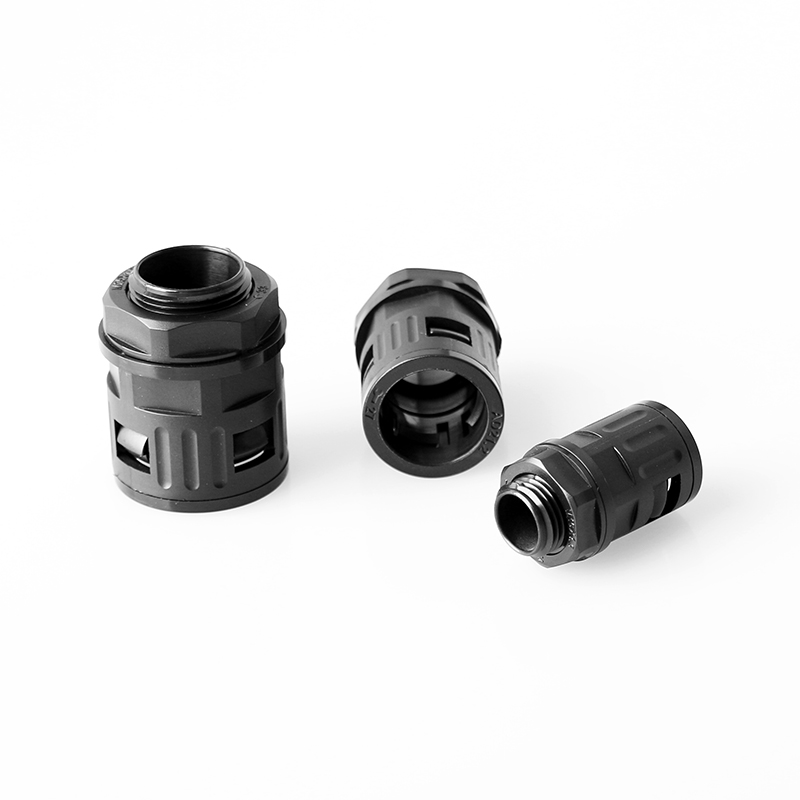

Straight Connector for Nylon Corrugated Tubings M20-AD18.5
| FOB Price: | 0.11 - 0.11 USD/Piece |
|---|---|
| Supply Ability: | 300,000 Piece(s) per Month |
| Shipping: | FOB Ningbo or Shanghai China |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 50pcs/polybag |
Quick Details
- Material: nylon PA66
- Type: Straight Connector
- Brand Name: GSH Electric
- IP rating: IP65
- working temperature: -40 centigrade to 105 centigrade
- Model Number: M20-AD18.5
Specifications
Straight Connector for nylon corrugated tubings M20-AD18.5
Thread Type: Metric, PG and G
Material: UL approved Nylon PA (Polyamide)
Working temperature: -40 to 100.
Color: Black (RAL 9005)
Application: Special design of inner locking buckle make the mounting and dismounting done only by plugging or pulling,without using tools. Straight Connector is the matching product for Plastic Corrugated Tubings / Conduits, can entry equipment cabinet directly, or can connect with electric device hole which have corresponding female thread, another side with respective size conduit by tighting up the sealing nut.

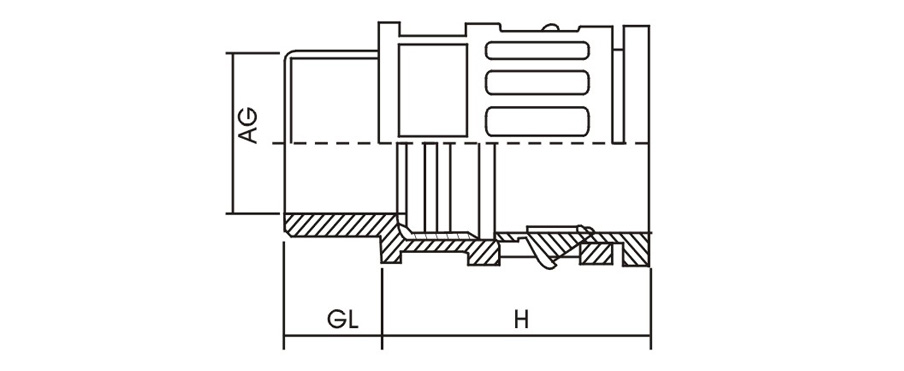

| Item No. | Fits to Tubing Size | Thread | AG Outer diameter (mm) |
AG Inner diameter (mm) |
Thread length GL (mm) |
Length H (mm) |
|---|---|---|---|---|---|---|
| SC-M10-AD10.0 | AD10.0 | M101.0 | 10 | 6.5 | 10 | 23 |
| SC-M12-AD10.0 | AD10.0 | M121.5 | 12 | 6.5 | 10 | 25 |
| SC-M16-AD10.0 | AD10.0 | M161.5 | 16 | 6.5 | 10 | 25 |
| SC-M12-AD13.0 | AD13.0 | M121.5 | 12 | 7.5 | 11 | 25 |
| SC-M18-AD13.0 | AD13.0 | M181.5 | 18 | 10 | 10 | 25 |
| SC-M20-AD13.0 | AD13.0 | M201.5 | 20 | 10 | 10 | 25 |
| SC-M16-AD15.8 | AD15.8 | M161.5 | 16 | 11.5 | 10 | 27.5 |
| SC-M18-AD15.8 | AD15.8 | M181.5 | 18 | 12 | 10 | 27.5 |
| SC-M20-AD15.8 | AD15.8 | M201.5 | 20 | 12 | 10 | 27.5 |
| SC-M20-AD18.5 | AD18.5 | M201.5 | 20 | 14.3 | 12 | 28 |
| SC-M20-AD21.2 | AD21.2 | M201.5 | 20 | 15 | 13 | 31.5 |
| SC-M24-AD21.2 | AD21.2 | M241.5 | 24 | 18 | 13 | 31.5 |
| SC-M25-AD21.2 | AD21.2 | M251.5 | 25 | 17 | 13 | 27 |
| SC-M25-AD25.0 | AD25.0 | M251.5 | 25 | 19.5 | 14 | 29 |
| SC-M25-AD28.5 | AD28.5 | M251.5 | 25 | 20 | 14 | 34 |
| SC-M27-AD28.5 | AD28.5 | M271.5 | 27 | 20.5 | 14 | 34 |
| SC-M30-AD28.5 | AD28.5 | M301.5 | 30 | 22 | 14 | 34 |
| SC-M32-AD28.5 | AD28.5 | M321.5 | 32 | 22 | 14 | 34 |
| SC-M32-AD34.5 | AD34.5 | M321.5 | 32 | 27 | 14 | 36 |
| SC-M36-AD34.5 | AD34.5 | M361.5 | 36 | 29 | 14 | 36 |
| SC-M40-AD34.5 | AD34.5 | M401.5 | 40 | 29 | 14 | 36 |
| SC-M40-AD42.5 | AD42.5 | M401.5 | 40 | 34 | 14 | 38 |
| SC-M42-AD42.5 | AD42.5 | M421.5 | 42 | 36 | 14 | 38 |
| SC-M48-AD42.5 | AD42.5 | M481.5 | 48 | 36 | 14 | 38 |
| SC-M50-AD54.5 | AD54.5 | M501.5 | 50 | 44 | 15.5 | 39 |
| SC-M63-AD54.5 | AD54.5 | M631.5 | 63 | 48 | 15.5 | 39 |
| SC-PG7-AD10.0 | AD10.0 | PG7 | 12.5 | 6.5 | 10 | 23 |
| SC-PG9-AD13.0 | AD13.0 | PG9 | 15.2 | 10 | 10 | 25 |
| SC-PG11-AD15.8 | AD15.8 | PG11 | 18.6 | 12 | 10 | 27.5 |
| SC-PG13.5-AD15.8 | AD15.8 | PG13.5 | 20.4 | 12.5 | 10 | 28 |
| SC-PG13.5-AD18.5 | AD18.5 | PG13.5 | 20.4 | 14.3 | 12 | 28 |
| SC-PG16-AD21.2 | AD21.2 | PG16 | 22.5 | 17 | 13 | 32 |
| SC-PG21-AD28.5 | AD28.5 | PG21 | 28.3 | 23 | 14 | 34 |
| SC-PG29-AD34.5 | AD34.5 | PG29 | 37 | 29 | 14 | 36 |
| SC-PG36-AD42.5 | AD42.5 | PG36 | 47 | 36 | 14 | 38.5 |
| SC-PG48-AD54.5 | AD54.5 | PG48 | 59.3 | 48 | 15 | 40 |
| SC-G1/4-AD10.0 | AD10.0 | G1/4 | 13.157 | 6.5 | 10 | 23 |
| SC-G3/8-AD15.8 | AD15.8 | G3/8 | 16.662 | 12 | 10 | 28 |
| SC-G1/2-AD21.2 | AD21.2 | G1/2 | 20.955 | 15 | 13 | 31 |
| SC-G3/4-AD28.5 | AD28.5 | G3/4 | 26.441 | 20 | 14 | 35 |
| SC-G1-AD34.5 | AD34.5 | G1 | 33.249 | 27 | 14 | 36 |
| SC-G1-1/4-AD42.5 | AD42.5 | G1-1/4 | 41.91 | 36 | 14 | 38 |
| SC-G2-AD54.5 | AD54.5 | G2 | 59.614 | 48 | 15.5 | 39 |
