the Tank Bottom Angle Valve with Washing Pipe

FOB Price: 6000.00 - 8000.00 USD/Set
Supply Ability: 30 Set(s) per Week
Shipping: By Sea
Payment Terms: L/C, D/P, T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: Wooden Box

Quick Details

  • Brand Name: QUANSHUN
  • Temperature of Media: Medium Temperature
  • Material: Casting
  • Pressure: Medium Pressure
  • Standard or Nonstandard: Customized
  • Model Number: Fg545Y-150P
  • Port Size: 8 inch
  • Media: Water
  • Power: Manual
  • Structure: Angle
  • Type: valve open into tank

Specifications

the tank bottom angle valve with washing pipe is designed based on practical situation of the coal chemical industry. during the development of the tank valve, characteristic of the coal slurry has been taken into consideration as well, the stainless steel dumping valve is generally installed at the bottom of the coal slurry tank to discharge the medium.

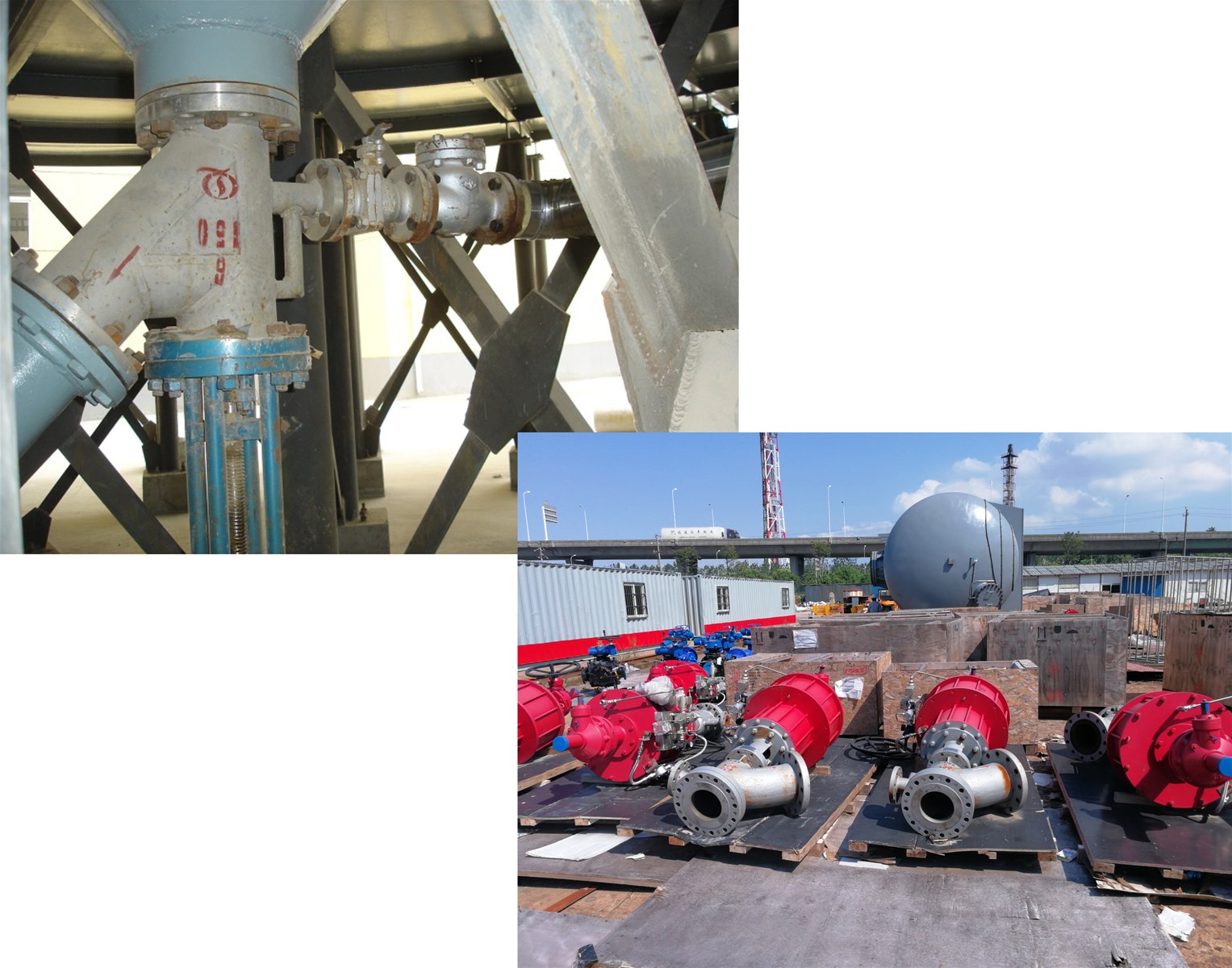

The tank bottom angle valve with washing pipe

BENEFITS

1.Caking and blocking of the coal slurry can be avoided.Special cleaning device is offered for the flange valve body,which can be used to clean the inside of the medium periodically.

2.Made of corrosion-resistant material,such as stainless steel the inner cavity of the valve body is painted.

3.the sealing surface made of bead weld cemented carbide makes for the longer service of the special dump valve for coal slurry.

4.the anti-rotation mechanism of the dump valve for coal slurry can guarantee the rectilinear motion of the valve stem.

5.both rising disc type (the valve is opened into tank) and lowering disc type (the valve is opened into valve) can be designed.

the tank bottom angle valve with washing pipe

TECHNICAL SPECIFICATION

Size: 2" ~8" DN50~DN200
Pressure: Class 150~Class 300  PN1.0~PN16
Body Material: WCB(A105), CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc.
Connection Type: Flange
Driving Type: Bevel gear,pneumatic

APPLICATION

Coal chemical industry.
