Shanghai Unique Alloy Co., Ltd.
China Manufacturer with main products: Beryllium Copper Wire, Beryllium Copper Bar, Beryllium Copper Rod, Beryllium Copper Tube, Beryllium Copper Plate, Beryllium Copper Strip,... |

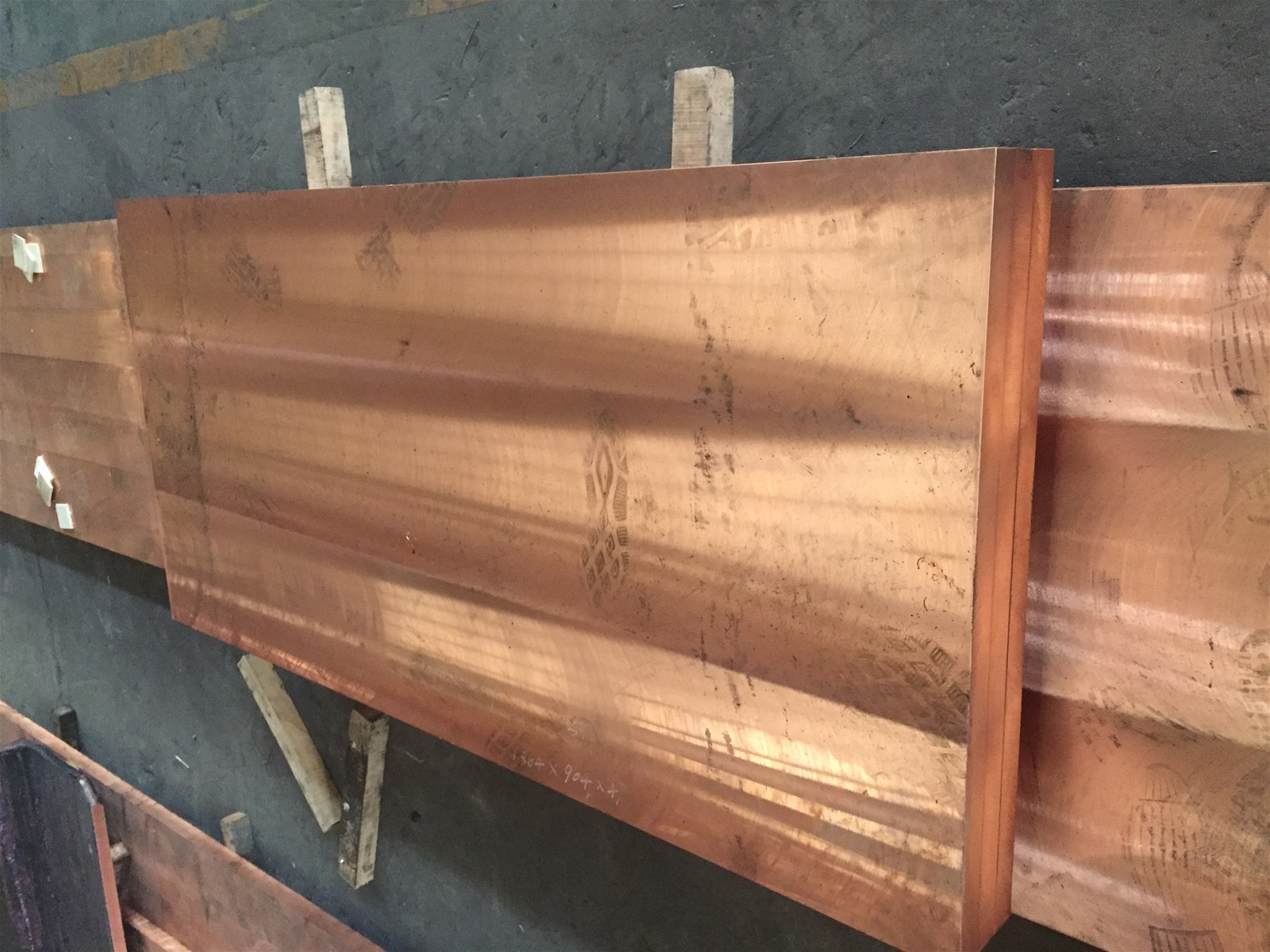

CuCo2Be Cobalt Beryllium Copper Plate
| FOB Price: | 19.90 - 25.00 USD/Kilogram |
|---|---|
| Supply Ability: | 600 Ton(s) per Month |
| Shipping: | Customs |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Wooden box |
Quick Details
- Elongation ( %): as per requirement
- Alloy Or Not: Is Alloy
- Shape: Plate
- Application: Industrial
- Brand Name: OEM/UNIQUE
- Ultimate Strength ( MPa): as per requirement
- Cu (Min): 98%
- Grade: CuCo2Be
- Material: Bronze
- Width: Customer's Request
- Thickness: Customs
- Model Number: CuCo2Be
Specifications
C17500/CuCo2Be/CW104C/DIN 2.1285 Cobalt Beryllium Copper
Chemical Composition:
Be: 0.40-0.70%
Co: 2.40-2.70%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
Shapes:
Round bars, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.
Available Sizes:
Rod: Dia.5~16mm; Wire: Dia.0.1-5.0mm
Tube: OD10~60mm, ThK 0.1~10mm
Plate: thk min 0.5mm
Custom Diameter & Sizes, Random Mill lengths
Related Standard:
Rods/Bars/Tubes: ASTM B441, SAE J461,463; RWMA Class 3
Strips: ASTM B534
Sheets: ASTM B534
Wires: ASTM B441
Plates: ASTM B534, SAE J461,463; RWMA Class 3
European Standards: CuCo2Be, DIN 2.1285; CW104C to EN
Application
- electrodes for resistance welding, preferably of rust-free and heat-resistance steels as well as welded wire mesh
- upsetting electrodes, electrode cheeks and UP nozzles
- sealing cheeks and plates for plastic welding machines
- pistons in the cold chamber diecasting machines (light alloy casting)
- nozzles for hot channel systems
- inserts for plastic injection moulds
Other material are also available
C17200/CuBe2/CW101C/DIN 2.1247
C17300/CuBe2Pb/CW102C/DIN 2.1248
C17500/CuCo2Be/CW104C/DIN 2.1285
C17510/CuNi2Be/CW110C/DIN 2.0850
CuCo1Ni1Be/CW103C
