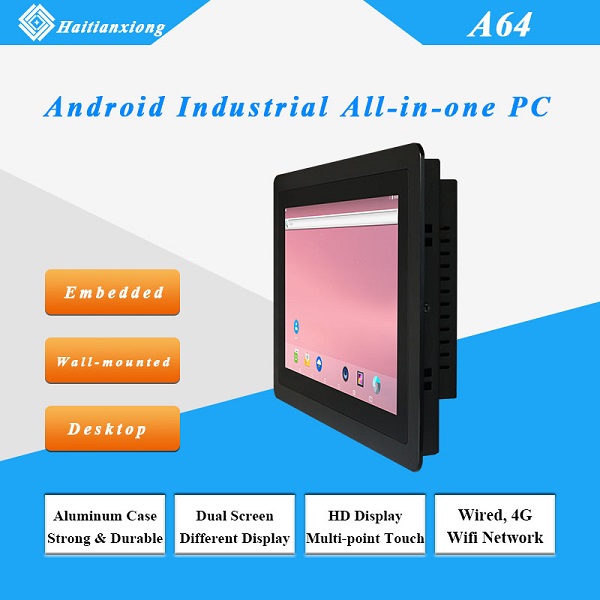

Android 10/15/17/21 Inch Wall Mount A64 Industrial All-In-One PC
| FOB Price: | 220.00 - 221.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | Yes |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | anti-static foam box |
Quick Details
- Brand Name: Haitianxiong
- Hard Drive Capacity: 500GB
- Screen Size: 15"
- Type: All-In-One
- Products Status: Stock
- Model Number: Android A64 IndustrialAll-in-one PC
- Processor Main Frequency: 1.8GHZ
- Optical Drive Type: Combo Drive
- Widescreen: Yes
- Display Type: LCD
- Graphics Card Type: Integrated Card
- Memory Capacity: 2GB
Specifications
Product Name: Android Industrial All-in-one PC Model: DJ-TP0101A
Introduction
Android industrial all-in-one PC adopts Allwinner new generation of superior performance A64 Cortex-A17 quad-core application processor, frequency up to 1.8GHz, internally integrated Mali-T764GPU, equipped with 10.1inch high-brightness LCD screen, multi-point high-sensitivity capacitive touch, body design with HDMI, UART, USB, LAN and other application interfaces, fully suitable for industrial equipment, vehicle control,intelligent self-service terminal, self-service vending machine, financial system,etc.
Feature
L with ultra-thin and simple design, high-end aluminum alloy panels, cold-rolled sheet metal backshell, safe and sturdy, dust-proof and waterproof on panel
L Excellent performance, can be embedded in any industrial equipements and deployed in harsh and complex environments
L Based on Allwinner A64 quad-core processor, 1.8GHz frequency
L Users can customize RAM and eMMC capacity as needed
L 4K UHD video resolution capability, support for 4K HDMI digital multimedia output and dual-screen display
L Integrated body design,fanless, noiseless and low power consumption, perfectly displays the function and industrial designs
Hardware Parameters
System |
DefaultAndroid7.1(Optional forAndroid5.1) |
CPU |
Allwinner A64 quad-core processor,Based on ARM Cortex-A17 architecture, frequency up to 1.8GHz |
Built-in Mali-T764 processing engine, support 4K, H.265 hardware decoding | |
RAM |
Standard2GByte DDR3 |
Storage |
Standard8GByte eMMC |
Network |
1x 10/100/1000M adaptiveeThernet, RJ45 port |
Mini PCIE slot with SIM card, support 3G/4G module (optional) | |
WiFi/BT combo module(Optional) | |
Support external WiFi, 4G antenna (optional) | |
I/O |
2x USB HOST2.0(One of which with slave function) |
1x RS232 serial port | |
1x TF card slot | |
1x SIM card slot | |
1x HDMI OUT port | |
1x Recov button | |
1xPower button | |
1x DC in(12V) | |
Audio |
1x 3.5mm headphone jack, left and right stereo output |
1x 8 /10W high fidelity speaker | |
Screen |
10.1" LCD screen |
1280*800 resolution | |
16: 9 Display ratio | |
DisplayARea: 216.96(W)x 135.60(H)mm | |
Contrast: 800 | |
Brightness: 350 CD/m2 | |
LED backlight | |
Touch |
Capacitive screen |
Ten-point touch | |
50 thousand times touch life | |
RTC |
Support,Built-inCR2032 battery |
Power |
DC 12V power input |
