Mini Compact Wireless Video Camera Transmitter with 15ms Low Latency

FOB Price:	1000.00 - 3000.00 USD/Set
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: IFLY
Frequency: 2.4Ghz
Frequency Range: 24.2-2478Mhz
Polarization: Dual
Weight: 98g
Model Number: FIM-2410
Modulation: TDD-COFDM
Video input: HDMI/IP
IP Protocol: UDP/TCP/IP
Resolution: Full HD 1080P
Distance: 10-14km
Encryption: AES128
Antenna: Mini Omni antenna
Power Input: DC7-18V

Specifications

Compact mini 10km+ drone video data link with 15ms low latency

Introduction:

FIM-2410 is a digital miniature HD video data link particularly suitable for unmanned and manned aircraft applications. FIM-2410 can be used for HD video as well as command and control transmission with up to 5 Mbps data rate.

Features:

Miniature design at 98 grams
Simultaneous Ethernet and Serial Data
1W power output
up to 5 Mbps throughput
Encryption available as an option
Extended temperature range

Advantages:
as commercial UAV applications such as security & surveillance, infrastructure inspection, mapping and more are shaping this market, there is high demand for high-quality and lightweight communication and video payload solutions.

IFLY device demonstrates an exceptional video quality and low latency video, telemetry and control. this low latency is crucial for the successful use of camera with a narrow field-of-view.

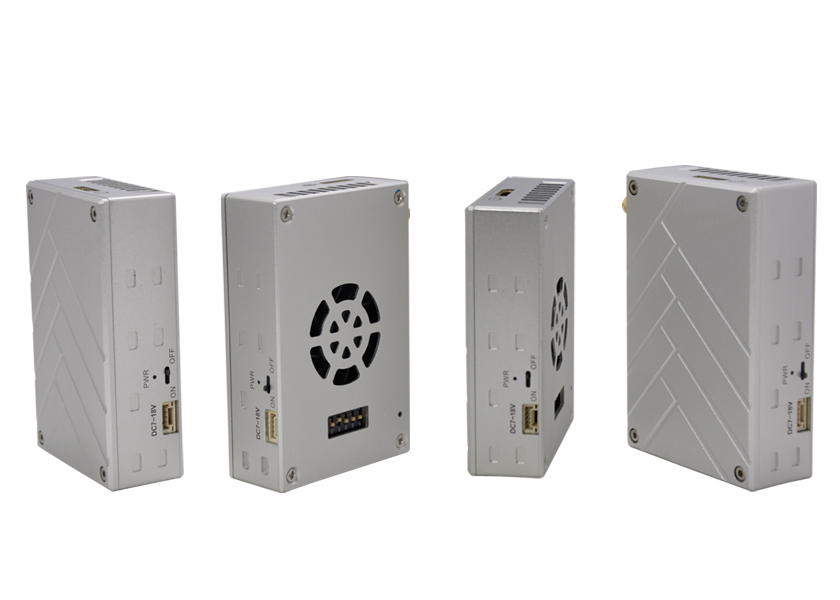

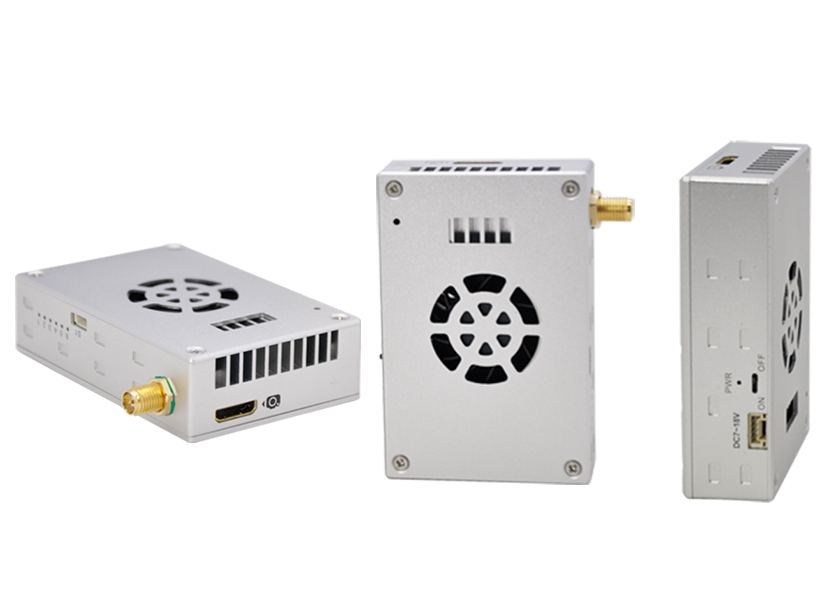

Mini Compact Wireless Video Camera Transmitter with 15ms Low Latency

Parameters

Frequency	2.4GHz(2.400-2.482GHz)
Error Detection	LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power	1Watts
Power Consumption	TX: 9Watts/RX: 6Watts
Distance	10km
Bandwidth	4/8MHz
Video Input/output Interface	on board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode	DIP or SPI2MCU
Antenna	1T1R/ Tx: 5db(Omni Antenna) Rx: 7db(Omni Antenna)
Video Color Space	Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format	AVC adds H.265 feature TS stream
Adjustment mode of bitrate	Software adjustment
Communication Channel Encryption	AES128
Ethernet Protocol	TCP/UDP
Video Record	by software
Transmission Mode	Point to point
Start-up time	25s
Latency	15-30ms
Transmission Rate	3-5Mbps
Receive Sensitivity	-100dbm@4Mhz -95dbm@8Mhz
Two-way function	Support video and duplex data simultaneously
Data	Support SBUS/TTL/MAVLINK

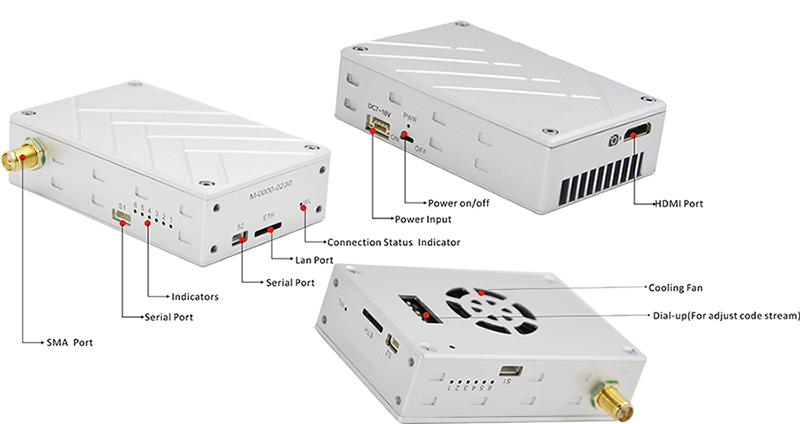

Interface (same interface on TX & RX)	1. 1080P 60 HDMI Mini RX x1
	2. 100Mbps Ethernet to USB / RJ45 on Windows x2
	3. S1, S2 TTL bidirectional serial port x2 for data/control/playload/MAVLINK/TELEMETRY
	4. Power Input (DC7-18V) x1
Indicator Light	HDMI input/output indicator light
	Transmitting and receiving indicator light
	Video board indicator light
	Power light
HDMI	HDMI mini/Flexible Flat Cable(FFC)
Appearance Design	CNC technology/double aluminum alloy shell with waterproof design
Power supply	DC 7- 18V (DC 12V advised)
Temperature Range	Operating temperature:-40C ~+85C Storage temperature:-55C ~ +100C
Dimension	Tx/ Rx: 724924mm
Weight	Tx/ Rx: 98g
