UAV Digital Long Range Video Transmitter 10km Easy Installation with 15ms Latency
| FOB Price: | 1000.00 - 3000.00 USD/Set |
|---|---|
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: IFLY
- Frequency: 2.4Ghz
- Frequency Range: 2.402-2.478Ghz
- Polarization: Dual
- Weight: 98g
- Modulation: TDD-COFDM
- Weight: 98g
- Receive Sencitivity: -100dbm@4Mhz
- RF Power: 3-5Days
- Dimension: 73*49*19mm
- Distance: 10-14km
- Video Input: HDMI
- Video Output: HDMI&IP
Specifications
10km long range 2.4GHz Full HD Drone/UAV digital video downlink with 15ms latency
Description

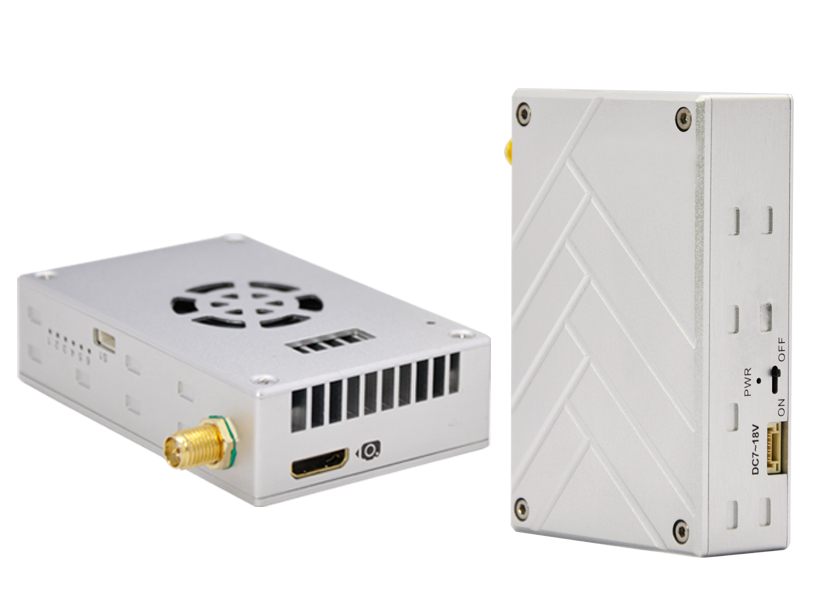

FIM-2410 is IFLY ultra long range UAV video downlink, which have UHF2.4GHz to meet the market different demands.Transmission range can up to 60km,which is the best choice for FHD ultra long range UAV video transmission.
System Features:
- TDD COFDM technology
- Long range video transmission
- High resilience to interference, echo and Doppler Effect (high mobility)
- Ease of installation
- Plug-and-play installation
- Local LED management display
- Multiple frequency channels selection
- Easy configuration via software.

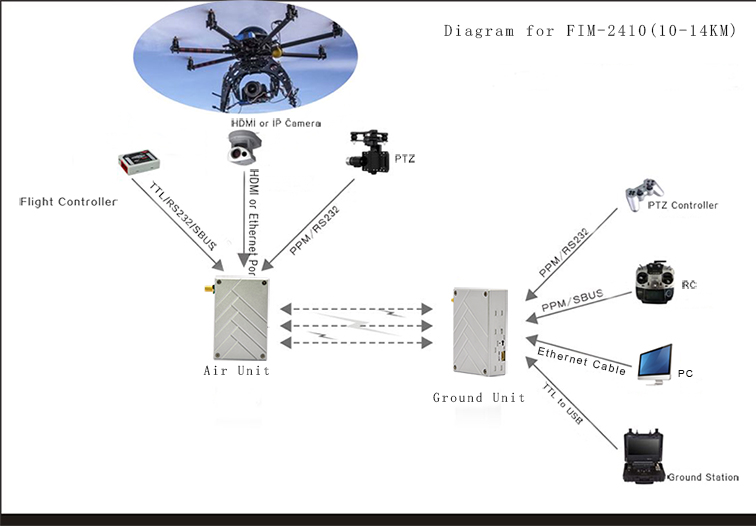

Application:
FIM-2410 wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, Military, and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.
| Parameters | |
| Wireless Channel | 2.400-2.499Ghz(Adjustable by software) |
| Communication Bandwidth | 4/8MHZ |
| RF Transmission Power | 1W |
| Data Rates | 3/6Mbps |
| RX Sensitivity | -103dbm |
| Interfaces on Transmitter | 1080P60 HDMI RX1 |
| Power Input Interface--XT30 Industrial Grade 1 DC 16-48V | |
| USB 2.0--for linking configure software only. | |
| SMA RF 1 | |
| Interfaces on Receiver | 1080P60 HDMI Mini TX1 |
| LCD--Displaying RSSI and link state. | |
| Buttons5--for configuring receiver model. | |
| Power Input Interface--XT30 Industrial Grade 1 DC 9-24V | |
| SMA RF 2 | |
| Wireless Fault Tolerance | FEC/MPEG |
| Modulation | DVB-T/DVB-T2/DVB-T2 |
| Distance Range | 10-14km |
| Total Latency | 15-30ms |
| Reconnection time | Less than 1s after signal has been recovered |
| Adjustment of COFDM | QPSK one-way |
| Overall Consumption Power(Maximum) | Transmitter terminal: 9W Receiver terminal: 6W |
| Temperature Range | Operating temperature: -4085 Storage temperature: -55 - 125 |
| Dimensions | TX: 73Mm49mmx19mm RX: 73mm49mmx19mm |
| Radiator | Fancooler or aluminum heat sink |
| Gram | TX: 98g RX: 98g |
