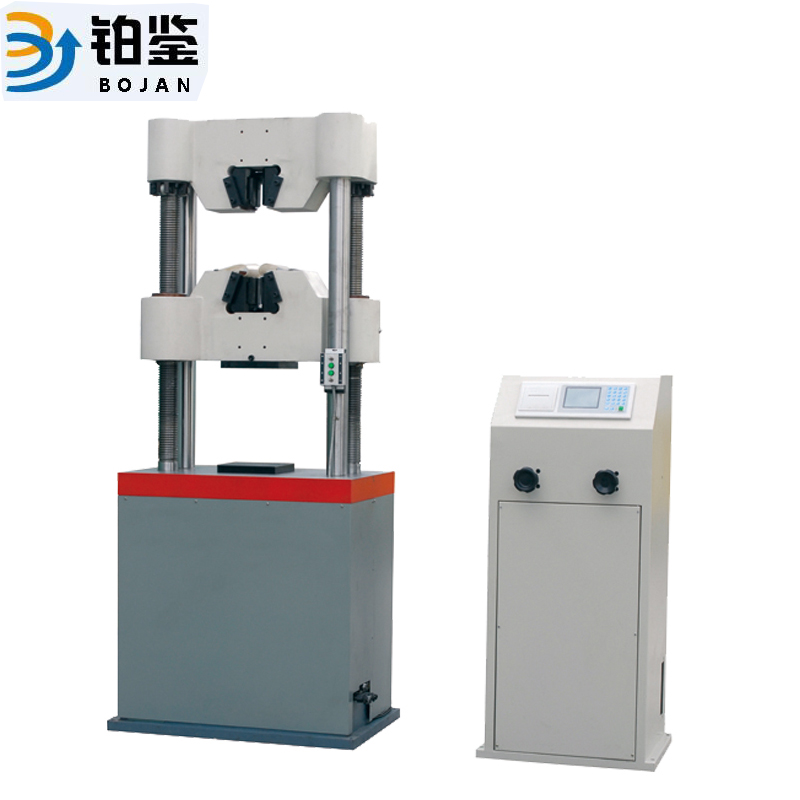

Hydraulic Universal Tensile & Compression Testing Machine Chinese Manufacturer

FOB Price:	6521.00 - 7971.00 USD/Set
Supply Ability:	99 Set(s) per Month
Shipping:	FOB Qingdao
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard export wooden case

Quick Details

Usage: Universal Testing Machine
Power: Hydraulic
Brand Name: Bojan
Warranty: 2 years
weight: 2200KG
Max test force: 300KN/ 600kN/1000KN
test force resolution: 0.01KN
the maximum tensile test space: 600mm
piston stroke: 200mm

Specifications

Hydraulic Universal tensile and compression testing machine Chinese manufacturer
PArameters:

1, the maximum test force: 300KN/600KN/1000KN
2, test force measurement range: 2%-100%
3. Relative error of test force indication value: 1% of indication value
4, test force resolution: 0.01kN
5, the maximum tensile test space: 600mm
6, the maximum compression space:550mm
7, piston stroke: 200mm
8, round sample jaw clamping diameter:13-40mm
9, flat sample jaw clamping thickness: 0-30mm
10, the maximum clamping width of the flat sample: 75mm
11, pressure plate size: 160mm
12, the maximum distance between two points of the bending test: 300mm
13, bending roll width: 140mm
14, bending roll diameter: 30mm
15, the maximum moving speed of the piston: 50 mm / min
16, clamping method: automatic / manual tightening (recommended to choose Automatic)
17, the host dimensions: about 800 580 2100mm
18, measuring cabinet dimensions (mm): about 550 550 1200
19, weight: about 2200KG
