Large Size Vegetable/Plant Softgel Encapsulation Machine

FOB Price:	30000.00 - 60000.00 USD/Set
Supply Ability:	5 Set(s) per Month
Shipping:	CHINESE SEAPORT
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	STRONG WOOD CASE

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Type: Filling Equipment
Application: Capsule
Brand Name: JOYSUN
Condition: Brand New

Specifications

Vegetable& Gelatin Soft gel Encapsulation machine

Product Description

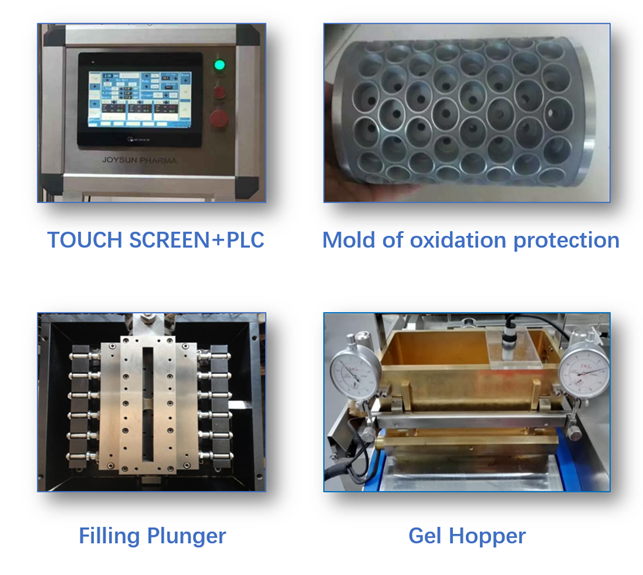

Veggie& gelatin encapsulation machine is designed to produce two types of softgel capsules. One is based on gelatin, bovine, fish skin or other raw material from animal; another one is based on totally vegetable raw material such as starch/ carrageenan. Our machine is suitable for both usages while changing special parts. It can also make paintball of CS games. The main mechanical parts as below fig. Shows. China Cheap Softgel Encapsulation Machine

China Cheap Softgel Encapsulation Machine

Necessity of Veggie& Gelatin Encapsulation Machine
We use make of raw material property such as viscosity, flexibility and stickiness, under the condition of heating and cooling, ribbon peeling and etc., try to hold medicine material inside gelatin-ribbon-made space. by this way, we make a soft gel capsule. It's a very hard dosage to make considering the ratio among water, raw material and glycerin. during encapsulation, room temperature, humidity and machine temperature, speed both matter greatly. Besides good machine, good and professional operators are also required for such job. So a machine supplier with thorough training is very important. after soft gel capsule get formed and drop off from machine, it goes into tumble dryer which is the next step shaping& cooling.

1. Main Machine
Filling tolerance	<1.5%
Maximum single plunger dosage	2ml
Die Roll Size	80x100mm
Die Roll Speed	0~5rpm, Stepless adjustable
Main Motor Power	0.75 KW
Main Machine Power	3kW
Power	380V/50Hz/3 Phase
Overall Dimensions(L x W x H)	1650 X 800 x 2050mm
Weight	600kg
the cooling drums	Cooled by both water and air
Compressed air Consumption	50L/Hour
Gelatin Consumption	2.5L/Hour at 3 rpm
Material consumption	4.6L/Hour at 3 rpm
Lubrication oil consumption	70g/Hour at 3 rpm
the requirement for space	20m2
2. Tumble Dryer (2 baskets)
Basket size	580 X 900mm
Effective loading storage	> 20kg (each basket)
Motor Power	380V/50Hz/3 Phase;0.37Kw per motor
Fan Motor Power	380V/50Hz/3 Phase;0.32Kw per motor
Running speed	0-20rpm (variable frequency adjustable)
Weight	310Kg
3. Gelatin Melting& Service Tank
Electrical heating	380V/50Hz/3phase/4Kw
Structure	3 Layers (insulation and water heating jacket)
Top compressed air supply	0.1mpa
Stirring speed	51rpm
Motor power	380V/50Hz/3phase/0.55Kw
Temperature adjusting scope	20~99c
Weight	160kg
