Home >Products Catalog > 3 in 1 Metal Sheet Servo Coil Thin Plate Straightener Feeding Machine

3 in 1 Metal Sheet Servo Coil Thin Plate Straightener Feeding Machine

Supply Ability:	1 Set(s) per Month
Shipping:	Shippment
Payment Terms:	L/C, D/A, D/P, T/T, Other, Cash

Inquiry Now

Related products from verified members

Copper Polishing Machine for Gravure Cylinders

Price:30000.00 USD/Set

Min. Order:1 Set
Hot-dipped Galvanizing Wire Zinc-coating Line

Price:

Min. Order:1 Piece
Grassland Fence Machine

Price:100.00-1,000.00 USD/Piece

Min. Order:1 Piece
CNC Wire Mesh Machine

Price:400000.00 RMB/Set

Min. Order:1 Set
Horizontal Hydraulic Riveting Machine

Price:

Min. Order:
Ultrahigh Frequency Induction Heating Machine

Price:

Min. Order:1 Set
12-32inch 820mm diameter carbon steel pipe elbo...

Price:40,000.00-80,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Packaging details:wooden box Dimension:250032002000mm Delivery detail:telephone conversation

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Jieda
voltage: 380V/Customize
weight: 5T
Condition: New
Model Number: LMC-400
Coil weight: 3T
Material width: 0-400mm
Material thickness: 0.3-3.2mm
Feeding pitch: No limited
Straightening speed: 0-16m/min
Straightener roller: Upper6/lower5
Dimenison: 2500*3200*2000mm
Color: Customize
Coil.I.D: 508mm
Coil.O.D: 1400mm

Specifications

Product Application

3 in 1 feeding machine is widely used in punching machine automation equipment, involving dozens of automobile manufacturing industry, hardware, electronics, it sets the uncoiling, straightening,feeding the materials to combine one function, which has high precision, high stability, long service life, and labor saving, time saving and cost saving. Help the company to reduce labor intensity, reduce costs

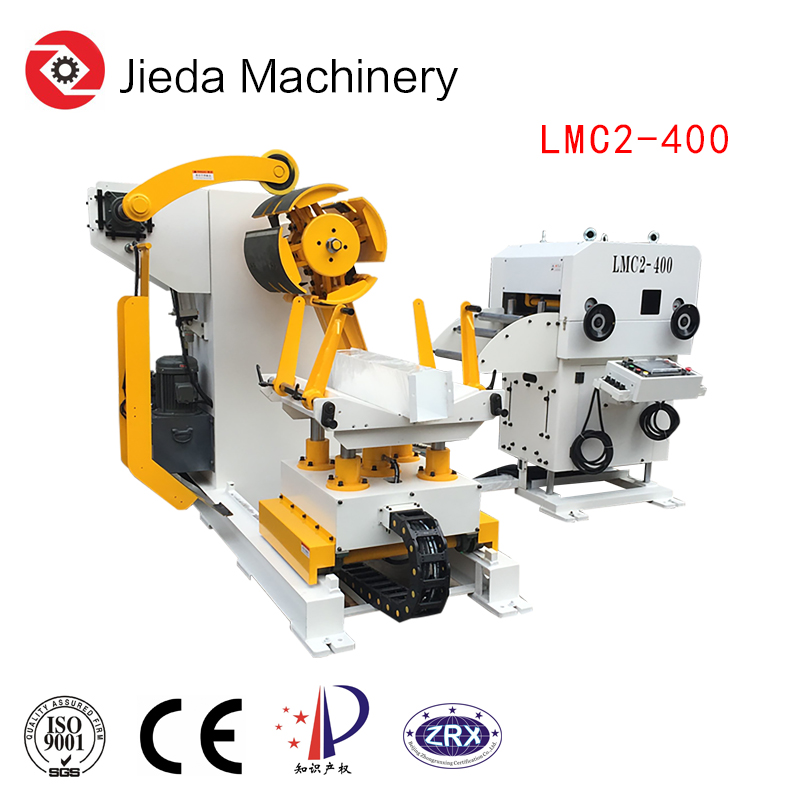

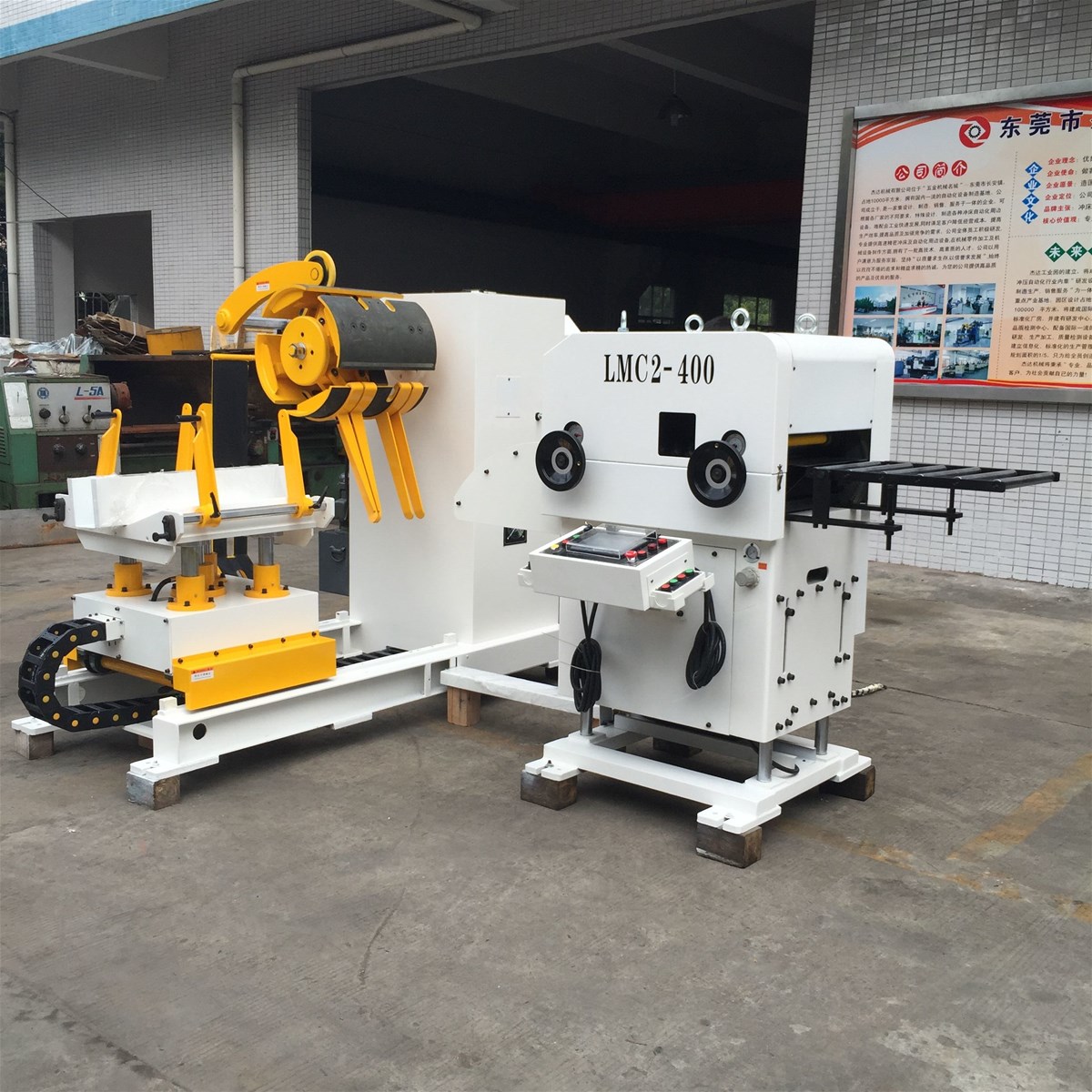

this is the LMC2-400, this machine is suitable for 0.3-3.2 mm thickness, 50-400mm width, coil weight is 3000kg, the uncoiler expansion is oil pressure expansion,

Dear customer, If this model is not able to meet your requirements, please contact us and the customer service personnel will recommend other models suitable for you

LMC2 3in1 feeder straightener uncoiler machine specification
Model	LMC2-400	LMC2-600	LMC2-800
Material width(mm)	50-400	50-600	50-800
Material thickness(mm)	0.3-3.2	0.3-3.2	0.3-3.2
Coil weight(kg)	3000	5000	8000
Coil.I.D(mm)	508	508	508
Coil.O.D(mm)	1200	1200	1200
Feed pitch(mm)	800	800	800
Line speed(m/min)	16	16	16
Roll number	Upper6/lower5	Upper6/lower5	Upper6/lower5
Feed roll number	1	1	1
Main motor	AC2.9	AC4.4	AC4.4
Mandrel expansion	Hydraulic	Hydraulic	Hydraulic
Reel motor(kw)	1.5	3.7	3.7
Power(v)	380	380	380
Air pressure	0.49	0.49	0.49
