Roller Furnace 35M Roller Furnace for Mosaic

FOB Price: 500000.00 - 800000.00 USD/Set
Shipping: Shanghai
Payment Terms: L/C, D/P, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China

Quick Details

  • Shape: Irregular
  • Feature: Parquet
  • Color Family: Mixed
  • Material: Metal
  • Brand Name: Qianjin
  • Model Number: GDY-200-11
  • After-sales Service Provided: Overseas third-party support available
  • Warranty: one year
  • Usage: Heat Treatment Furnace
  • Condition: New
  • Certification: ISO
  • Weight: 24T
  • Dimension(L*W*H): 35000x2100x1500mm
  • Power(W): 200kw
  • Voltage: 380v
  • Type: Other

Specifications

   Roller furnace 35M roller furnace for mosaic

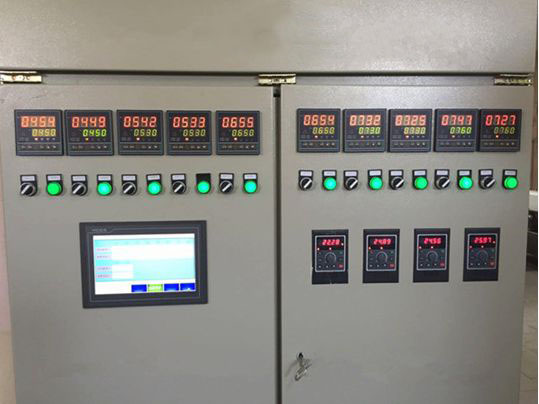

   Presently the international department of Qianjin enterprise supplies 35M electric heating roller furnace with preferential price, the size of furnace is: 35000X2100X1400mm, inside width of furnace is 1300mm, effective height is 200mm, transmission is helical gear, the diameter of roller ( ceramic tube ) is 50mm,the motor uses variable frequency motor, heating element uses electric resistance wire which is distributed for the installation up and down, it can make furnace box temperature become uniform and temperature rise fast, electrical appliances is automatically controlled, PID adjustment, rated temperature is 1100,production cycle is adjustable,furnace is made of light-weight brick, fiber heat preservation cotton is used externally, absolute heat preservation, it is mainly used for ceramic products, powder materials and so forth. this equipment uses advanced and reasonable design which has the biggest advantage of more advanced and energy-saving comparing with the equipment in this industry, energy-saving is obvious, electricity consumption is reduced by 30%, the design is mainly characteristic of energy-saving,environmental protection and high production, it is easy to use and operate,excellent for thermal insulation. The quality can be guaranteed with one year of warranty period, any quality problem during the warranty period will be handled by the company,welcome to call us for the inquiry and negotiation, the customization of our product can be made on the basis of  different
Requirements.

Roller Furnace 35M Roller Furnace for Mosaic
