HD 1080P IR Mini Bus & Truck Backup Rearview Camera from Topccd (TOP-633R)

FOB Price:	10.00 - 50.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	white box or custom box

Quick Details

Warranty: 2Years
Brand Name: TOPCCD
Car Make: Universal
Voltage: DC 24V
Type: Reverse Camera
Model Number: TOP-633R
Resolution: 500TVL,600TVL,700TVL,960P,1080P
Waterproof: IP69K
Viewing angle: 120 degree
IR LEDs: 12pcs
Microphone: Yes
Heater: Yes
More functions: Support nomral/mirror image switching
Tilt Adjusting: 5Degree and 15Degree adapter (optional)
Shell Material: Metal vandal-proof housing
WDR,SLD,motion detection,2D/3D noise reduction: Yes

Specifications

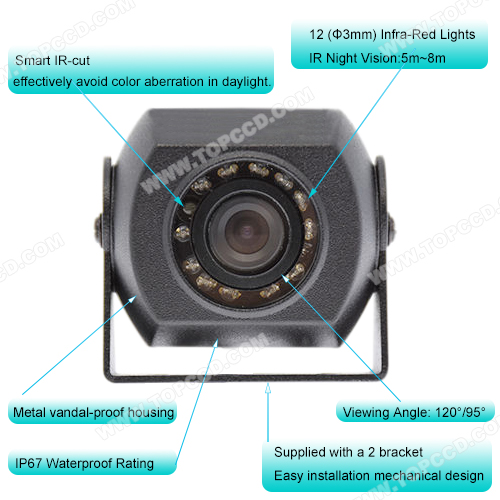

. HD 1080P High Quality 120 degree wide Bus Truck Van night vision IP69K waterproof cameras
. Model: TOP-633R
. Video signal: AHD/HD, internal
. Image Sensor: 1/3" 1.3MP CMOS Sensor, 1280*960 Resolution
1/3" 2MP CMOS Sensor, 1920*1080 Resolution
. Signal System: NTSC / PAL System optional
. Viewing angle: 95 Degree / 3.6mm lens (Default)
120 Degree / 2.8mm lens (Optional)
. Night Vision: 12pcs IR LEDs
. Night Vision Distance: 40ft
. Minimum Light: 0 Lux(LED on)
. Scanning System: Progressive Scan
. S/N Ratio: Better than 50dB
. Video output: 1Vp-p,75Ω,AHD/HD
. Waterproof: IP67K
. Built-in IR Cut Filter: Optional
. Vibration Rate: 10G
. Built-in Microphone: Optional
. Built-in Heater: Optional
. with WDR,SLD,motion detection,2D/3D noise reduction,etc.
. with rubber gasket base for vehicle waterproof protection
. Connectors: 4PIN Female/BNC/RCA optional
. Shell Material: Metal vandal-proof housing
. Easy installation mechanical design

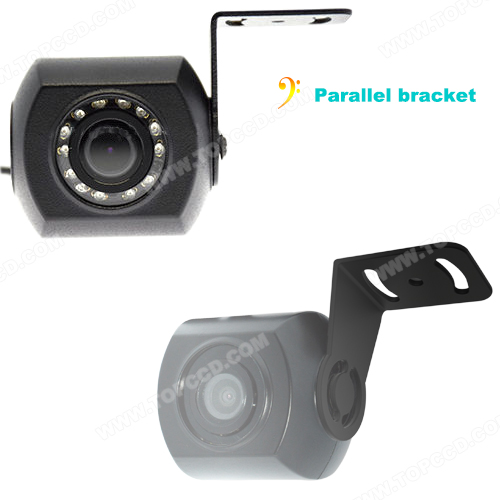

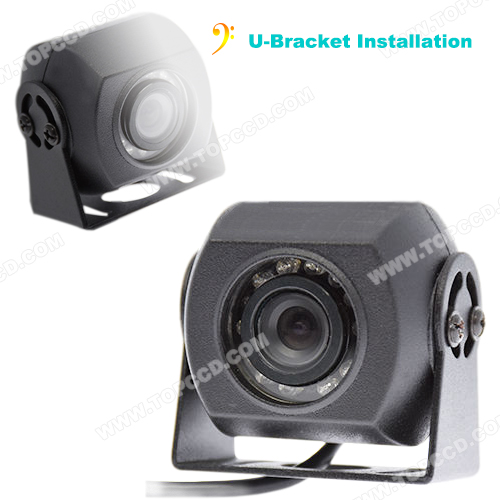

. Supplied with a 2 bracket (U-bracket and Parallel bracket)
. Casing colors: Black
. Image: Mirror / non-Mirror (Default Mirror image)
. Normal/Reverse Switch: Optional
. Suit for front view/rear view position installation
. Operating Temperature: -20℃~+75℃ RH95% Max.
. Storage Temperature: -30℃~+85℃ RH95% Max.
. Power consumption: <150Ma
. Voltage Input: DC12V
. Dimension: 54(L)*40(W)*55(H) mm
. Mounting: Front camera/Rear camera,Suitable for all applications including buses,mini vans,caravans,trailers,trucks,agriculture equipment and much more.
HD 1080P IR Mini Bus and truck backup Rearview camera from Topccd TOP633R
