Fiat Ducato Third Brake Light Reversing Backup Camera from Topccd (TOP-971)

FOB Price:	10.00 - 50.00 USD/Piece
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	White boxes

Quick Details

Warranty: 2Years
Brand Name: TOPCCD
Function: Bluetooth-enabled,DVD/VCD,Touch Screen
Type: Gps Navigator
Combination: 11
Model Number: TOP-971
Use: Automotive
Resolution: 420TVL,500TVL,600TVL,700TVL
Waterproof: IP68K
Viewing angle: 160 degree
IR LEDs: 6pcs
Microphone: Yes

Specifications

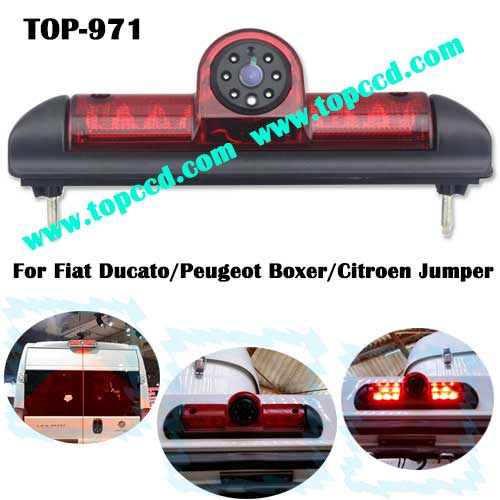

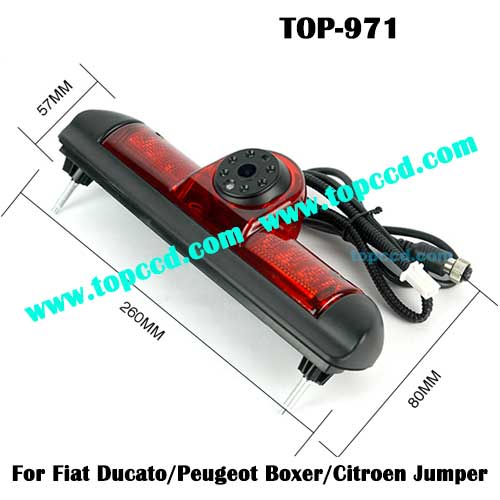

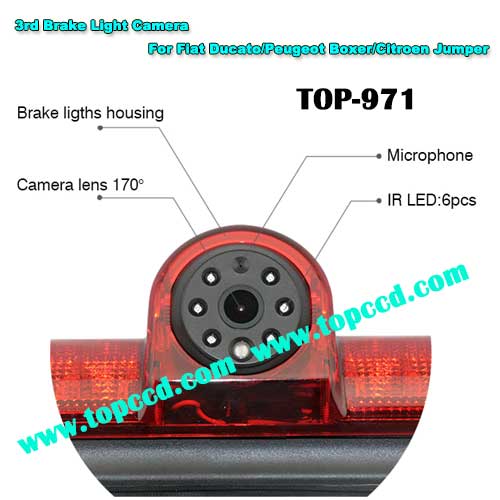

. 3rd Brake Light Camera for Fiat Ducato/Peugeot Boxer/Citroen Jumper
. Model: TOP-971
. No Holes Drilled,completely replace the original 3rd Brake lights
. Use original factory LED brake light
. Constructed from high-grade plastic
. Image Type: 1/3" NVP SONY CCD Sensor 500TVL,600TVL,700TVL Optional
1/4" Sharp CCD Sensor 420TVL
1/3" Color CMOS Chips PC1058,PC3089,PC7070 Optional
. Signal System: PAL / NTSC System optional
. View Angle: 160
. Night Vision: 6pcs High Brightness LEDs light
. Night Vision Distance: 35ft
. Usable Illumination: 0.01 Lux
. Waterproof & Dustproof Resistance: IP68k
. Built-in Microphone: optional
. White Balance: Auto
. Exposure Control: Auto
. Gain Control: Auto
. Shutter Mode: Electronic Rolling Shutter
. Shutter speed: 1/50, 160-1/100,000 sec.
. Frame Rate(fps): 60
. Gamma value: 0.45
. S/N Ratio: 46.5dB
. Video output: 1Vp.P 75ohm
. Connectors: 4PIN,RCA video adapter included
. Image: Reverse / Non-reverse image optional (Default mirror image)
. Support Normal / Reversing Image switching: N/A
. Support Parking line off/on Switching: N/A (Default with parking line)
. Operating Temperature: -20~+75 RH95% Max.
. Storage Temperature: -30~+85 RH95% Max.
. Includes 10m 4pin Extension cable
. Input Voltage: DC12V

Package is complete with:
1 X 3rd brakelight camera
1 X 10m video extension cable (4-PinF/4PinM)
1 X 0.5m 4 pin Male screw-on to RCA convert cable
1 X 1.5m power supply cable
1 X kit for installation
1 X White box packing(Neutral)
Fiat Ducato Third Brake Light Reversing Backup Camera from Topccd TOP971
