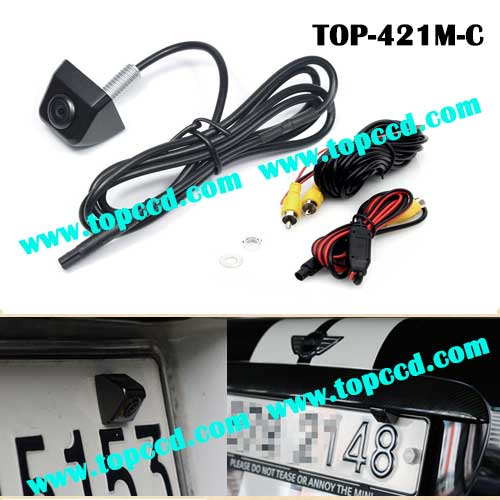

MINI Universal Car Rear Obversation Reversing Backup Camera from Topccd (TOP-421M-C)

FOB Price:	5.00 - 30.00 USD/Piece
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Rear view camera with built-in camera+DVR

Price:

Min. Order:10 Sets
parking camera

Price:2.00-10.00 USD/Piece

Min. Order:10 Pieces
Car Parking Sensor with Camera

Price:

Min. Order:1 Set
Wireless Parking Sensor WRD-018C4

Price:1.00-20.00 USD/Set

Min. Order:20 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	White boxes or color boxes,50pcs per carton

Quick Details

Warranty: 2Years
Brand Name: TOPCCD
Car Make: Universal
Voltage: DC 12V
Type: Reverse Camera
Model Number: TOP-421M-C
Resolution: 420TVL,600TVL
Waterproof: IP68K
Viewing angle: 170 degree
More function: Support normal/mirror image switching

Specifications

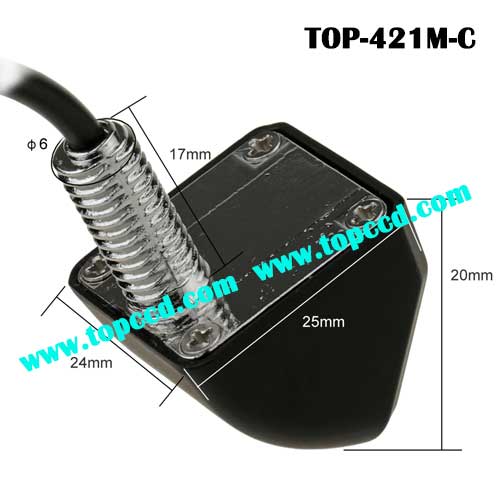

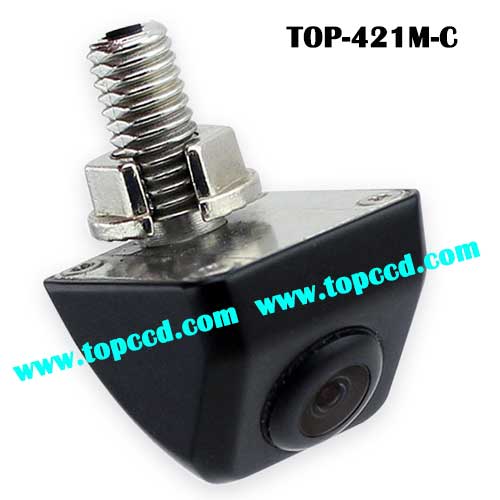

. Universal Parking Backup Camera whith 6mm-diameter Threaded Rod
. Model: TOP-421M-C
. Image Type: 1/3" Color CMOS
. Effective Pixels: 976x592(PC1058 chip),756x504(PC3089 chip),648x488(PC7080 chip)....Etc optional
. Signal System: NTSC / PAL System optional
. Resolution: 480TVL - 700TVL
. Video System: Internal
. Viewing Angle: 170 degree
. Lens: 2.21mm (4 Layer Glass Lens)
. Usable Illumination: 0.01 Lux
. White Balance: Auto
. Exposure Control: Auto
. Gain Control: Auto
. Shutter Mode: Electronic Rolling Shutter
. Shutter speed: 1/50, 160-1/100,000 sec.
. Frame Rate(fps): 60
. Gamma value: 0.45
. S/N Ratio: 46.5dB
. Video output: 1Vp.P 75ohm
. Waterproof Resistance: IP68K
.Connectors: RCA / 4PIN optional
. Housing material: Zinc Alloy Metal
. Casing colors: Black
. Image: Reverse / Non-reverse image optional (Default mirror image)
. Support Normal / Reversing Image switching: Optional
. Support Parking line off/on Switching: Optional (Default with parking line)
. Operating Temperature: -20~+75 RH95% Max.
. Storage Temperature: -30~+85 RH95% Max.
. Power Consumption: <50mA@12V
. VOltage Input: DC9V/12V
MINI Universal Car Rear Obversation Reversing Backup Camera from Topccd TOP421MC
