Qinhuangdao Lingdong Conveyor Belt Co., Ltd.
China Manufacturer with main products: Woven Corrugator Belt, Filter Cloth, Needle Corrugator Belt, Filter Bag, Air Slide Fabric, Needle Punched Felt, Airslide Canvas, Air Slide... |

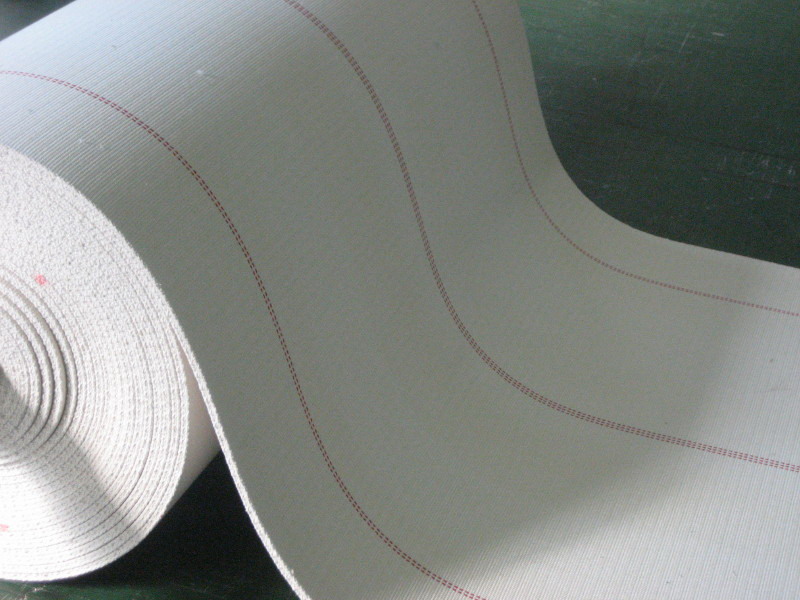

High Speed Woven Corrugator Belt
| FOB Price: | 3000.00 - 5000.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Pair(s) per Month |
| Payment Terms: | L/C, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
Quick Details
- Brand Name: ld
- material: sythetic fiber
- Condition: new
- type: woven
- Color: white
Specifications
High speed corrugator belts
Corrugator belts have been specially developed for the transport of board and optimisation of the drying process.They resist the stress continuously and achieve as long a life as possible.The patented weave structure guarantees correct gluing and fast drying of the board. The use of high quality PET-fibres enables the belt to shed very rapidly the moisture absorbed during the drying proce
High speed corrugator belts has three layers. the weaving structure of surface is not the same as the middle and low speed corruagator belt weaving structure.this weaving structure is designed for the high speed running.the material in the surface
Is not the same as the core in order to increase the frictuion function.
High speed corrugator belts
Material: 100%PET
Apply speed:240m/min.
Thickness Tolerance+/-0.5mm 9mm
Width Tolerance <0.5% 1200-2900mm
Heat resistance:
under 150, accepts long time pressure
under 200, accepts long time pressure
250 is melting point
Tension:Chaine 18KN/40mm
Air permeability:1.5*10cm/(cm.min.Kpa)
Min winding radius:R70(mm)
Life:700 working days
Weight:7.00.3kg/m
