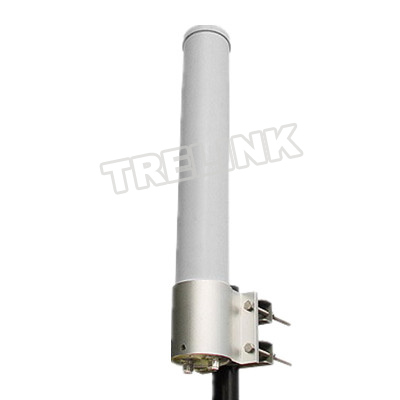

5 GHz 13 DBi Dual Polarity MIMO Omni Directional WiFi Antenna
| FOB Price: | 1.00 - 99.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: TreLink
- Input connector type: 2*N Female
- Lightning protection: DC Ground
- Gain(dBi): 13
- Frequency range(MHz): 5150-5850 MHz
- Model Number: TLOD-5158-13VH-2N
Specifications
| Electrical Specifications | |
| Model | TLOD-5158-13VH-2N |
| Frequency Range | 5150-5850 MHz |
| Gain | 13 dBi |
| VSWR | 2.0:1 |
| Polarization | Horizontal and Vertical |
| Horizontal Beamwidth | 360 |
| Vertical Beamwidth | 7 |
| F/B Ratio: | >30 dB |
| Cross-Polar Ratio: | >20 dB |
| Input Impedance | 50 |
| Maximum Power | 100W |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
| Connector | 2*N Female |
| Antenna Dimention(diameter*length) | 62*550 mm |
| Weight | 2 kg /4.4 lb |
| Radome Material | UV-PVC |
| Wind Velocity | 210 km/h |
| Working Temperature | -40~+65 |
| Mounting Pole | 40-60 mm |
