Hefei Meyer Optoelectronic Technology Inc.
China Manufacturer with main products: Color Sorter, Optical Sorter, Color Sorting Machine, Sortex, x-Ray Inspection Machine, Dental CT |
Home
>Products Catalog > optical sorter > Broad Beans Color Sorter Fava Beans Optical Sorting Machine from China

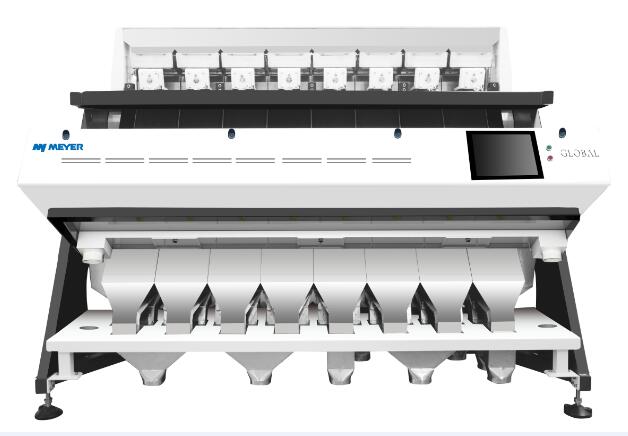

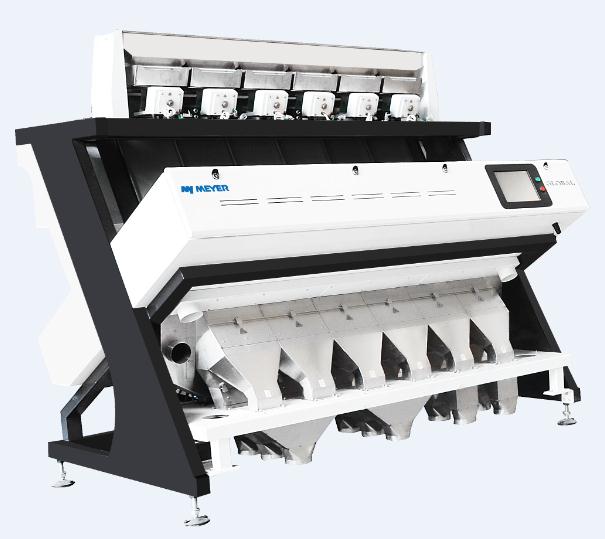

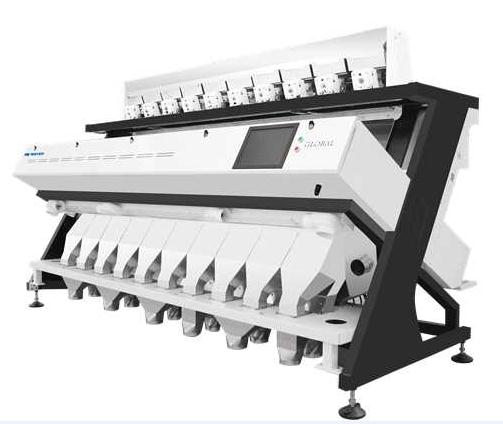

Broad Beans Color Sorter Fava Beans Optical Sorting Machine from China
| FOB Price: | 10000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 6,000 Set(s) per Year |
| Shipping: | FOB,CIF,etc |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | Wooden box and suitable covers |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: Grain Processing Equipment
- Brand Name: Color Sorter CG
- Voltage: 180-240V/50-60Hz
- Condition: New
- Model Number: Color Sorter CG
- Application: tea,rice,seeds,quinoa,beans,nuts,dried fruit,dried vegetables
- Capacity: 1-20t/hr
- Accuracy: 90-99.999%
- Power: 1-6kw
Specifications
Broad beans color sorter fava beans optical sorting machine from China
1. Multi-type chutes with anodizing treatment to ensure smooth material flow,improve machine sorting performance,meet different requirement from customers.
2. High efficient and durable LED lamps ensures long life span of the sorter.
3. True RGB controllable background assembly applied for cleaning and grading of muitiple materials.
4. Compound image algorthm realizes intelligent and accurate identification from color,texture,shape,size and material.
5. High definition low distortion lens " copys" the real information into machine visual system.
6. 5400 px RGB trichromatic CCD sensor & Infrared CCD sensor analyze full spetrum from the material.
7. High-end imported ALTERA " Cyclone" IV generation FGPA chips brings huge speed capacity of data processing and exchange max as100 mega byte per second.
8. 15" LCD touch screen and Linux based system equipped with simplified interface and remote control and mobile devices control Only for easy operation.
9. Magnev high frequency ejectors ensures the quality of accepted products after sorting,reduce the rate of good kernel inside of rejected products and consumption of compressor.
10. Excellent dust collecting design,reduces machine failure rate and maintenance cost,ensures stability of persistent operation during sorting.
11. Food grade water proof vacuum inner package and seaworthy wooden box ensure safety of the cagos delivery from whatever tremendous change of sea shipping conditions meet.
| Modelos | Canales | Boder(kw) | Voltaje | Presion de Aire(Mpa) | Consumo de Aire(m3/min) | Dimension(mm) | Peso(kg) |
| CG4 | 240 | 2.6 | 180-240V/50-60Hz | 0.6-0.8 | 4.0 | 1765*1570*2142 | 1050 |
| CG6 | 360 | 3.2 | 180-240V/50-60Hz | 0.6-0.8 | 5.5 | 2400*1570*2142 | 1450 |
| CG8 | 480 | 3.6 | 180-240V/50-60Hz | 0.6-0.8 | 6.5 | 2950*1570*2142 | 1800 |
| CG10 | 600 | 4.2 | 180-240V/50-60Hz | 0.6-0.8 | 8.0 | 3700*1570*2142 | 2200 |
| CF1+ | 60 | 1.0 | 180-240V/50-60Hz | 0.6-0.8 | 1.0 | 890*1570*2142 | 550 |
| CF3+ | 180 | 1.8 | 180-240V/50-60Hz | 0.6-0.8 | 3.0 | 1455*1570*2142 | 940 |
| CF5+ | 300 | 2.4 | 180-240V/50-60Hz | 0.6-0.8 | 4.5 | 2075*1570*2142 | 1330 |
| CF7+ | 420 | 3.5 | 180-240V/50-60Hz | 0.6-0.8 | 6.0 | 2625*1570*2142 | 1650 |

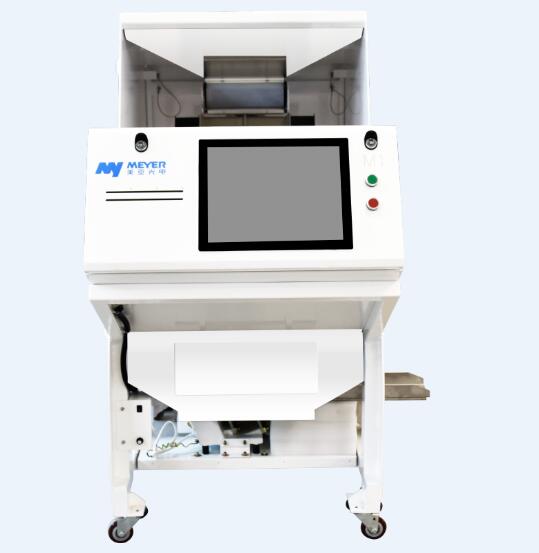

| M1 | 60 | 1.0 | 180-240V/50-60Hz | 0.6-0.8 | 1.0 | 767*1614*1471 | 340 |
