Trelink Communication Co., Ltd.
China Manufacturer with main products: WLAN/WiFi ANTENNAS, WIMAX.WIRELESS ACCESS ANTENNAS, GSM/ CDMA/3G ANTENNAS, LTE/4G ANTENNAS, MIMO ANTENNAS, FRID ANTENNAS, VHF/UHF ANTENNAS,... |

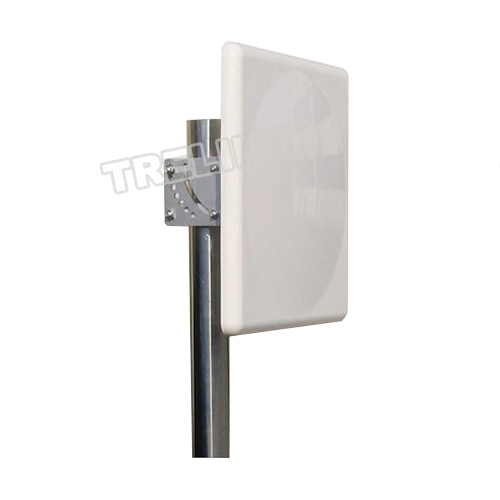

900MHz 9 DBi Left Hand Circular Polarized Panel Antenna
| FOB Price: | 1.00 - 99.00 USD/Piece |
|---|---|
| Shipping: | by sea/air |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: TreLink
- Input connector type: N Female
- Lightning protection: DC Ground
- Gain(dBi): 9.5 dBi
- Frequency range(MHz): 902-928 MHz
- Model Number: TLPA-900-9-60L
Specifications
| Electrical Specifications | |
| Model | TLPA-900-9-60L |
| Frequency Range | 902-928 MHz |
| Gain | 9.5 dBi |
| VSWR | 1.5 |
| Polarization | Left Circular Polarization |
| Horizontal Beamwidth | 68 |
| Vertical Beamwidth | 62 |
| F/B Ratio: | >20 dB |
| Input Impedance | 50 |
| Maximum Power | 50 W |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
| Connector | N Female |
| Antenna Dimension | 305*305*25 mm |
| Weight | 0.95 kg /2.1 lb |
| Radome Material | Weatherproof ABS |
| Wind Velocity | 210 km/h |
| Working Temperature | -40~+65 |
