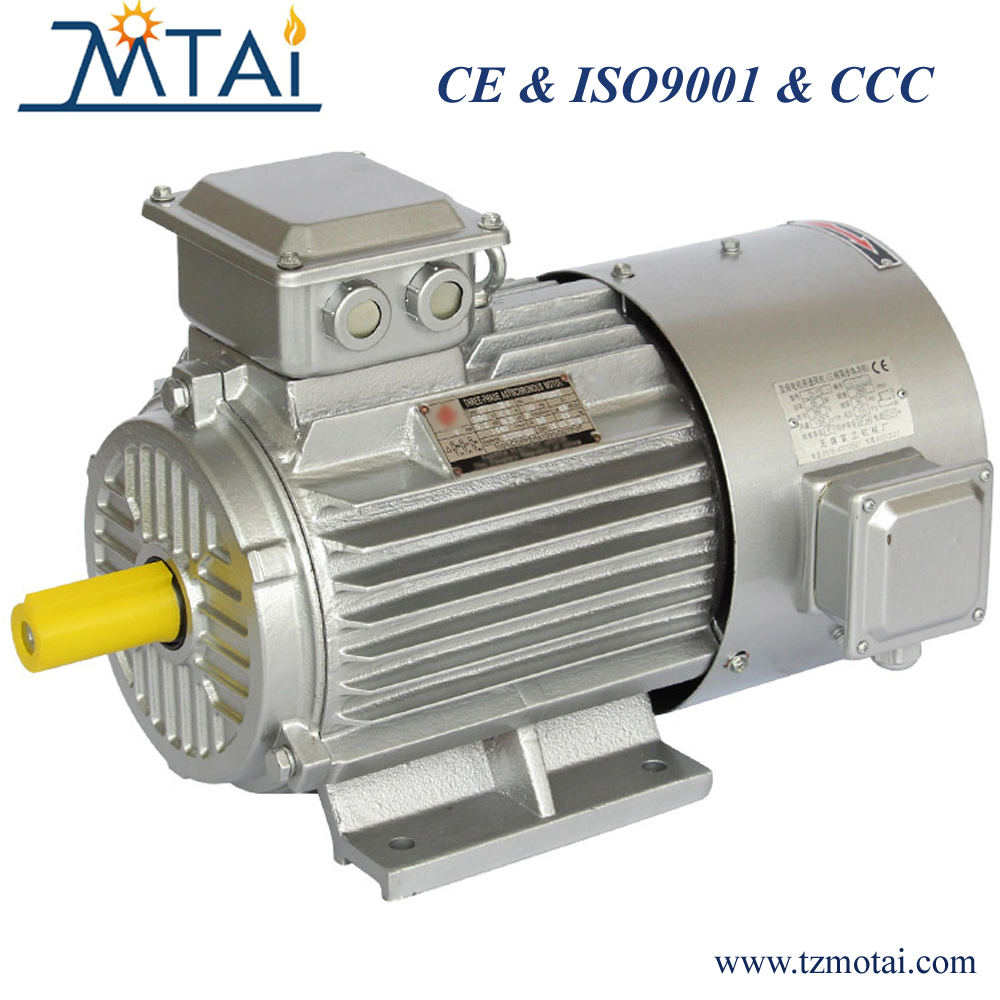

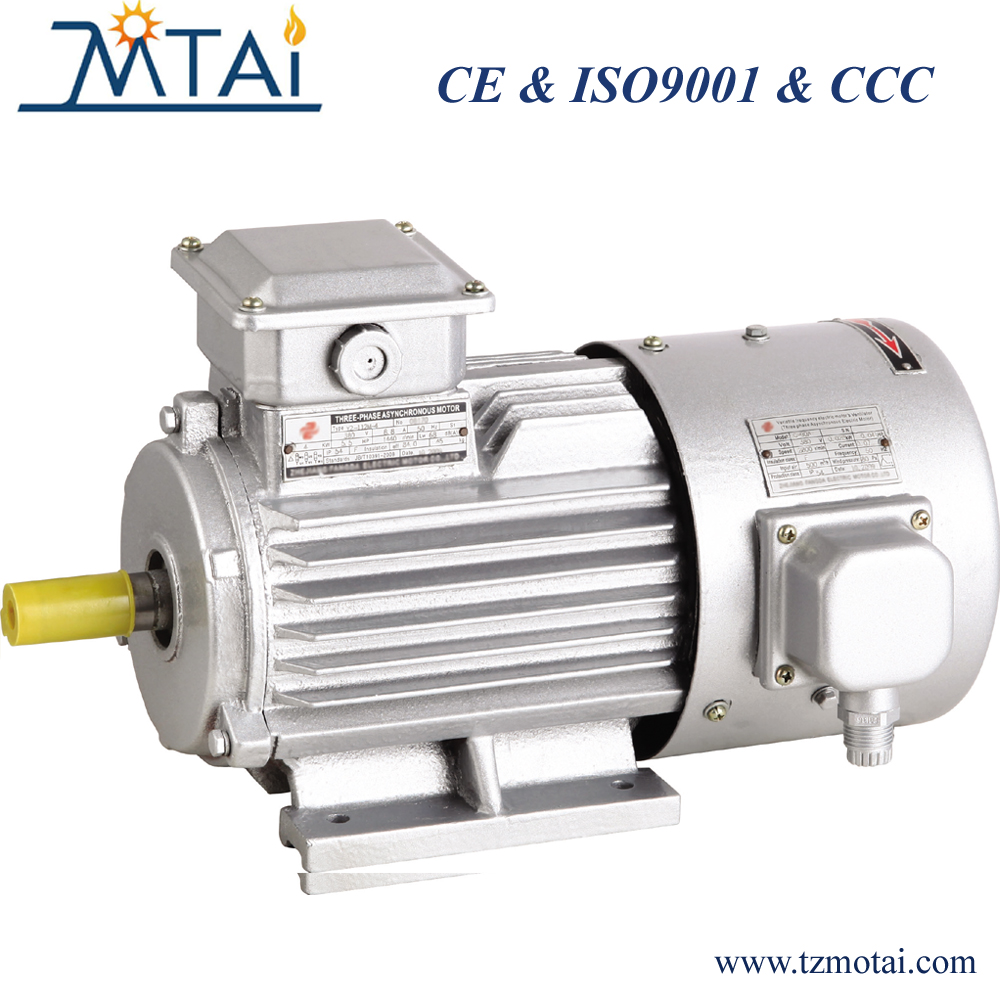

YVF2 Series Converter-Fed Variable Frequency Three-Phase Asynchronous Motor

FOB Price: 70.00 - 3000.00 USD/Piece
Supply Ability: 1,000 Piece(s) per Day
Shipping: By sea/By Air/By Road
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Export-Standard Package

Quick Details

  • Certification: CCC,CE,ISO9001
  • Protect Feature: Totally Enclosed
  • Output Power: 0.55KW~355KW
  • Type: Asynchronous Motor
  • Brand Name: TZMOTAI
  • Efficiency: IE 1
  • Phase: Three-phase
  • Frequency: 50HZ/60HZ
  • Model Number: YVF2-80~YVF2-355
  • Core Wire: Copper Wire
  • Constant Torque Frequency Range: 3Hz~50Hz
  • Number of Poles: 2,4,6,8,10p
  • Motor Housing: Cast Iron
  • Power Range: 0.55kw~355kw
  • Constant Power Frequency Range: 50Hz~100Hz
  • Insulation: F class
  • Protection: IP55
  • Specification: Converter-Fed Variable Frequency
  • Memo: Motor Without Converter

Specifications

YVF2 Series Converter-Fed Three-Phase Asynchronous Motor

YVF2 series variable frequency motor Is a kind of speed regulation motors working with frequency converter.Which is fitted with ventilation fan which provide better cooling effect to ensure motors running at various speed. To be convenient for users, dimensions and rated
Output of YVF series motors are same as those of Y series motors, also in conformity with
IEC60072-1: 1991.
YVF series variable frequency motor are widely used for driven equipment in need of
Speed-regulation in light industries, metallurgy industries, textile industries, printing and dyeing industries, chemical industries, transportation and machine tool industries, etc. It is one of the ideal power source of velocity modulation.

Frame: 80 ~ 355 Power: 0.55 ~355KW

Reference frequency: S50Hz Insulation class: F

Frequency range: (3) 5 100Hz reference pole number: 4P

Applicable to: metallurgy, chemical, textile, pharmaceutical, printing, packaging, food and other industries machinery, fans, pumps, transmission line automation equipment and machine tools (such as CNC machine tools, machining centers) and other fields.

Features: <1> stepless speed regulation, wide speed range

              <2> System speed performance is good, energy saving effect is remarkable

              <3> the use of high-frequency resistance to the impact of high-voltage insulation materials and technology

              <4> independent fan forced ventilation cooling

Performance data

MODEL Power(KW) Rated current(A) Rated torque(NM) Constant torque frequency range(HZ) Constant power frequency range(HZ)
Synchronous speed 3000r/min
YVF2-80M1-4 0.55 1.6 3.8 5~50 50~100
YVF2-80M2-4 0.75 2.0 5.2
YVF2-90S-4 1.1 2.9 7.5
YVF2-90L-4 1.5 3.7 10
YVF2-100L1-4 2.2 5.2 14.9
YVF2-100L2-4 3 6.8 20
YVF2-112M-4 4 8.8 26.5
YVF2-132S-4 5.5 11.8 36.5
YVF2-132M-4 7.5 15.6 50
YVF2-160M-4 11 22.3 72
YVF2-160L-4 15 30.1 98
YVF2-180M-4 18.5 36.1 120
YVF2-180L-4 22 42.7 143
YVF2-200L-4 30 57.6 195
YVF2-225S-4 37 69.9 240 3~50
YVF2-225M-4 45 84.7 291
YVF2-250M-4 55 103 355
YVF2-280S-4 75 140 484
YVF2-280M-4 90 167 580
YVF2-315S-4 110 201 710
YVF2-315M-4 132 240 852
YVF2-315L1-4 160 288 1032
YVF2-315L2-4 200 359 1290

Component Parameters related to variable frequency motors

Motor Frame  80 90 100 112 132 160 180 200 225 250 280 315
Cooling fan Power 60 (10)* 60 (25)* 60 (25)* 60 (25)* 40 40 230 230 230 230 370 500
Voltage Single phase 220V or three phase 220V, 380V 1-PH220V or 3-PH220V, 380V Three-phase 380V 3-PH380V
Brake Brake torque 7.5 15 30 40 75 150 200 300 450 - - -
Excitation power 50 60 80 110 130 150 150 200 200 - - -
Excitation voltage DC24V,AC220V,AC380V - - -
Photoelectric encoder Incremental encoders

Installation structure type

Common installation structure type, and the applicable frame size is shown in the table below

Frame number Basic installation structure Derived installation type
B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36
80~160
180~280 - - - - - - - -
315 - - - - - - - - -

Note: "" indicates the type of structure that can be manufactured

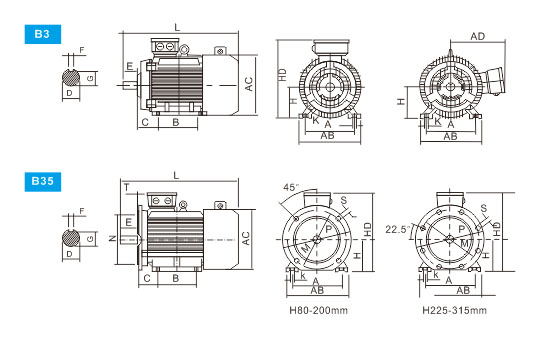

Appearance and Installation Dimensions
YVF2 Series ConverterFed Variable Frequency ThreePhase Asynchronous Motor


Frame                          Installation dimensions           Dimensions
A B C D E E G H M N P R S T K AB AC AD HD L
80M 125 100 50 19 40 6 15.5 80 165 130 200 0 12 3.5 10 165 175 145 220 370
90S 140 100 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 155 250 380
90L 140 125 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 155 250 410
100L 160 140 63 28 60 8 24 100 215 180 250 0 15 4 12 205 215 180 270 465
112M 190 140 70 28 60 8 24 112 215 230 250 0 15 4 12 230 240 190 300 480
132S 216 140 89 38 80 10 33 132 365 230 300 0 15 4 12 270 275 210 345 530
132M 216 178 89 38 80 10 33 132 365 250 300 0 15 4 12 270 275 210 345 570
160M 254 210 108 42 110 12 37 160 300 250 350 0 19 5 15 320 330 255 420 660
160L 254 254 108 42 110 12 37 160 300 250 350 0 19 5 15 320 330 255 4720 715
180M 279 241 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 280 280 455 775
180L 279 279 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 280 280 455 815
200L 318 305 133 55 110 16 49 200 350 300 400 0 19   19 395 420 305 505 850
225S 356 286 149 60 140 18 53 225 400 350 450 0 19 5 19 435 470 335 560 885
225M 356 311 149 60 140 18 53 225 400 350 450 0 19 5 19 435 470 335 560 915
250M 406 349 168 65 140 18 58 250 500 450 550 0 19 5 21 490 510 370 615 980
280S 457 368 190 75 140 20 67.5 280 500 450 550 0 19 5 21 550 580 410 680 1085
280M 457 419 190 75 140 20 67.5 280 500 450 550 0 19 5 21 550 580 410 680 1135
315S 508 406 216 80 170 22 71 315 600 550 660 0 24 6 28 635 645 530 845 1285
315M 508 457 216 80 170 22 71 315 600 550 660 0 24 6 28 635 645 530 845 1395
315L 508 508 216 80 170 22 71 315 600 550 660 0 24 6 28 635 645 530 845 1395

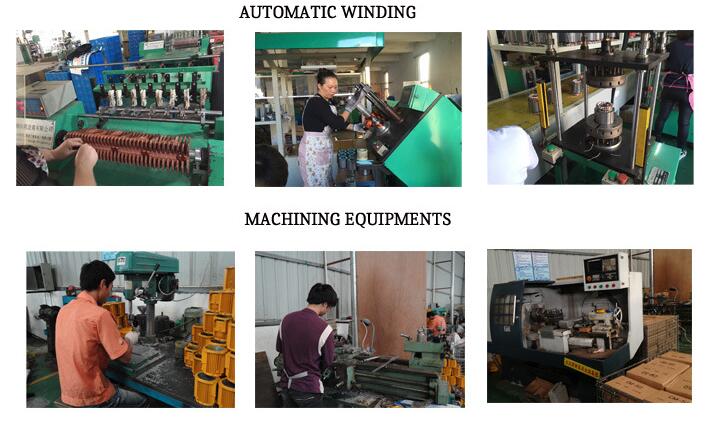

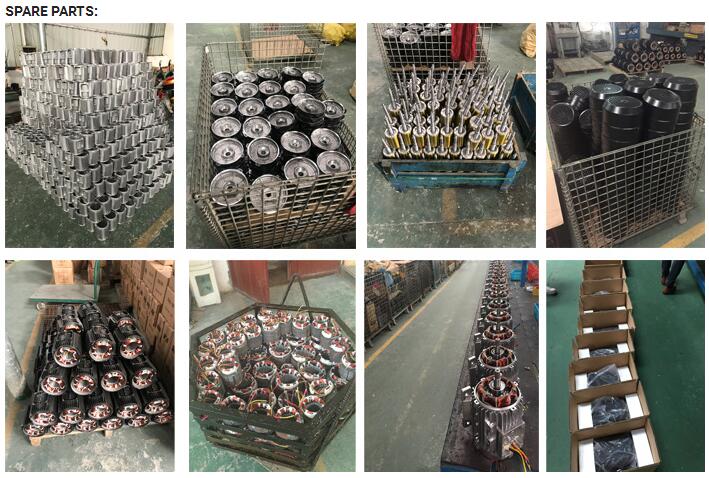

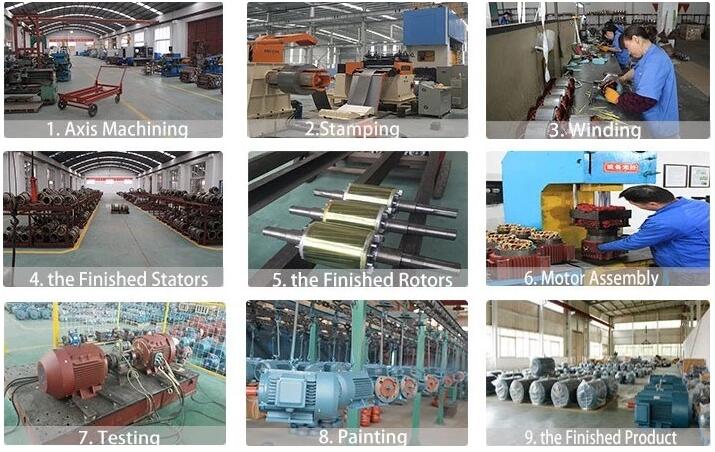

PRODUCTION PROCESSING:
YVF2 Series ConverterFed Variable Frequency ThreePhase Asynchronous Motor
YVF2 Series ConverterFed Variable Frequency ThreePhase Asynchronous Motor
YVF2 Series ConverterFed Variable Frequency ThreePhase Asynchronous Motor
ADVANTAGE:
Pre-sales service:

We are a sales team, with all technical support from engineer team.
We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
We cooperate with customer to design and develop the new products. Provide all necessary document.


after-sales service:
We respect your feed back after receive the motors.
We provide 1years warranty after receipt of motors..
We promise all spare parts available in lifetime use.
We loge your complain within 24 hours.
