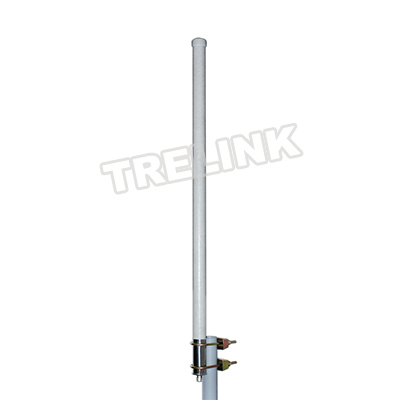

800-900 MHz 8 DBi High Gain Fiberglass Omni Directional Antenna

FOB Price:	1.00 - 99.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

800900 MHz 8 dBi high gain Fiberglass Omni directional Antenna

Electrical Specifications
Model	TLOD-890-8V
Frequency Range	806-960 MHz
Gain	8 dBi
VSWR	<1.5:1
Polarization	Vertical
Horizontal Beamwidth	360
Vertical Beamwidth	16
Input Impedance	50
Maximum Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	N Female
Antenna Dimension(diameter*length)	20*1780 mm
Weight	2.1 kg /4.6 lb
Radome Material	Fiberglass
Wind Velocity	210 km/h
Working Temperature	-40~+65
Mounting Pole	30-50 mm
