Q235 Painted Mobile Mason Scaffolding Ladder Frame for Construction

FOB Price:	2.00 - 10.00 USD/Piece
Supply Ability:	250 Ton(s) per Month
Shipping:	after receive the advanced payment,the delivery time is about 25-30 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Packaging:Bundles;Steel Pallet or According to Customer Request

Quick Details

Brand Name: NO
Materials: Q235 or accordfing to your need
Supporting Mode: Frame Scaffolding System
Lapping Form: welding
material: Q235 or accordfing to your need
Model Number: Frame Scaffolding Part
Name: Q235 Painted Mobile Mason Scaffolding Ladder Frame for Construction
Item: JSMF-006
Width: 914mm
Height: 1700mm
Main Pipe Diameter: 42mm,25mm
Thickness: 2.5mm,1.5mm
Weight: 13.0kg
Surface Coating: Hot dipped galvanized,electric galvanized,painting
Standard: EN74/BS1139/AS1576
Application: Frame scaffolding part

Specifications

Frame Scaffolding Instruction:

Description:

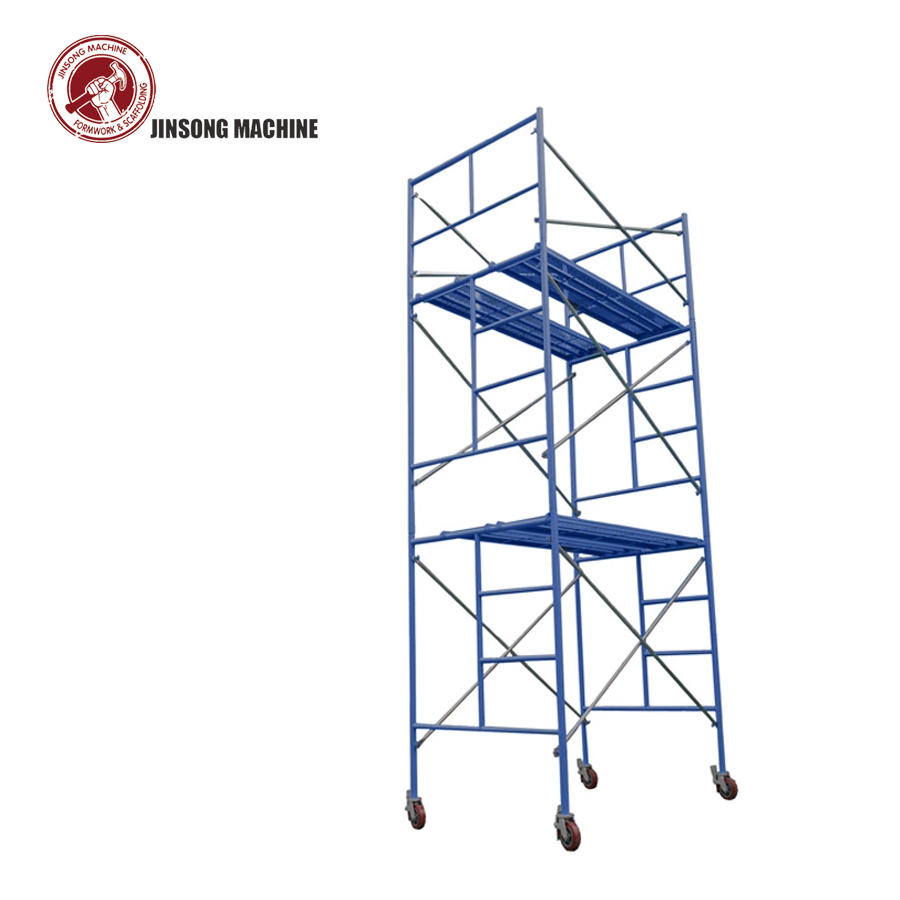

Frame scaffolding system is used in slab support,staircase,stage platform,bridge support,mobile tower etc.

the components are including Frame,catwalk,Joint pin,Cross brace,lock pin,Base jack,Caster

Major Advantages:Easy to assembly & dismantle,Mobile convenience,Strong loading capacity,Safety and Stability.

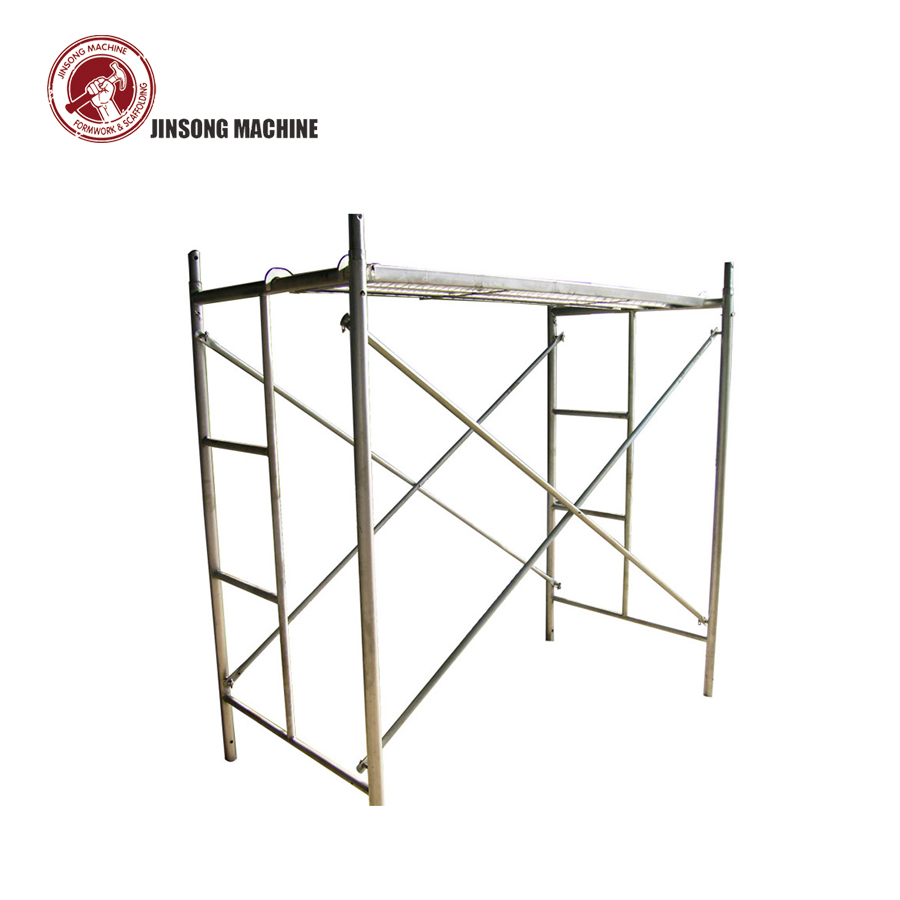

the form of Frame Scaffolding likes a door, so we call it door type or door model frame scaffolding. It includes Main frame, Diagonal/Cross Brace, Horizontal Brace, Walk Board, Adjustable Jack base, etc. this kind of scaffolding can give full play to frame work, the stability of this form is very well, and the construction of it is very firm. this scaffolding is an ideal material for construction.

1:Product Name:Q235 Painted Mobile Mason Scaffolding Ladder Frame for Construction

Material: Material:Q235/Q345 or according to your need
2) Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements
3) Scaffolding Type: Scaffold Parts
4)Application: building construction
5)Advantage:Easy Assembling
6)Performance:Flexible Durable

Width X Height(1219x1930mm,42x2.2mm,25x1.5mm);1219x1700mm(42x2.2mm,25x1.5mm);

(914x1700mm,42x2.2mm,25x1.5mm);914x1524mm(42x2.2mm,25x1.5mm)

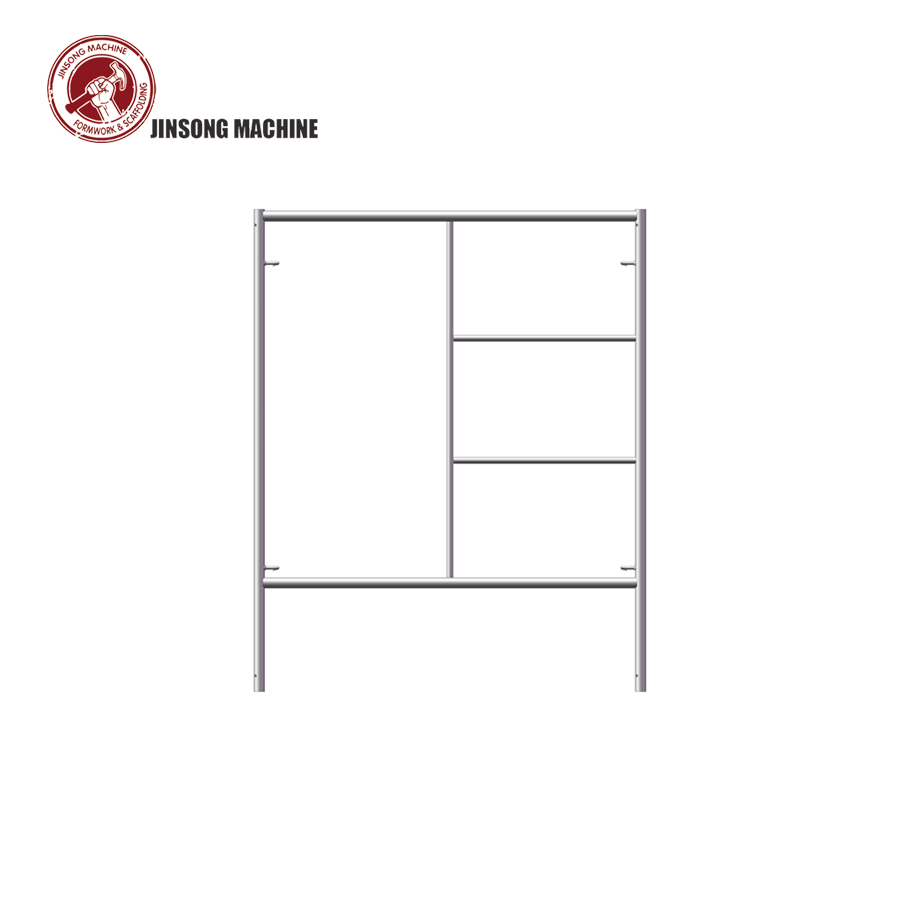

Mason through Frame

Item No.	Material	WidthXHeight	Weight(kg)
JSMF-001	Q235	1219x1930mm(42x2.2mm,25x1.5mm)	16.4
JSMF-002		1219x1930mm(42x2.0mm,25x1.5mm)	15.2
JSMF-003		1219x1700mm(42x2.2mm,42x2.0mm)	16.8
JSMF-004		1219x1700mm(42x2.2Mm,25x1.5mm)	14.6
JSMF-005		1219x1700mm(42x2.0mm,25x1.5mm)	13.5
JSMF-006		914X1700mm(42x2.2mm,25x1.5mm)	13.0
JSMF-007		1219x1524Mm(42x2.0mm,25x2.0mm)	23.7
JSMF-008		1219x1219Mm(42x2.2mm,25x1.5mm)	11.7
JSMF-009		1219x1219Mm(42x2.0mm,25x1.5mm)	10.8
JSMF-010		914x1524Mm(42x2.0mm,25x1.5mm)	10.9

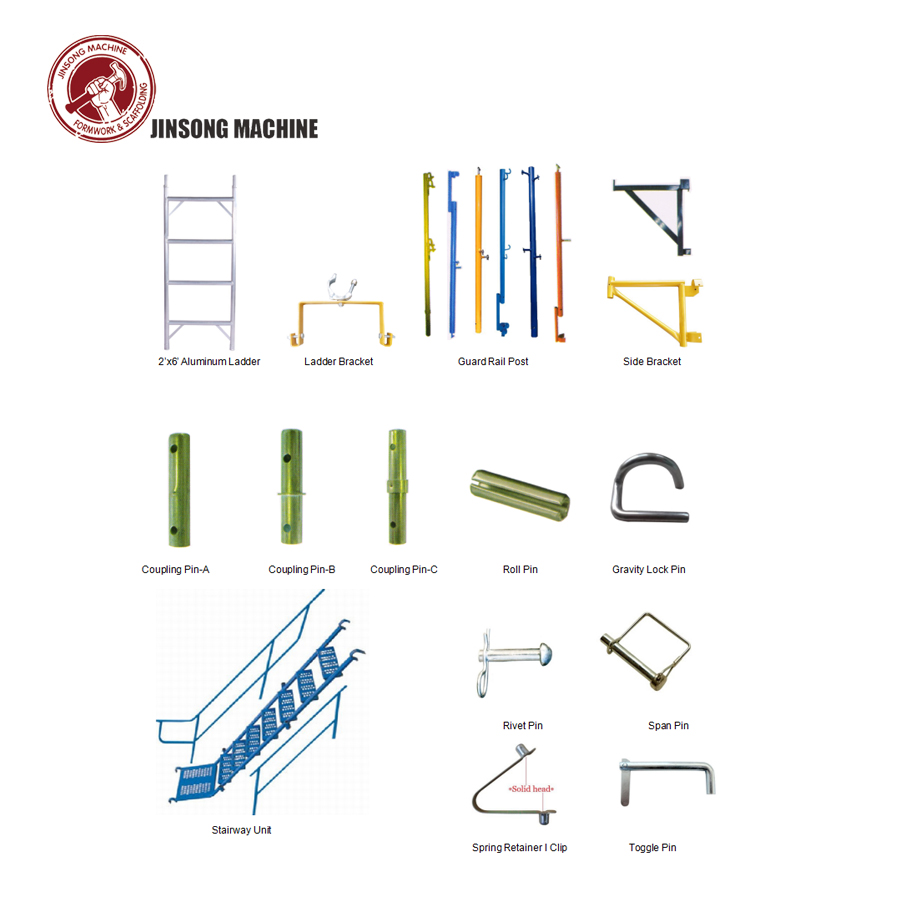

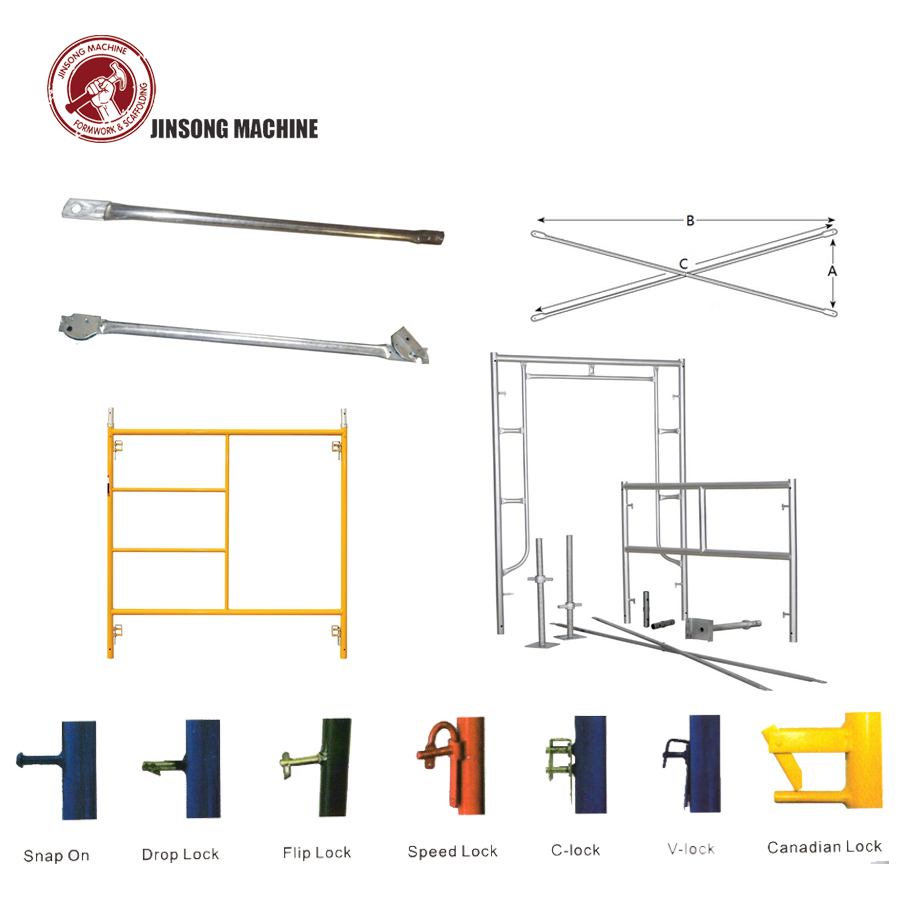

2:the Related Products:Main frame, Diagonal/Cross Brace, Horizontal Brace, Walk Board, Adjustable Jack base, etc.

Horizontal Frame

Item No.	Material	WidthXHeight	Weight(kg)
JSHF-001	Q235	1050x1829Mm(42x1.8Mm,25x1.4mm)	8.6
JSHF-002	Q235	1050x1829Mm(42x2.0mm,42x1.8mm)	11.2

Cross Brace

Item No.	Material	Length X Width X Height	Weight(kg)
JSCW-001	Q235	1219x1524x1952mm(21.3x1.5mm)	2.9
JSCW-002		1219x1219x1724mm(21.3x1.5mm)	2.5
JSCW-003		1219x1829x2198mm(21.3x1.5mm)	3.2
JSCW-004		610x1219x1363mm(21.3x1.5mm)	2.0
JSCW-005		610x1219x1928mm(21.3x1.5mm)	2.8
JSCW-006		914x1829x2045mm(21.3x1.5mm)	3.0
JSCW-007		914x1219x1524mm21.3x1.5mm)	2.3

Lock Pin

Item No.	Material	Diameter X Length	Weight(kg)
JSLP-001	Q235	12 x 45mm	0.04

Joint Pin

Item No.	Material	Out Diameter X Length	Weight(kg)
JSJP-001	Q235	36 x 225mm(Y)	0.34
JSJP-002	Q235	36 x 225mm(N)	0.34

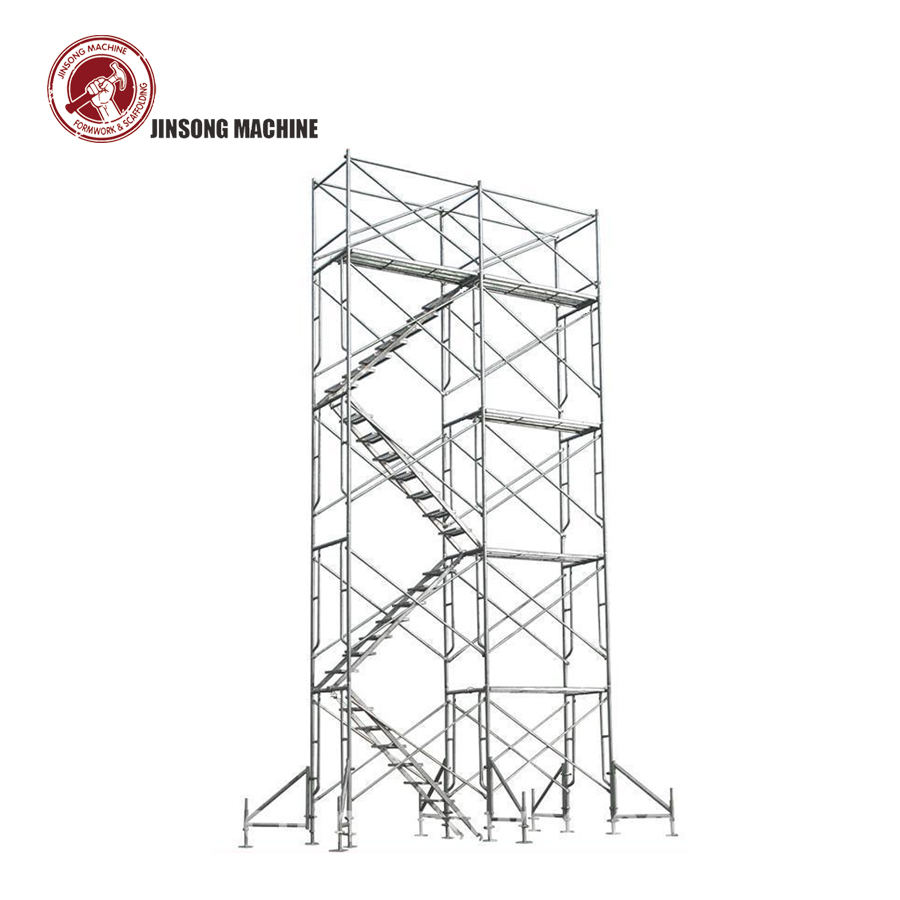

Stair Case

Item No.	Material	Width X Length X Height	Weight(kg)
JSSC-001	Q235	W450x2677mm(L1829xH1955mm)	25.55
JSSC-002		W450x2515mm(L1829xH1725mm)	23.34
JSSC-003		W450x2370mm(L1500xH2000mm)	23.31
JSSC-004		W450x2828.4mm(L2000xH2000mm)	26.18
JSSC-005		W1000x2690.7mm(L1800xH2000mm)	52.0
JSSC-006		W1000x2828mm(L2000xH2000mm)	52.5

Monkey Ladder

Item No.	Material	Width X Length	Weight(kg)
JSML-001	Q235	300x2000mm(25x1.5mm,25x1.5mm)	5.7
JSML-002		300x3000mm(25x1.5mm,25x1.5mm)	7.9
JSML-003		300x4000mm(25x1.5mm,25x1.5mm)	10.3
JSML-004		300x6000mm(32x2.0mm,25x1.5mm)	22.1

3:the Packaging:Bundles;Steel Pallet or According to Customer Request
Q235 Painted Mobile Mason Scaffolding Ladder Frame for Construction

4:the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,we are a factory,it is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.

by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.

We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.

for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
