Home >Products Catalog > VR Type stepping motor > Three Phase 7.84N. M VR Type Stepper Motor 110BF003

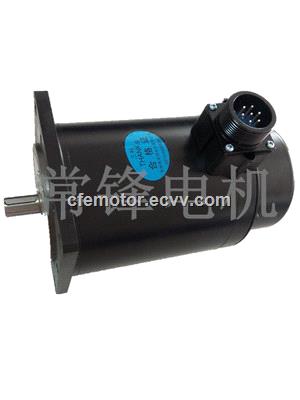

Three Phase 7.84N. M VR Type Stepper Motor 110BF003

FOB Price:	1.00 - 300.00 USD/Piece
Supply Ability:	3,000 Piece(s) per Month
Shipping:	Vessel, Air, Express from shanghai port, China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Standard carton package

Quick Details

Holding Torque: 7.84N.M
Step Angle(degrees): 1.5/0.75( FULL/HALF STEP)
Certification: CE,ISO
Type: Variable Reluctance
Brand Name: THANK, cfemotor, changfeng
Current / Phase: 6A
Model Number: 110BF003
Color: Black
Voltage: 80-300V
Payment: T/T, L/C, Pypal
MOQ: 1 piece
Customized: can be customized
Warranty: 1 year
Trade term: Vessel, Air, Express
Sample: charged sample

Specifications

STABLE DURABLE EFFICIENCY

ELECTRIC MOTOR FACTORY since 2003

SPECIALIZED in STEPPER & SERVO MOTOR

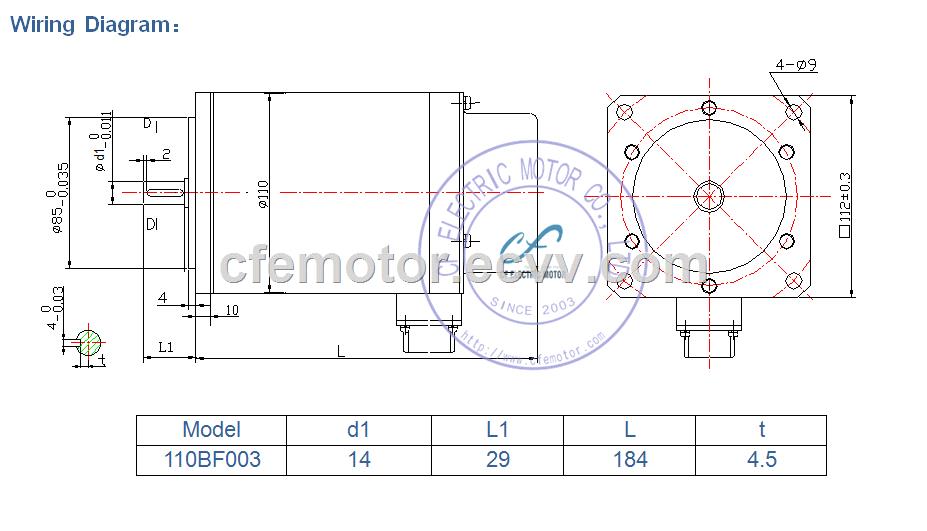

VR Type Stepper Motor 110BF003

Application:

Widely used CNC machine Tools, Package machinery, Textile machinery, Engraving machine, Wire-stripping Machine, Marking machine, Cutting machine, Laser photocomposing machine, Plotting instrument, Medical equipment, Printer, Embroidery machine, Stage Lighting, and other industries automatic assembly equipment.

General Specification:

Step Angle	0.75(Full Step)
Step Angle Accuracy	+/-5% (full step, no-load)
Temperature Rise	80( rated current 2 Phases on)
Ambient Temperature Range	-20~ +50
Insulation Resistance	100M Min. 500VDC
Dielectric Strength	950VAC 50Hz 1mA 1Min.
Radial Play	0.02mmMax. (300N)
End Play	0.08mmMax. (60N)
Max. Radial force	300N (20mm from the flange)
Max. Axial force	60N
Rotation	CW(See from Front Flange)
Insulation Grade	F grade

Electrical Specifications:

Model	110BF003
Rated Voltage	80-300V
Rated Current	6A
Phase Resistance	0.457
Phase Inductance	13.5mH
Holding Torque	7.84N.M
No Load Run Frequency	15 kHz
Rotor Inertia	5kg.Cm2
Motor Weight	8.5kgs

*Shown in the table is the representative Product. It can be customized according to the requirements of users.
