Home >Products Catalog > 4g router > Industry 300Mbps Wireless WiFi CPE 4G Router with 2 LAN Port SIM Card Slot

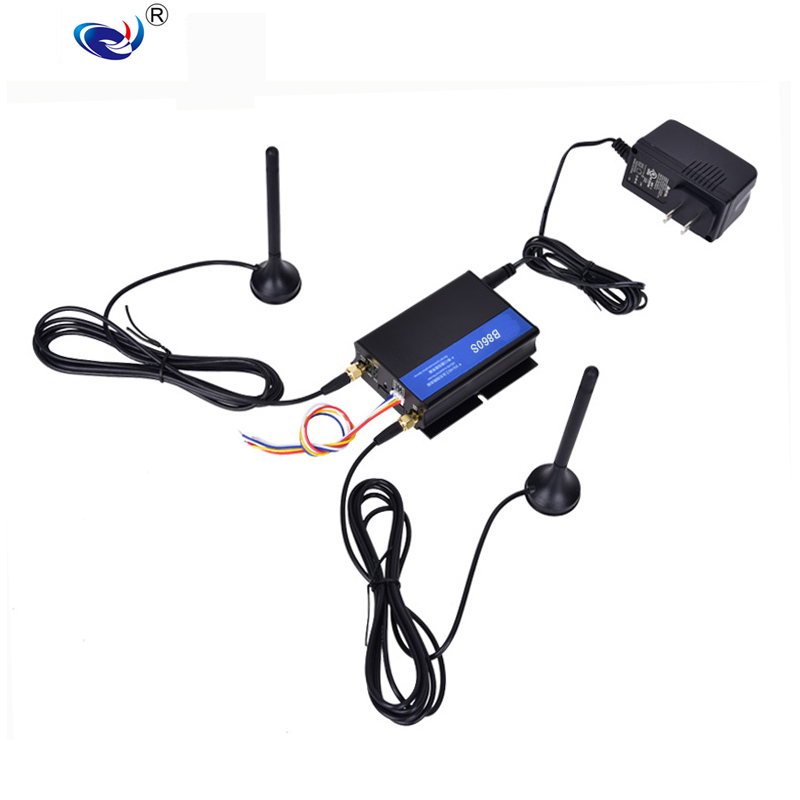

Industry 300Mbps Wireless WiFi CPE 4G Router with 2 LAN Port SIM Card Slot

FOB Price:	50.00 - 74.00 USD/Piece
Supply Ability:	100,000 Piece(s) per Week
Shipping:	Shenzhen port or Hongkong port
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Neutral packing

Quick Details

Brand Name: BL
Certification: CE ROHS
Function: Firewall,VPN,
Application: Industry 4G Router
Type: Wireless
Model Number: B860
Products Status: Stock
Connection way: 4G connection
User quantities: Wire253 Wireless30
Operation system: Windows XP/VISTA Linux 2.6 Windows 7 MAC OS : 10.3.7and above
Browser: IE:6.0 and above Safari:1.2.4 and above Firefox:2.0.0.8 and above
WIFI transmission speed: 150Mbps
LAN connector: 2pcs(LAN1 is the self adjustive of WAN/LAN port )
Product name: 4G Router
antenna connector: 2pcs
Wireless connector: IEEE802.11b/g/n
DC supply power: 6-35V 3A

Specifications

Industry 300Mbps Wireless WiFi CPE 4G Router with 2 LAN port SIM card slot

B860S series industrial grade wireless router communication products which are based on 3G and 4G internet requirements and developed. They are mainly applied for data transmission of industrial users and support transparent data transmission, picture transmission, equipment monitoring and wireless router internet functions.

B860S use 32 bit processors, it can process protocols and a large amount of data in a high speed. It also can match with many types of industrial modules for 3G /4G internet.(3G:WCDMA/EVDO/TD-SCDMA, 4G:TD-LTE/FDD-LTE ). Providing 10/100M Ethernet network port,WiFi wireless connector, Serial port,USB connector for connecting many kinds of terminal equipment.

Supporting Web configuration, easy management and remote message control.

Industry 300Mbps Wireless WIFI CPE 4G Router With 2 LAN port SIM card slot

Application

Electronics, Oil industry, Mineral, Finance, Communication, Public security, Heating, Industrial control, Meteorology, Water conservancy, Public transportation, local council and so on.

1.Product Feature:

L Adopt high grade industrial wireless module.

L Support 3G(WCDMA/CDMA/TD-SCDMA),4G(FDD-LTE/TD-LTE).

L Adopt metal case, IP30 protection grade.

L Wide voltage and current input: DC6-35V/3A;

L Anti-reverse power Connection protection, surge Protection, ESD Protection.

L Software and hardware watch dog design, support anti-crash functions. Protect equipment work stable and reliable.

L Automatic detection when network disconnects, Automatically restart when diaLing fails, scheduled reboot etc.

L Serial transparent transmission function, It can access to order control mode by serial port, control router and other equipment.

L SMS contrOl dialing, offline and restart function

L Support socket server and customer end mode.

L Support different types of DDNS service.

L Port mapping,DMZ host function

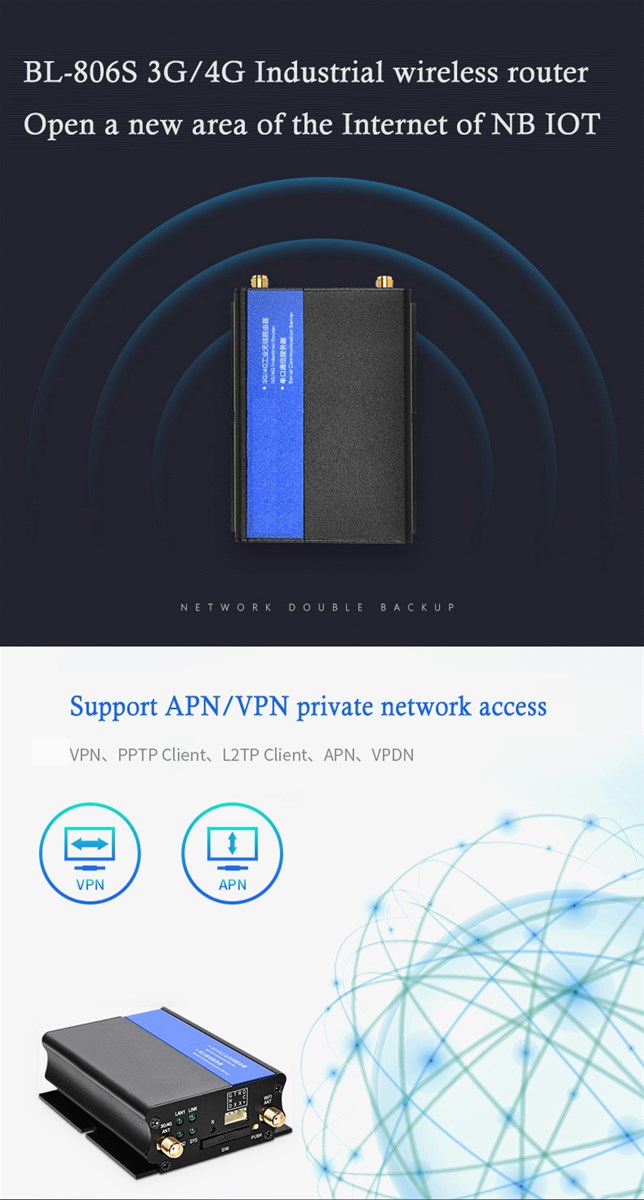

L Support VPN, PPTP client,L2TP client

L Support ads pushing function by customer end verification.

2.Product Function

2.1 Software function

Connection way	3G/4g connection, DHCP/Static IP/ PPPOE
User quantities	Wire:253,Wireless:30
Operation system	Windows XP/VISTA Linux 2.6 Windows 7 MAC OS: 10.3.7and above
S Browser	IE:6.0 and above Safari:1.2.4 and above Firefox:2.0.0.8 and above
Security Management	Firewall Setting: Protect the computer in the local area network purposed attacking from Internet MAC filtrAtion: Prohibition MAC address already added Access control: Control the right of access to computer in LAN. Port restriction: Stop some virus according to some port from connection at one time. Stop DOS attack.
Server	Virtual server: Set inner service server and provide user to access DMZ:when you need set the opening port of virtual server is not sure, you can set it into DMZ host. Port trigger: it can realize WiFi router open to the inner service port automatically by accessing to the port of Internet Serial port service: Realize the serial port transit transparently,at order control and so on. Message service: it can control connection, hanging off and restarting by message. Ads veriFication/pushing: Customer end verified management by WiFi Dog Protocols.
Equipment management	Area setting NTP Server setting Copy and storage system setting Recovering the setting information from files Recovery to default setting Software updating Remote management Restart Reset password
WLAN security mode	Open System WPA-PSK WPA2-PSK WPAPSK WPA2PSK(combine WPA-PS with WPA2-PSK mode) WPA1WPA2(combine WPA with WPA2 mode )

2.2 Hardware specification

Wireless connector	IEEE802.11b/g/n
Operation frequency	2400-2483.5M
Main core chip	Ralink RT5350
Antenna	SMA (outer part is spiral, inner part is hole)
WiFi transmission speed	150Mbps

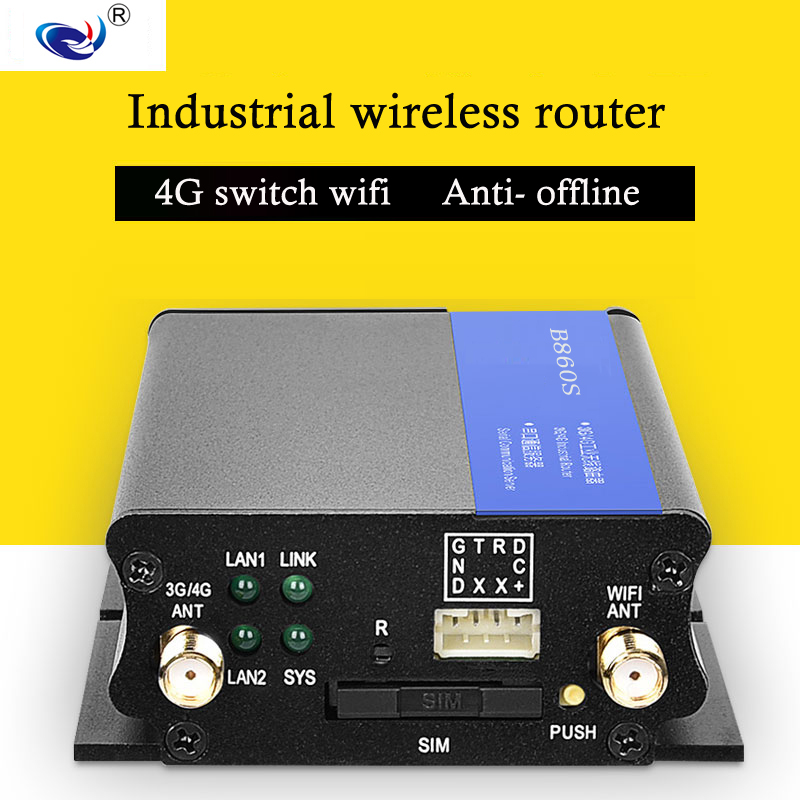

Outer connector	LAN connector:2 pcs(LAN1 is the self Adjustive of WAN/LAN port ) RS232connector:1pcs SIM card slot:1pcs Antenna connector:2 pcs Indicator:4pcs DC power supply connector:1 PC Reset button:1pcs
Data speed	802.11n:upto150Mbps 802.11b:1,2,5,5,11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Transmission power	11nHT40MCS7:+13.5dBm 11bCCK:+18dBm 11g OFDM: +13.5dBm
Receive sensitivity	-66dBmat150Mbps -73dBmat54Mbps -86dBm at 11Mbps
DiMension	LongwidthHeight:836626mm(excluding antenna interface)
Power	DC supply power:6-35V 3A
ConSumption (current)	Smaller than 400mA
Work environment	Work temperature:-20C ~ +75C Storage temperature:-40C ~ +80C Humidity: 5%~95%,No condensation

Industry 300Mbps Wireless WIFI CPE 4G Router With 2 LAN port SIM card slot

Module:4G EC25E/A

Industry 300Mbps Wireless WIFI CPE 4G Router With 2 LAN port SIM card slot

Operation page

Industry 300Mbps Wireless WiFi CPE 4G Router with 2 LAN port SIM card slot

Application:

Industry 300Mbps Wireless WIFI CPE 4G Router With 2 LAN port SIM card slot
