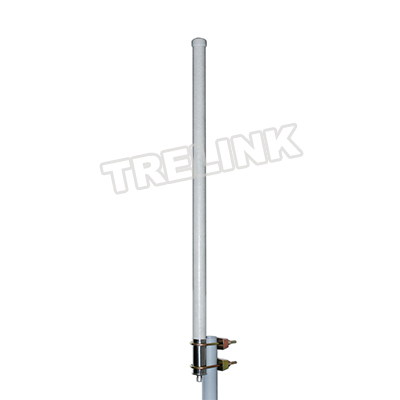

5 GHz 7 DBi WiFi Omni Directional Antenna

FOB Price:	1.00 - 99.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

5 GHz 7 dBi WiFi Omni directional Antenna

Electrical Specifications
Model	TLOD-5158-7V
Frequency Range	5150-5850 MHz
Gain	7 dBi
VSWR	<2:1
Polarization	Vertical
Horizontal Beamwidth	360
Vertical Beamwidth	16
Input Impedance	50
Maximum Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	N Female
Antenna Dimension(diameter*length)	25*300 mm
Weight	1.4 kg /3 lb
Radome Material	Fiberglass
Wind Velocity	210 km/h
Working Temperature	-40~+65
Mounting Pole	40-60 mm
