Bete Ceramics Co., Ltd.
China Manufacturer with main products: Ceramic Terminal Block, Ceramic Connector, Electrical Ceramic Connector, Ceramic Wire Connector, Ceramic Connector Block, Steatite Ceramic... |
Home
>Products Catalog > Ceramic Terminal Block Connector Electrical Ceramic Connector Ceramic Wire Connector Ceramic Connector

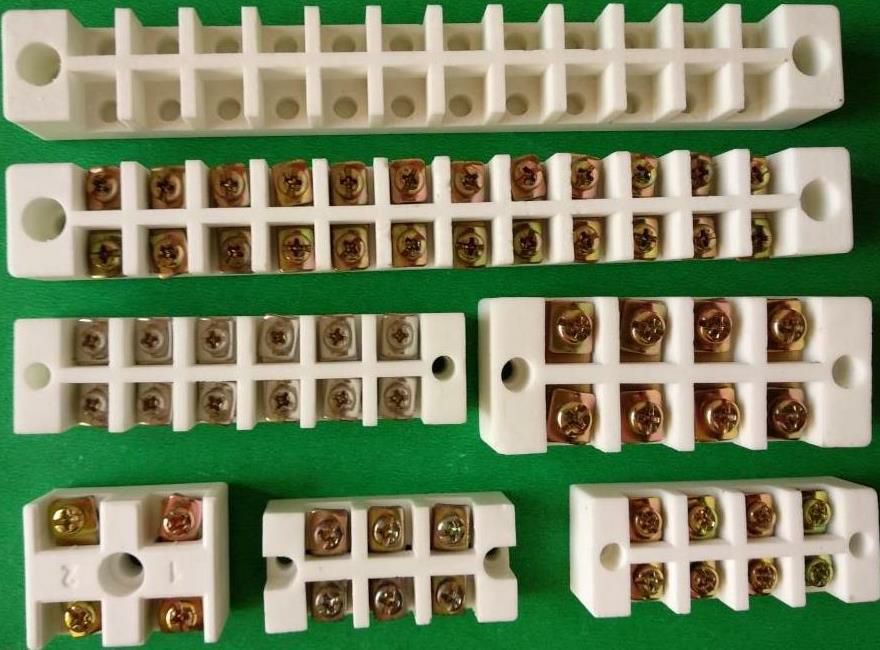

Ceramic Terminal Block Connector Electrical Ceramic Connector Ceramic Wire Connector Ceramic Connector
| Payment Terms: | T/T, Western Union |
|---|
Related products from verified members
Quick Details
- Type: Screw
- Brand Name: Electrical Ceramic Connector
- Wire range: cable
Specifications
Steatite Ceramic
Steatite is a crystalline form of magnesium silicate. It is an material with excellent insulating and mechanical performance, which can work safely at temperatures up to 1000. It is widely used at applications, such as electric connection, high temperature insulation, resistor cores and casings, and insulators for home appliances.
Features &Advantages
1. Good dielectric strength
2. Tracking resistant
3. Heat resistance up to 1000C
4. High mechanical strength
5. Resistant to UV radiation
Properties and Characteristics
Item |
properties |
Unit |
Value |
Physical |
Bulk density |
g/cm3 |
2.7 |
Water absorption |
% |
0 | |
Mechanical |
Flexural strength |
Mpa |
145 |
Hardness Vickers |
Gpa |
5.7 | |
Elastic modulus |
Gpa |
120 | |
Poisson's ratio |
- |
0.21 | |
Thermal |
Work temperature |
0C |
1000 |
Linear expansion(20-5000C) |
10-6/0C |
7.9 | |
Thermal conductivity |
W/(m.K) |
2.5 | |
Specific Heat |
*10-3J/(kg*K) |
0.75 | |
Electrical |
Dielectric constant(1MHz) |
- |
6.2 |
Dielectric loss angle |
*10-4 |
18 | |
Dielectric strength |
*106V/m |
18 |
