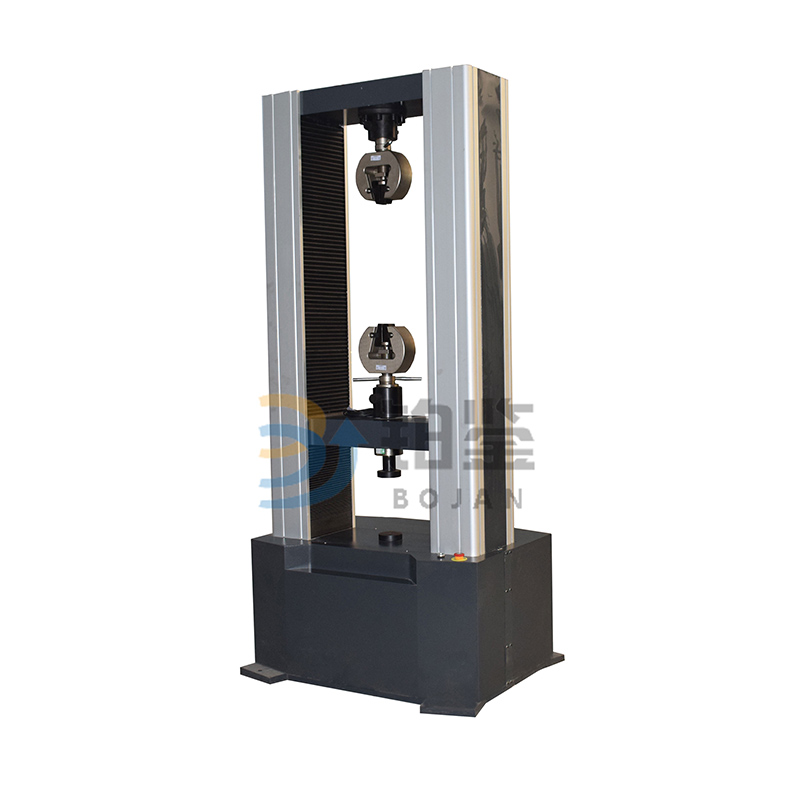

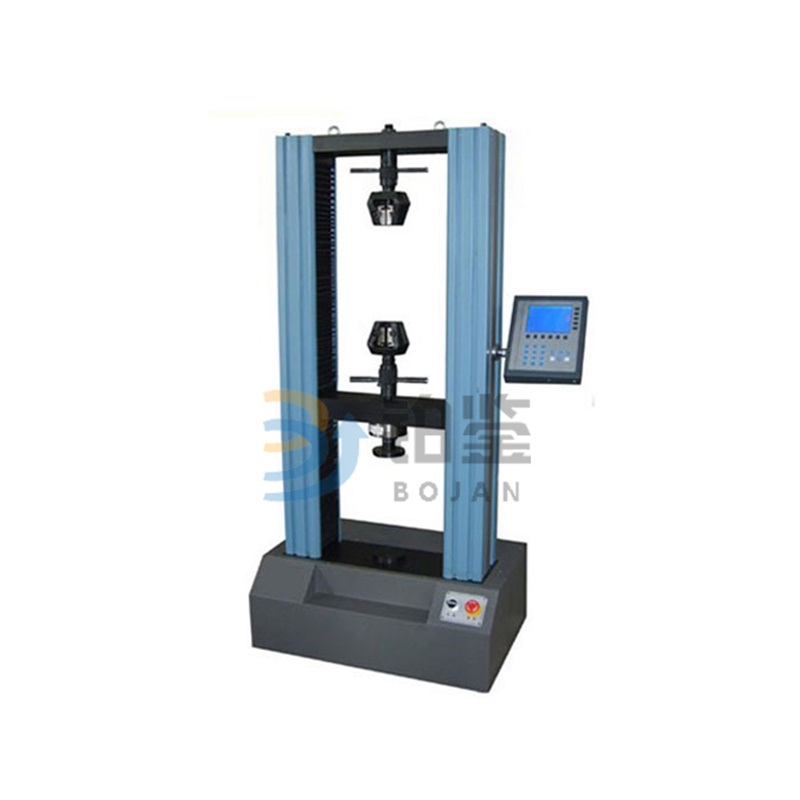

Electronic Universal Tensile Strength Testing Machine

FOB Price:	3200.00 - 4600.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	FOB qingdao
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard export wooden case

Quick Details

Usage: Tensile Testing Machine
Power: Electronic
Brand Name: Bojan
Warranty: 1 years
weight: 350KG
Max force: 20 KN
Function: tensile test
Stroke: 600mm
Speed range: 1-300 mm/min

Specifications

Test Sample

It is can be used for brake pad, cable, carton box, copper, geo-textile, Insulation material materials, pellet, pipe, scaffolding fastener, seat belt, Stainless steel belt, steel rod, steel rope, wooden-based panel.
Electronic Universal tensile strength Testing Machine

Technical Parameters

Max test force	10KN	20KN	50KN			100KN
Type	Double columns(Floor type)
Level	1/0.5 grade
Test Range	1%-100%FS
Test force accuracy	1% better than the show value
Force Resolution	0.001KN				0.01KN
Displacement resolution	0.01mm
Displacement accuracy	1% better than the show value
Test stroke	600mm(Can be customized)
Speed range	1-300mm/min
Displacement speed control accuracy	1% better than the show value
Dimensions(LWH)	about 7505001750mm			about 8006501850mm
Weight(kg)	about 350Kg			about 450Kg
Remark: the tensile and compression space can Be customized according your request.
