Shanxi Zhongtu Traffic Technology Co., Ltd.| Manufacturer
Shanxi Zhongtu Traffic Technology Co., Ltd.

China Manufacturer with main products: Roadmark, Roadmark Paints, Pavement Markings, Solvent-Based Paint Mark, Waterborne Paint Marking, Mma Skip Stripe, Thermoplastic Paint, Mma...

Home  >Products Catalog > thermoplastic road marking paint > Thermoplastic Screed/Extrusion Pavement Marking Material

Thermoplastic Screed/Extrusion Pavement Marking Material

FOB Price: 400.00 - 1023.00 USD/Ton
Supply Ability: 17,000 Ton(s) per Month
Shipping: Steam and sea and rail transport
Payment Terms: L/C, T/T
In Stock
Export Markets: Southeast Asia, Africa, Oceania, Eastern Asia
Place of Origin: Shanxi in China
Packaging Details: 25 kg/bag or 1 ton/ tray

Quick Details

  • Brand Name: Jiuda
  • State: Powder Coating
  • Application Method: screed/extrusion application
  • Usage: Road Marking Paint
  • Main Raw Material: C5 resin
  • Model Number: ---
  • EINECS No.: ---
  • MF: ---
  • Other Names: Hot-melt road marking paint
  • CAS No.: ---
  • Density (g/cm3): 2.0
  • softening point (Celsius degree): 97
  • Curing time(minutes): 3
  • Retroreflective value (White): >150
  • Retroreflective value(Yellow): >100
  • Compressive strength (Celsius degree): >12
  • anti-sliding: >45BPN

Specifications

Thermoplastic ScreedExtrusion Pavement Marking material
Introduction:

Advantage:

*  Reflective & durability;

*  Line smoothing and fluent;

*  the material is designed & developed to comply with individual international specification;

*  All national highways;

*  It can be reflective by the glass beads.



Consumption (Actual consumption depends on the roughness of pavement)



Reference Table of Material  consumption



Screed application

Thickness

2mm

Paint

about 4.5kg/

Primer

150g/

Glass Beads

350g/





Technical Data:

Curing time:3minutes

Compression strength:12(23)

Anti slide swing valve:45BPN

Color:White/Yellow/Customize color

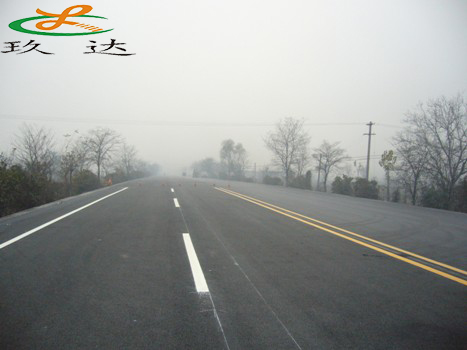

Typical installation areas:

Big and medium city road

Airport

Wharf

Zebra

Crossing

Road lane boundary

Lane edge line

Bridge,tunnel

Village,factory road

Underground garage and underground parking space line

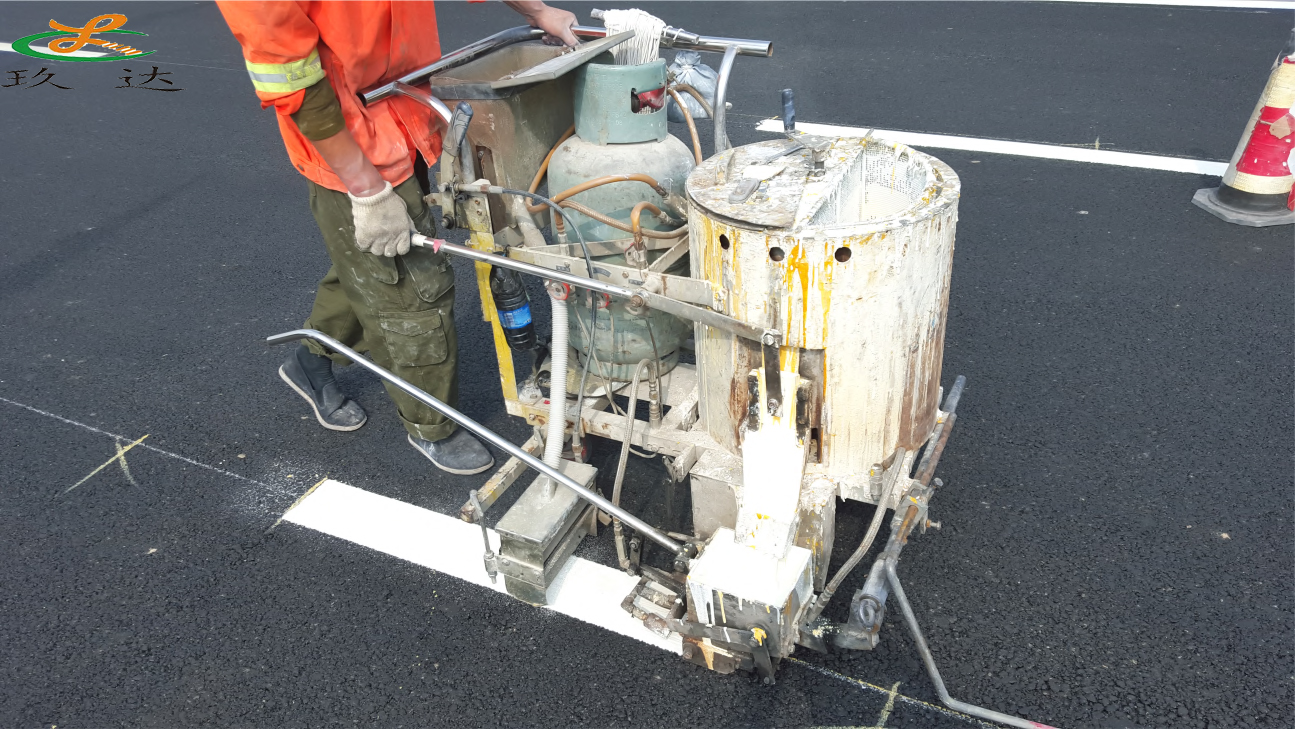

the matters needing to attention during the construction

1. Choose paint should be exquisite,easy to melt and not easy to deposit stratification.

2. It is not suitable for construction when the temperature is too low or the air humidity is

Too high,construction is prohibited when the road is wet.

3. the application should ensure continuity.after loading a car,it should be done as long as

Possible without interruption,reducing the number of pauses.

4. the speed of the crossing car should be adjusted according to the fluidity of the coating

and the performance of the vehicle according to the actual principle,the

Control speed is between 2km/h to 4km/h.
