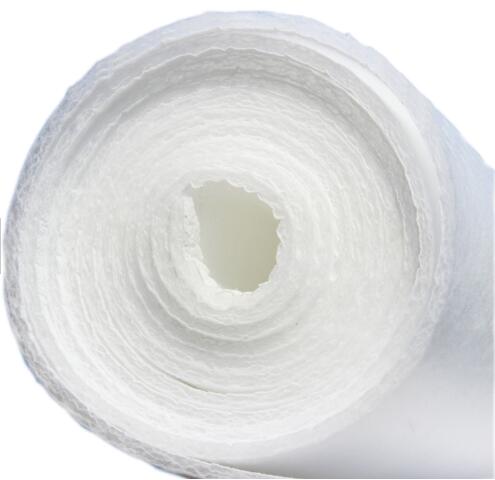

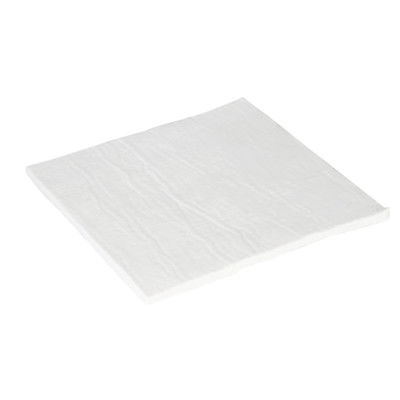

Low Thermal Conductivity Heat Pipe Panels Aerogel Insulation Fabric Blanket
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: HUATAO
- Structure: Conveyor System
- Material: Polyester
- Type: Bucket Conveyor
- Condition: New
Specifications
Description
Aerogel Insulation Felt/Panel is made of nano-silica aerogel as the main material and combined with glass fiber cotton or pre-oxidized fiber mat by special process.It is characterized by low thermal conductivity,certain tensile and compressive strength,and is a new type of thermal insulation material.
Specification
Model |
SACB-0-3 |
SACB-0-6 |
SACB-0-10 | |
Thickness(mm) |
3 |
6 |
10 | |
Width(mm) |
1400/1500(customizable) | |||
Color |
White | |||
Permitted useful temperature range(C) |
-200~650 |
-200~650 |
Fiberglass composite: -200~650 | |
Density(kg/m) |
20020 |
20020 |
20020 | |
Linear expansivity |
4.210-6 | |||
Dimensional stability(max) |
1% |
Test method GB/T 8811-2008 | ||
Compressive property |
(min),kpa,@10% |
60 |
Test method GB/T 13480-2014 | |
(min),kpa,@25% |
120 |
Test method GB/T 13480-2014 | ||
Burning behavior |
A1 |
Test method GB/T 20285-2006 | ||
the smoke performance level |
SR-2 | |||
Drip content level |
ST-2 | |||
Smoke toxicity of the FED's value,(max) |
0.1 | |||
Corrosion resistance |
pass |
Test method GB/T 3810.1-2006 | ||
Hydrophobicity,(%) |
>99.8 |
Test method GB/T 10299-2011 | ||
Tensile strength(min),(kpa) |
Fiberglass composite: 100 |
Test method GB/T 17911-2011 | ||
Remarks: Silica aerogel fiberglass and ceramic fiber technical parameters | ||||
Advantages
--Lower thermal conductivity coefficient
Thermal conductivity coefficient less than 0.016w/(m,k)at room temperature,
Several times or even dozens of times lower than traditional heat preservation materials, and with better heat preservation effect.
--Thinnest and lightest thermal insulating material
under the same heat preservation effect, the dosage of our company'S SiO2 aerogel composite material is only 1/5 to 1/3 of traditional materials'. so it can be applied to dense pipeline and narrow space and achieve a good effect of heat or cold preservation. and greatly convenient for installation and save the cost of the protective layer.
--Water-proof and moisture-proof,Easy to store
It is hydrophobic and porous with hydrophobicity of 99%.
Application
Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door
Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.
Veicle: Engine heat shield, catalytic exhaust pipe
Aerospace: Engine, black box
Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln
Machinery: industrial stove, electric stove, stove door, stove cover
Feature
It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
