Current Temperature & Fault Indicator
| FOB Price: | 1.00 - 500.00 USD/Set |
|---|---|
| Payment Terms: | L/C, D/P |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: SNOVA
- Rated Voltage: 1
- application: 1
- Material: 1
- name: Overhead Type Cable Fault Indicator Installation Tool Adapter
- Model Number: SNV300
- color: black and white
- Elongation at Break: #
- Min. Bending Radius: #
- Consistency of rod: #
Specifications

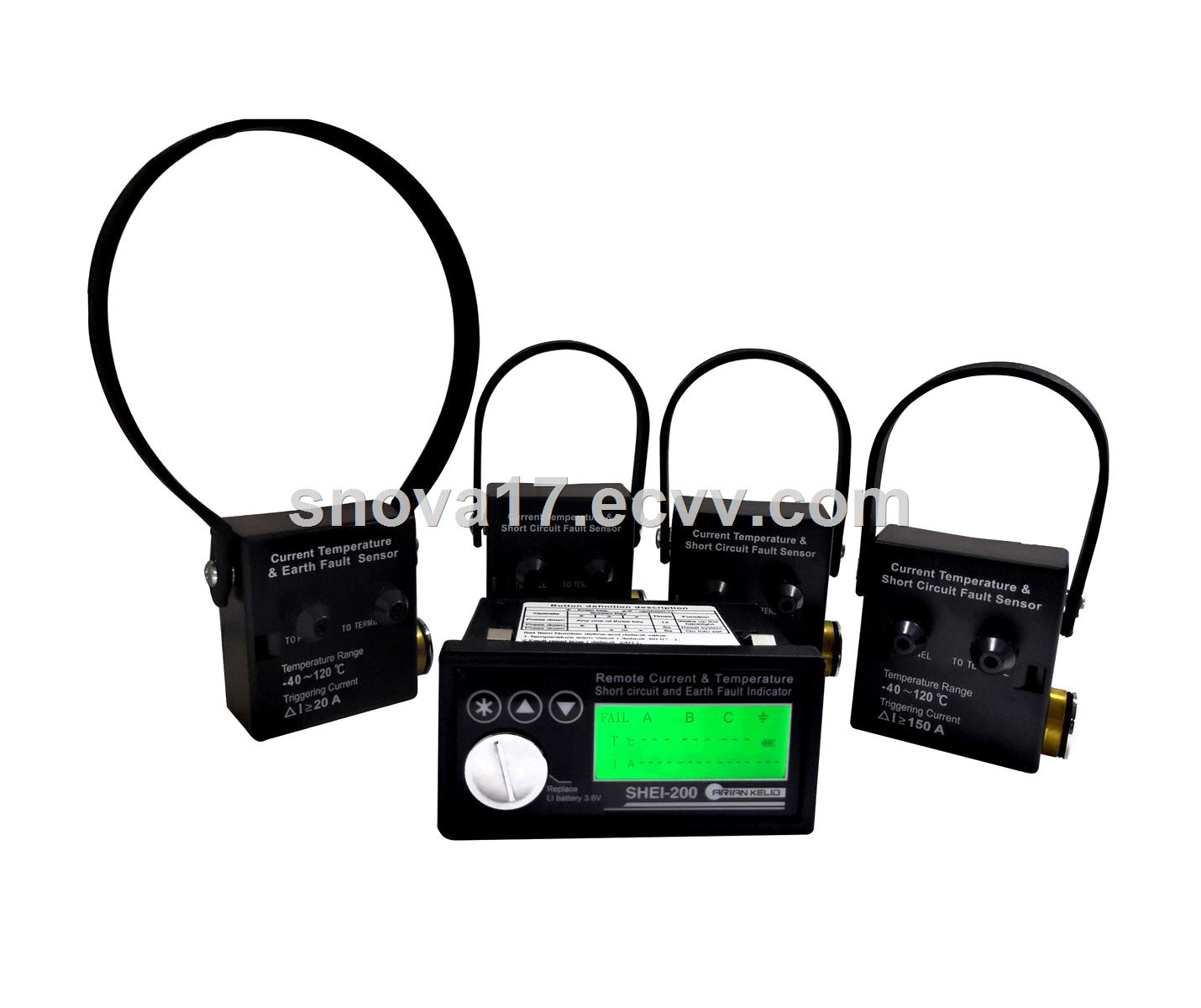

Current temperature and fault on-line monitoring instrument
Current temperature on-line monitor and fault is the ring net switch cabinet, cable branch box, box installed in the power distribution network system becomes, for a real-time online monitoring device indicates the corresponding section of the cable short circuit and ground fault current, temperature and time. When the line is in trouble, the staff can quickly determine the fault section by the warning indication of the indicator, and find out the fault point. At the same time, real-time alarm information can be sent to the monitoring center server, a regional fault location and location for monitoring the computer screen, the guide line patrol officers to quickly determine the fault section and find the point of failure. In order to solve the problem of fault finding, it provides the best way to improve the work efficiency, shorten the outage time, quickly restore the power supply, and improve the reliability and economic efficiency of power supply, which is of great significance.
Real time display of three phase temperature
Three phase current real time display
Intelligent fault diagnosis
Automatic reset after cable fault removal
Remote reset
RS- 485 communication
Data update once per second
Host, sensor battery can be replaced
Remote alarm for short circuit and ground fault
Remote alarm for cable temperature over a
predetermined value
Low power design, no external power supply
Fault, current and temperature are all based on
optical fiber transmission data.
