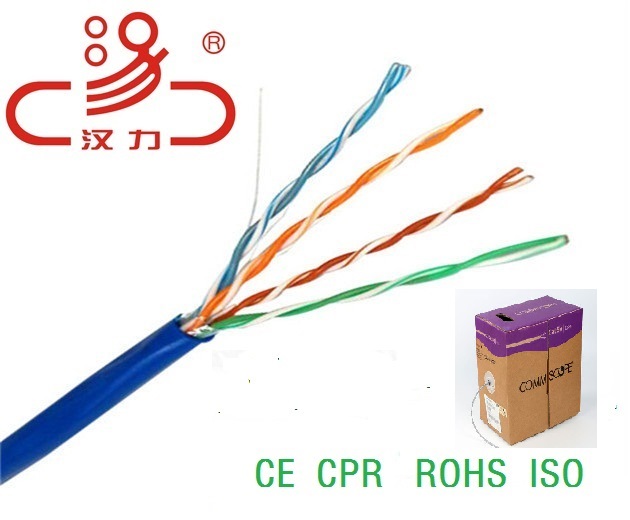

LAN Cable& Cable Utp Uat5e 4pair 24awg 100MHz

FOB Price:	30.00 - 70.00 USD/Box
Supply Ability:	52,000 Box(es) per Month

In Stock

Inquiry Now

Quick Details

UTP CAT 5E PE
Product Name/Code: UTP Cat 5E PVC		Performance
Product Name/Code: UTP Cat 5E PVC		Frequency	RL	Attenuation	next	PSNEXT
Application		(MHz)	(dB)	(dB/100m)
100 Base-T4			min.	max	(dB)
100 Base-TX		0.722	22.60	1.82	67.00	64.00
100VG - AnyLAN		1.000	20.20	2.00	65.30	62.30
1000 Base-T (Gigabit Ethernet)		4.000	23.00	4.10	56.30	53.30
155 Mbps ATM		8.000	24.50	5.80	51.80	48.80
622 Mbps at		10.00	25.00	6.50	50.30	47.30
Reference Standard		16.00	25.00	8.20	47.30	44.30
EIA/TIA 568B & ISO/IEC 11801		20.00	25.00	9.30	45.80	42.80
Cable Construction		25.00	24.30	10.4	44.30	41.30
Conductor	Solid Bare Copper	31.25	23.60	11.70	42.90	39.90
AWG	24	62.50	21.50	17.00	38.40	35.40
Conductor Diameter(mm)	0.5	100.00	20.10	22.00	35.30	32.30
Insulation	Solid PE	Frequency	ELFEXT	PSELFEXT		ACR
Average Thickness(mm)	0.217	(MHz)
Insulation Diameter(mm)	0.95		(dB)	(dB)		(dB)
		0.722	66.00	63.00		65.00
Sheathing	PVC/PE	1.000	63.8	60.8		63.30
Thickness(mm)	1.1	4.000	51.7	48.7		52.20
Diameter(mm)	5.20	8.000	45.7	42.7		46.00
		10.00	43.8	40.8		43.80
Core Identification/Color Code	According to customer request	16.00	39.7	36.7		39.10
Bending Radius	6xOverall Diameter	20.00	37.7	34.7		36.50
		25.00	35.8	32.8		33.90
		31.25	33.9	30.9		31.20
Fire Performance		62.50	27.8	24.8		21.40
Flame Propagation Test to IEC 60332-Part-1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3 (FRPVC)		100.00	23.8	20.8		13.30
		Electrical Performance
		Max.Conductor DC Resistance at 20 C(/Km)				< 93.8
		Operating Temperature( C )				70
		Velocity of propagation				68%
		Impedance(ohm)				100 15
