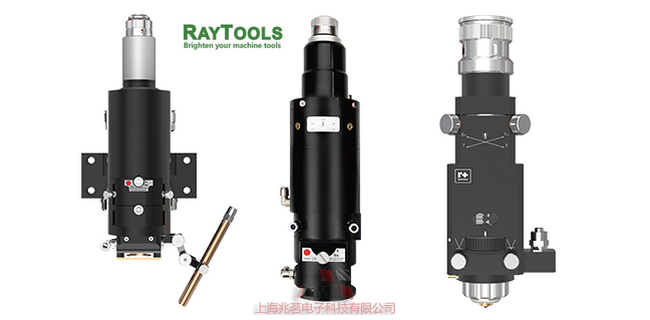

Raytools BT-240 fiber laser cutting head Cypcut laser cutting controller

FOB Price:	1.00 - 2.00 USD/Piece
Supply Ability:	40 Piece(s) per Month
Shipping:	DHL UPS Air or Sea Shipping
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Optical Laser Source

Price:

Min. Order:3 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	cartonn Box and Foam

Quick Details

Brand Name: Raytools
Applicable Material: metal
Warranty: 1 year
Graphic Format Supported: jpg
Certification: CE
Model Number: BT-240 laser cutting head
Application: Laser Cutting
Laser Power: 700-3000W
FSCUT2000C fiber cutting controller: Yes
BCS100 living focus controller: Yes
cypcut handle box: Yes
Deliveyr time: 1 days after payment received
Shipping Method: DHL TNTShipping
Package: carton and foam

Specifications

Raytools BT240 fiber laser cutting head Cypcut laser cutting controller
Raytools BT-240 fiber laser cutting had

1.Summary:

BT240 is designed by Raytools AG from Swiss in 2014, mainly for laser power from 1000W to 2000W. (We recommend 1000W, 1500W), supporting different laser powers on market, like IPG, SPI, Raycusetc.

It has proved stability on many laser cutting machine brands, like Hans laser, Farely, Qiaolian.etc.

Now most China manufacturers use it replace Lasermech laser head.

2.Features:

1. optimized optical configuration and smooth and efficient airflow design

2. knob type of focus adjustment, meticulous and flexible, adjustable range is 20mm, accuracy is 0.05mm.

3.drawer-type of lens mount, quick and easy access to the cover glass

4. nozzle assembly built ring gas-cooled and side-blown structure, in favor of cutting high reflective materials and preventing slab borehole sputtering

5. collimating and focusing lens have water-cooled structure, which can withstand up to 4kw power.

6. collimating and focusing lens can choose of single lens or lens group, which can achieve the best optical quality and the effect of cutting

7. with a variety of optical interfaces, can be adapted with a variety of fiber lasers

8. modular design, can be equipped with crash protection devices or air knife, cutting and welding easily be converted.

9. selection elongated nozzle link unit can be used for three-dimensional cutting.

3.Specifications:

Support laser power: 1000W, 1500W, 2000W,

Focus lens option(wave: 1025-1080nm): 100mm, 125mm, 150mm, 200mm(2D).

Optical through aperture: 25mm,

Cutting nozzle: 1.0mm3.0mm,

Cutting nozzle type: single layer, double-layer, and other customized nozzle.

Gas pressure: Max 30Bar.

Gross weight: 2.5kg.

Collimator

Focus range option( wave: 1025-1080nm): 60mm, 75mm, 100mm,

Optical through aperture: 28mm,

Fiber connector: QBH, LLK-B, QD

Besides this laser cutting head, we can also offer Cypcut FSCUT2000C fiber laser cutting control softweare/controller+BCS100 living focus controller and control handle box, focus lens and other spare parts.
