HDA Rotary Bell Automatic Electrostatic Liquid Paint Spray Robot Arm Spraying Equipment High Speed Automotive Spray Gun
| FOB Price: | 4800.00 - 5223.00 USD/Set |
|---|---|
| Supply Ability: | 3 Set(s) per Day |
| Shipping: | FOB shenzhen,DHL |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Packed in wooden cases |
Quick Details
- Application: Paint Spray Gun
- Type: Air bearing
- Brand Name: HDA
- Power: air bearing turbine
- Resin injection: 10
- Cup Volume: non
- Model Number: HDA-60/HDA-60T
Specifications

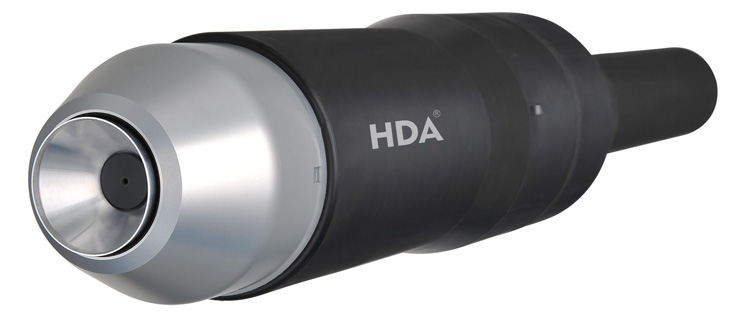

Reciprocating machine rotary bell HDA-60
HDA-60 high-speed electrostatic rotating bell has outstanding performance,excellent surface quality,high paint transfer efficiency,extraordinary service life,is the current market similar products with excelllent performance of the rotating bell.
Powerful and reliade,excellent performance air bearing turbine motor,speed up to,70,000rpm,whether conventional paint,high solid paint or water-based paint can achieve high atomization,to ensure that the system operates under optimal conditions.

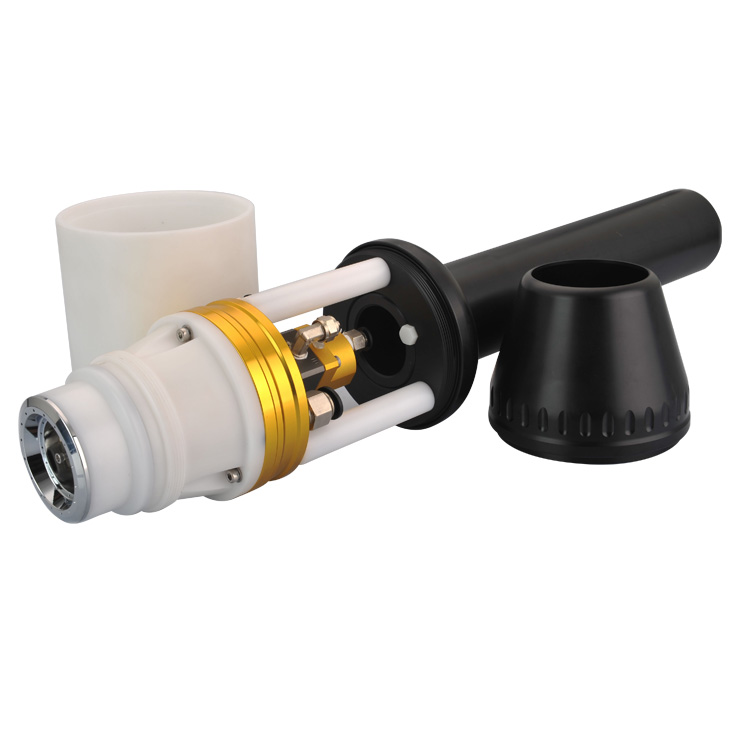

HDA-60 Rotary Cup Electrostatic Spray Gun (One Set)
1)HDA-60 (Air Bearing) Pneumatic Motor
2)HDA-60-50_atomizing cup
3)HDA-201 Electrostatic Controller and High Voltage Module
4)HCV-13 Gas-Controlled Coating Three-Directional Valve
5)Electrostatic cable
6)Electrostatic Special Coating Pipe
7)Air motor protective cover and gun holder
8)Gear pump

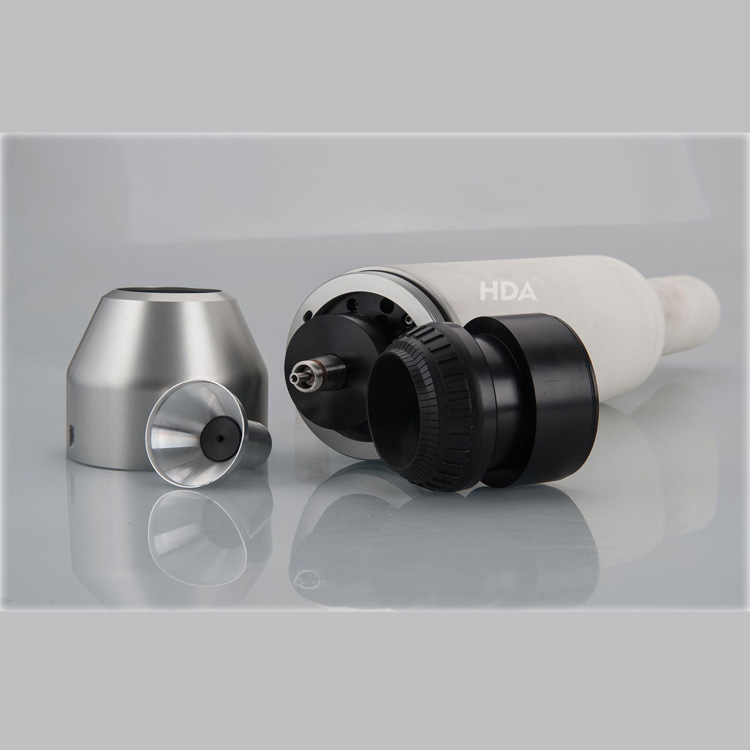

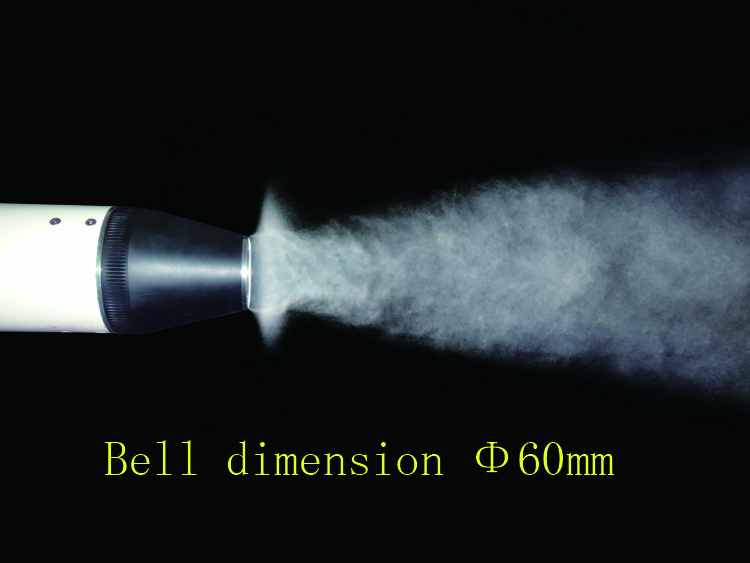

Variety of cup head and spray forming cover can be selected.HDA-60 rotating bells is equipped with three kinds of bells(305065).the optimum combination of bell head and spray forming cover can completely meet the quality requirements of different types of paint and different workpiece shapes.

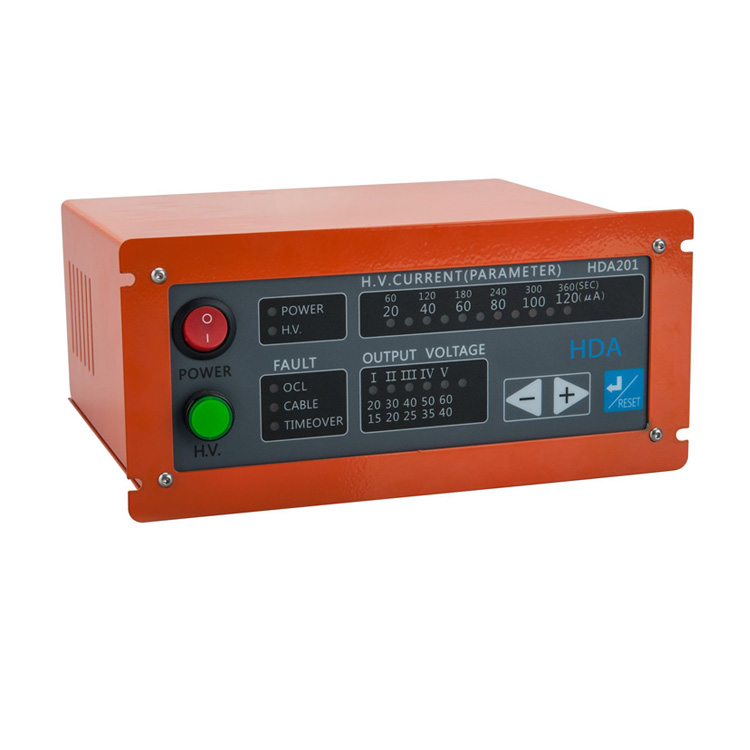

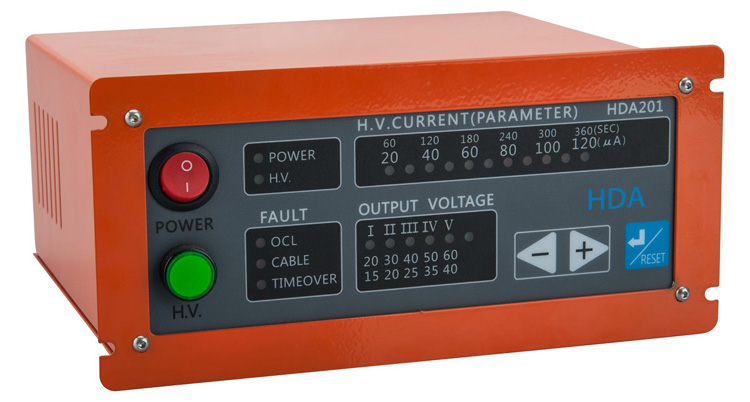

Automatic rotary bell electrostatic spray paint gun controller HDA-201
| Electrostatic controller model | HDA-201 |
| Output high voltage | DC-80KV |
| Power Supply | AC220V |
| Dimension | L220 X W180X H102MM |
| Weight | Controller 3kg
High voltage module 3kg |
| Suitable for airbrush machine | HDA-50/60/90 |

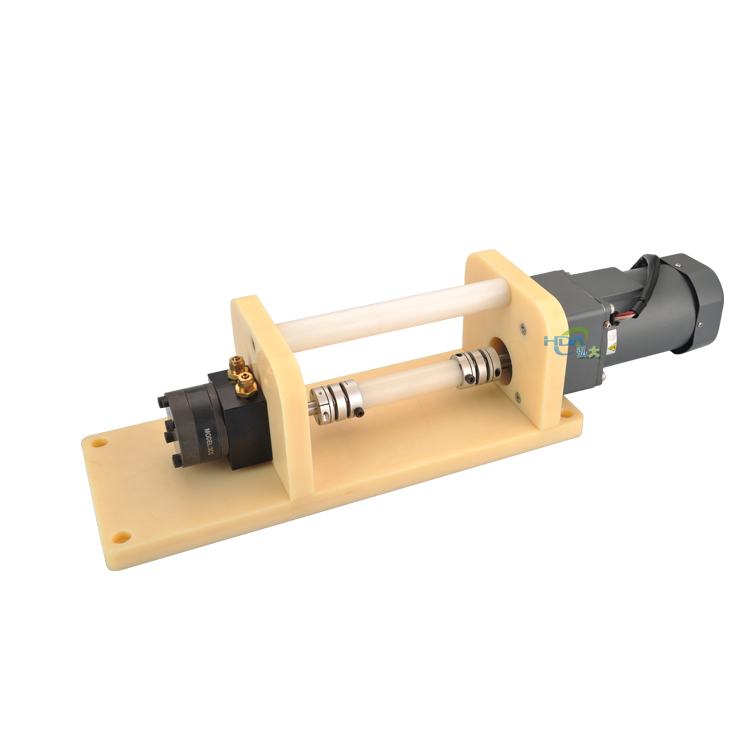

Automatic paint spraying machine gear pump
Wall hanging type precision gear pump

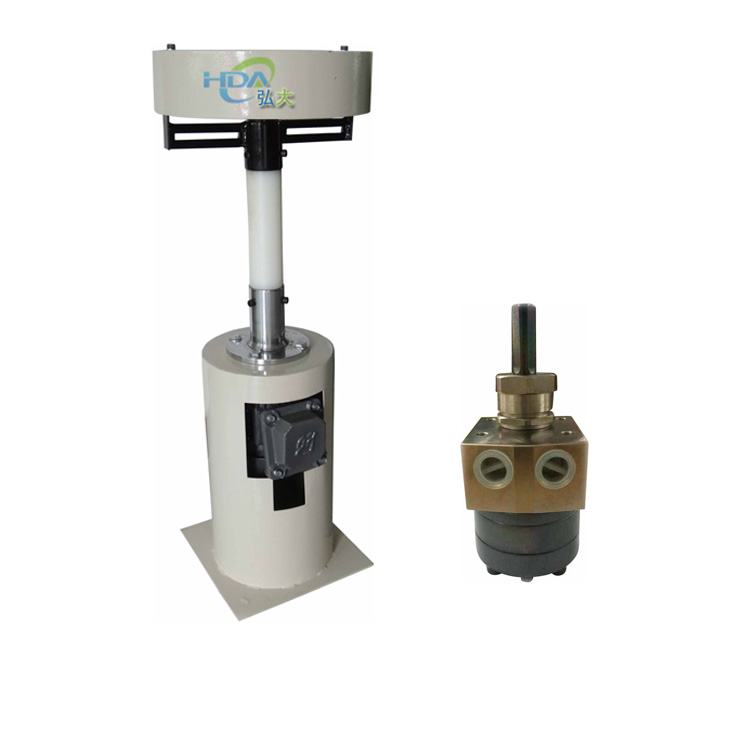

Landing type gear pump: 1.5 cc /3 cc/5 cc
