Chongqing Juvi Import & Export Co., Ltd.
China Manufacturer with main products: Anchor Winch, Capstan, Windlass, Drum Winch, Yacht Windlass, Boat Winch, Electric Sailing Winch, Horizontal Windlass |

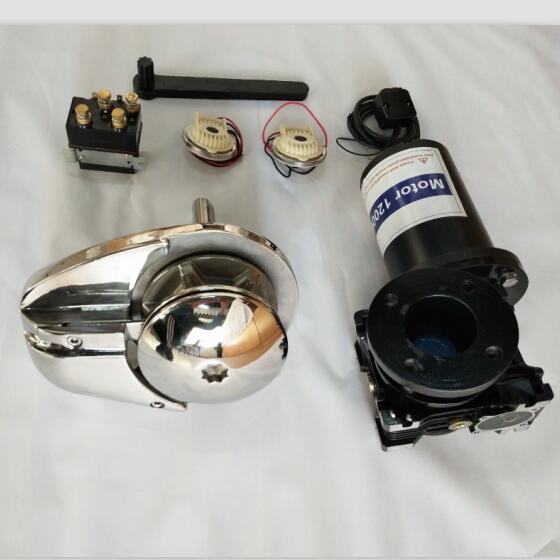

12V 600W Vertical Windlass for Small Boat Yacht JV511
| FOB Price: | 420.00 - 490.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set(s) per Month |
| Shipping: | FOB Shanghai |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 38*33*22cm,20kg |
Quick Details
- Capacity: 560
- Application: Boat
- Power Source: Electric
- Brand Name: JUVI
- Contact: Sophie Duan
- Model Number: JV511
- Product name: 12V 600W vertical windlass for small boat yacht
- Motor power: 600W
- Power Supply: 12V/24V
- Max. Load: 186kg
- Max. Pull: 560kg
- Chain Size: 6/7mm
- Rope size: 12-14mm
- Material: stainless steel 316
- Type: vertical anchor winch
- Function: boat yacht anchor winch
Specifications
Product Description
12V 600W DC vertical windlass for small boat yacht
Vertical Windlass |
Model | Net Weight (kg) |
Power Supply | Motor | No Load Absorption |
Max. Load (kg) |
Max. Pull (kg) |
Line Speed | Rope Size | Chain Size |
| JV411 | 9.7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12-14mm | 6/7mm | |
| JV411H | 10.5 | 400W | 30A | 130 | 450 | 30m/min | 12-14mm | 6/7mm | ||
| JV511 | 10 | 600W | 60A | 186 | 560 | 25m/min | 12-14mm | 6/7mm | ||
| JV511H | 11 | 600W | 60A | 210 | 600 | 25m/min | 12-14mm | 6/7mm | ||
| JV611 | 16.5 | 800W | 100A | 250 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV611H | 18 | 800W | 100A | 280 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV711 | 22.5 | 1200W | 120A | 400 | 1200 | 20m/min | 18-22mm | 8/10mm | ||
| JV711H | 24 | 1200W | 120A | 400 | 1200 | 20m/min | 18-20mm | 8/10mm | ||
| JV811 | 24 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV811H | 25.5 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV1011 | 24.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm | ||
| JV1011H | 27.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm |
Features
1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.
3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4. Rope-chain gypsy, choice of two gypsy.
5. Fit include hand-switch, foot-switch, circuit breaker and relay.
6. 3 year warranty.
Company Information
1. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
2. Marine deck mooring: Anchor, Anchor chain.
3. Customized products according to customers' request.
Packaging & Shipping
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers' request;
II. Shipping
by Express/ Air/ Sea/ Train.
FAQ
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment.
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support.
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: how about the Delivery Time?
WE could finish the production within 30 days
Q4: What's the MOQ?
MOQ is 1 set.
