Ningbo Longtu Network Technology Co., Ltd.
China Manufacturer with main products: Server Cabinet, Network Cabinet, Wall Mount Cabinet, Charing Cabinet, Cabinet Accessories, WAREHOUSE RACK, Two Poles&Four Poles Open Rack,... |
Home
>Products Catalog > Wall Mount Cabinet > 19" Double Section Wall Mounted Cabinet with High Loading
19" Double Section Wall Mounted Cabinet with High Loading
| FOB Price: | 10.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | TNE do EXW, FOB, CNF, CIF terms. |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Brand Name: TNE
- Size: 450/600mm depth
- Material: SPCC Cold Rolled Steel
- Type: Wall Mount Cabinet
- OEM & ODM: accept
- Model Number: TN-006
- Cabinet Standard: ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-9
- Products Status: Used
- Capacity: 4u to 22u
- Certification: CE,Rohs, ISO9001
- Color: RAL7035,RAL7044,RAL9004 etc
- Protection Level: IP20
- Package: Assembled or flat packing
Specifications

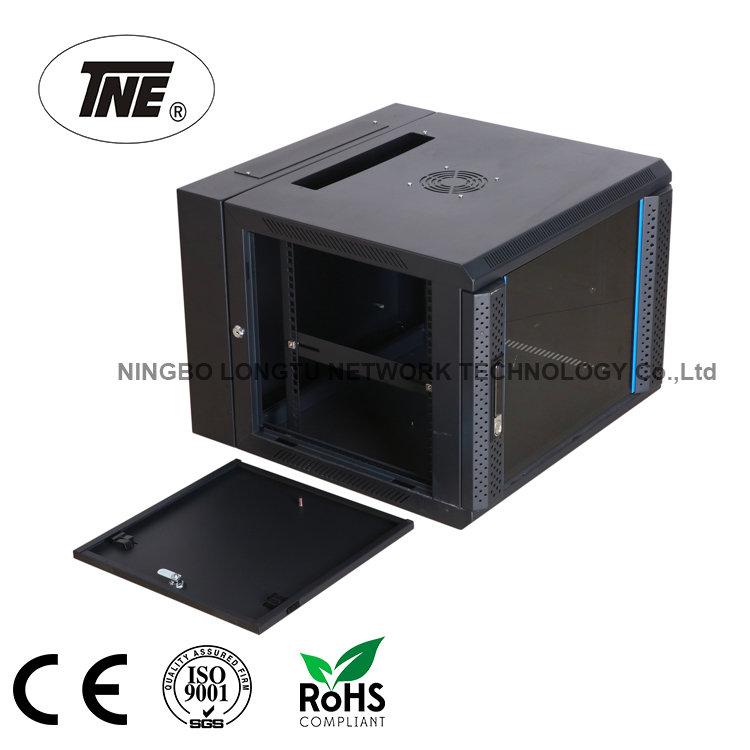

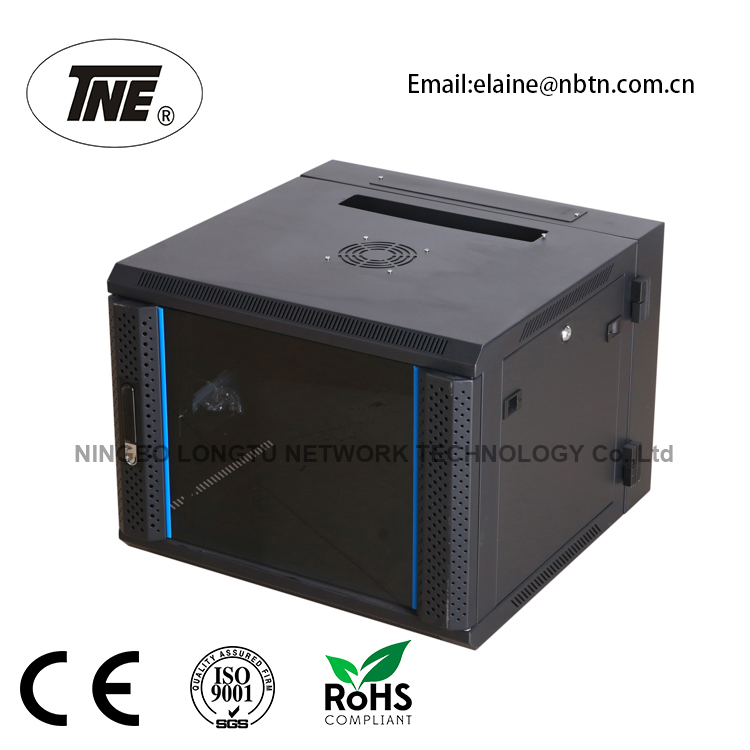

19" double section wall mounted cabinet with high loading
Features:
Wall telecom cabinet
*Two Section/ Double Section Wall Mount Cabinet
*Can be Disassembled, Flat Packing, Save the Shipping Cost.
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Easy mounting installation
*Removable side panels, side locks optional

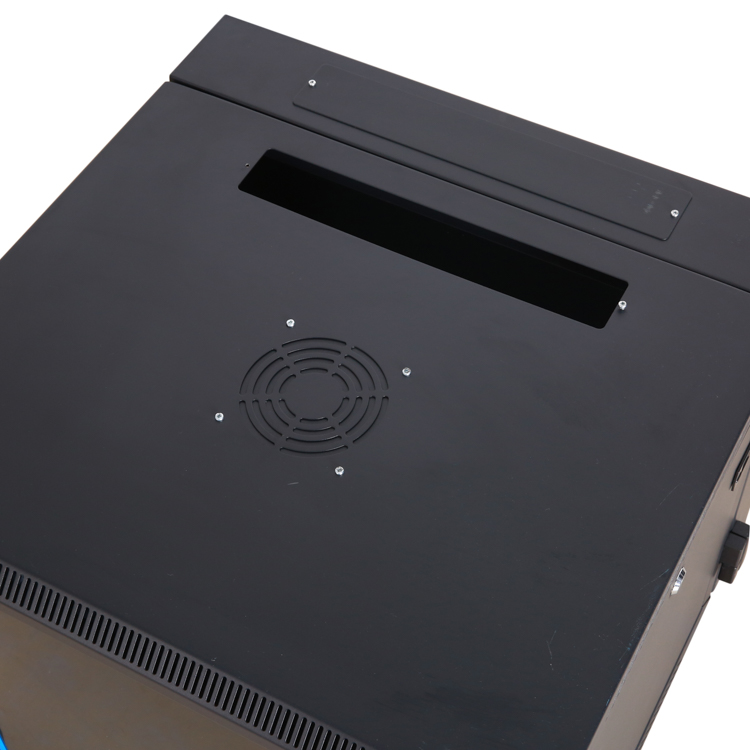

*Cable entry on both of top cover and bottom panel
*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.

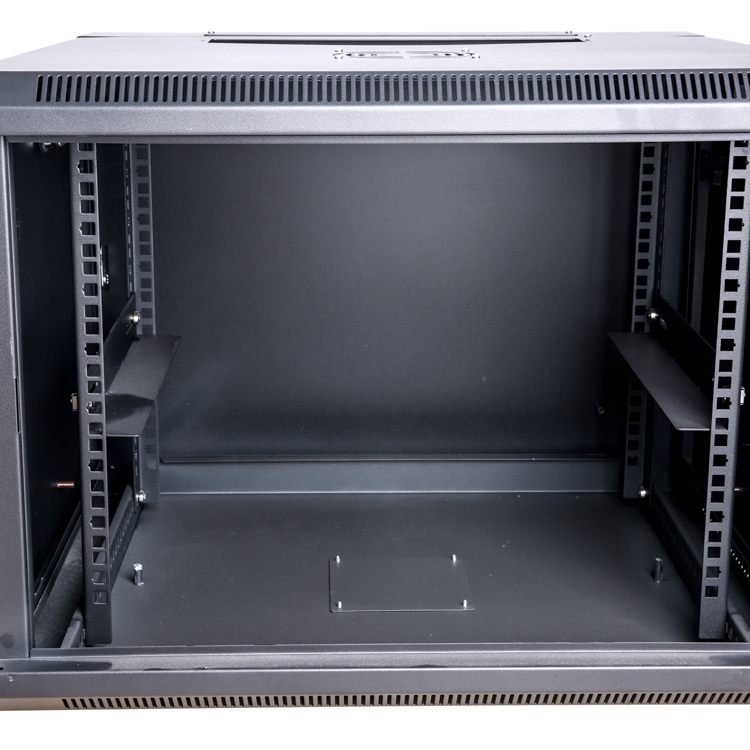

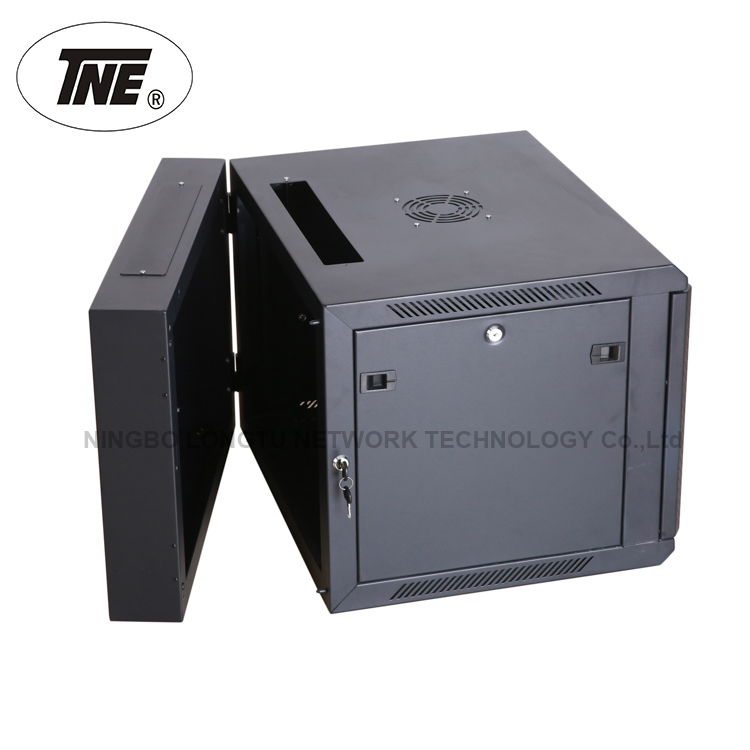

these 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.
Cable entry is provided top and bottom of the cabinet and also in the rear swing section.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
and so on...
