Wuxi Rockman New Materials Co., Ltd.

China Manufacturer with main products: Zirconia, Alumina Cerimac, Silicon Carbide, Sentering Bonded Silicon Carbide, Tungest Carbide, Silicon Nitride, Sentering Silicon Carbide...

Home  >Products Catalog > zirconia > Zirconia Zirconium Oxide Produce Pump Sleeve & Motor Sleeve

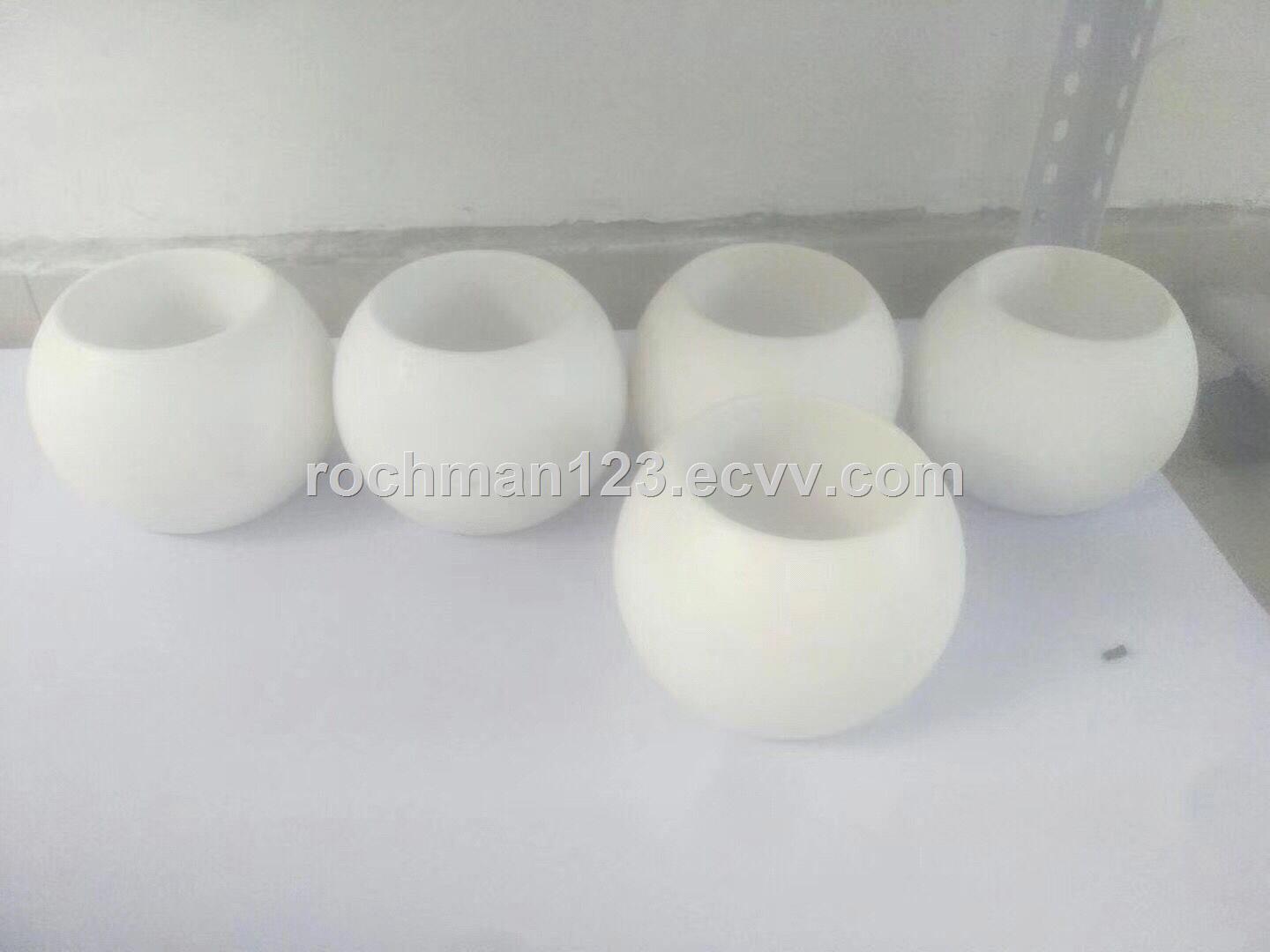

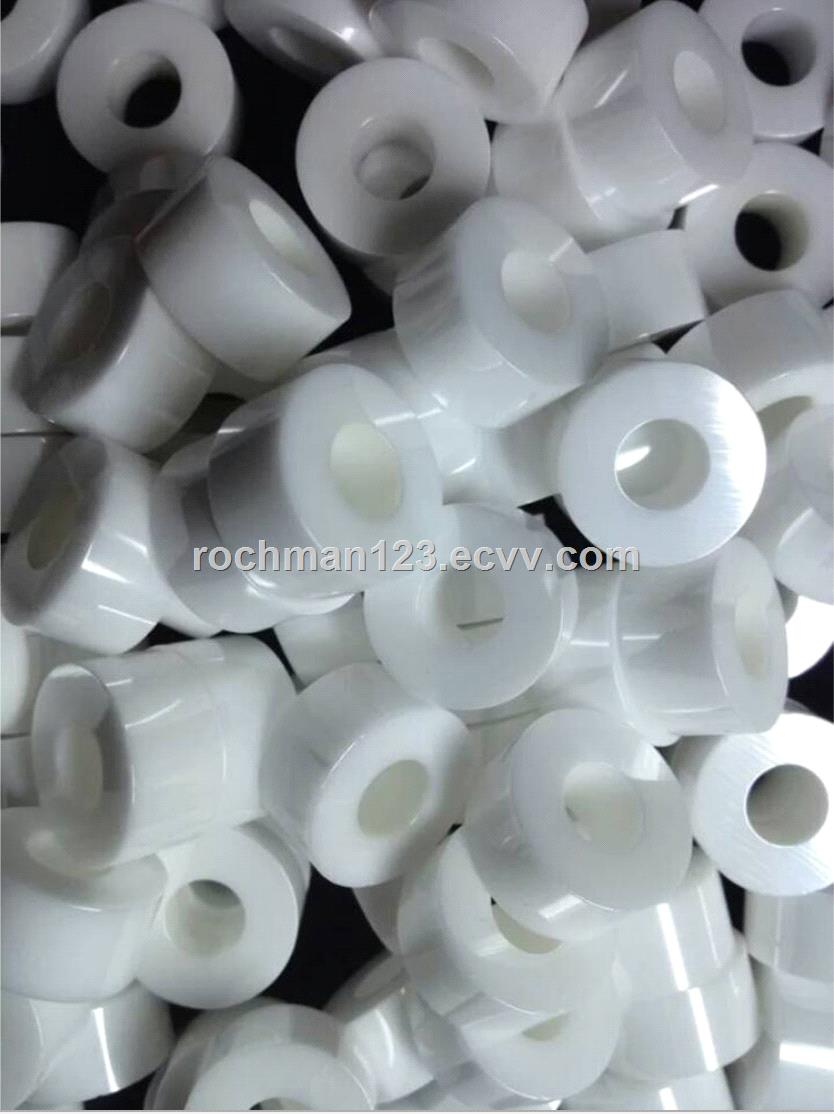

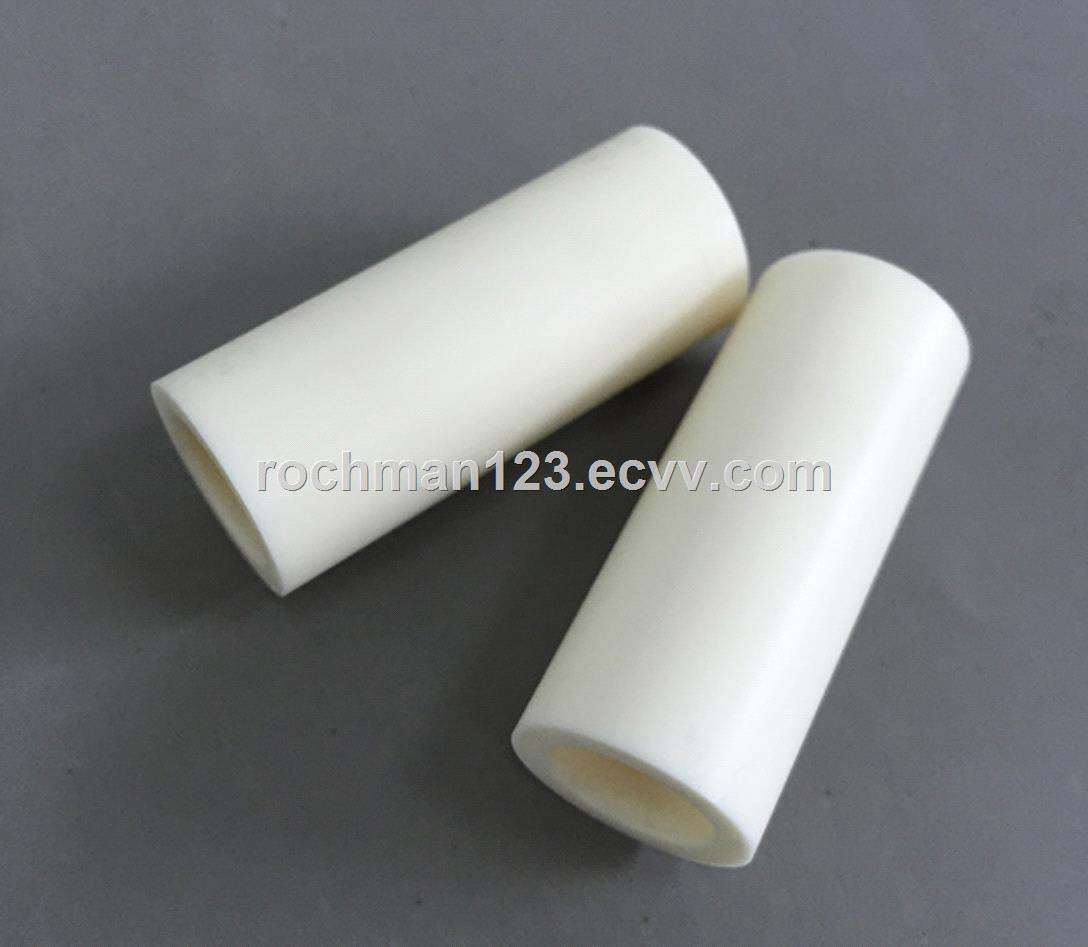

Zirconia Zirconium Oxide Produce Pump Sleeve & Motor Sleeve

FOB Price: 10.00 - 1000.00 USD/Piece
Supply Ability: 1,000 Piece(s) per Day
Shipping: by air or by sea
Payment Terms: L/C, T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: standard packge

Quick Details

  • Chemical Composition: zirconia
  • Material: zirconia
  • Shape: cyclo
  • Application: chemical parts
  • Brand Name: ROCKMAN
  • colours: white

Specifications



the following example is for you reference.

zirconia zirconium oxide produce pump sleeve and motor sleeve


Main Advantages:



Company Strong Strength

1, Our company has strong strength, strong Research and development capabilities, and possesses talents in materials Research, product development, design, manufacturing, quality management, etc. to create quality products.

High-precision Production Equipment

2, We have high-precision production equipment and testing equipment, which can be customized according to the drawings and Specific requirements provided by customers. the performance of the products is up to the European standard. the precision can provide a tolerance range of 2um (0.002m); the roughness value can reach Ra 0.01 -0.02

Import Raw Materials

Dimensional accuracy

up to 0.001mm

Finish

up to mirror

Concentricity

up to 0.003mm

Parallelism

up to 0.002mm

Straight slot

the narrowest machinable Groove width is 0.1100mm

Inner hole Tolerance

Minimum Processing 0.005mm

Thickness Dimension

Minimum Processing to 0.02mm

Thread

Minimum Machineable internal thread m2, external thread is not limited

Cylindricity

up to 0.004mm

Linear tolerance

up to 0.001mm

Minimum aperture

Minimum Processing 0.07mm



3, Our raw materials are imported high-purity Raw materials, all imported ceramic raw materials, some raw materials from the Domestic market, after strict checks and quality certification to meet the Lower budget requirements of some customers, through isostatic pressing, dry Pressing, film injection Forming in other ways to ensure product stability and Reliability, reduce dimensional deviation, improve mechanical strength and acid and alkali resistance

Good after -sales Service

4, Provide comprehensive pre-sale, in-sale, and after-sales support, respond quickly to problems arising during the use of the product, assist users in solving problems in a short period of time, and regularly Conduct technical return visits to ensure continuous product stability and Unhindered communicat










Technical details:


ZirconiaTechnical Data


Zirconia
Operating Limits Units

ZrO2:95%
the  main chemical ingredient Y2O3:5%

g/cm 6
Volume Density

HRA 83
Rohs Hardness

% 0
Water Parosity

Kgf/cm2 25000
Compressive Strength

Mpa.M3/2 68
Fracture Toughness

1300
Maximum Temperature
(TC) 360
Thermal shock Resistance

/ 9.5*10-6
Coefficient of Heat Expansion
(20) Cm  10
Resistivity
