Chongqing Juvi Import & Export Co., Ltd.

China Manufacturer with main products: Anchor Winch, Capstan, Windlass, Drum Winch, Yacht Windlass, Boat Winch, Electric Sailing Winch, Horizontal Windlass

Home >Products Catalog > Drum winch > 12V 24V 600W High Quality Boat Yacht Freefall Drum Anchor Winch JVW-011F

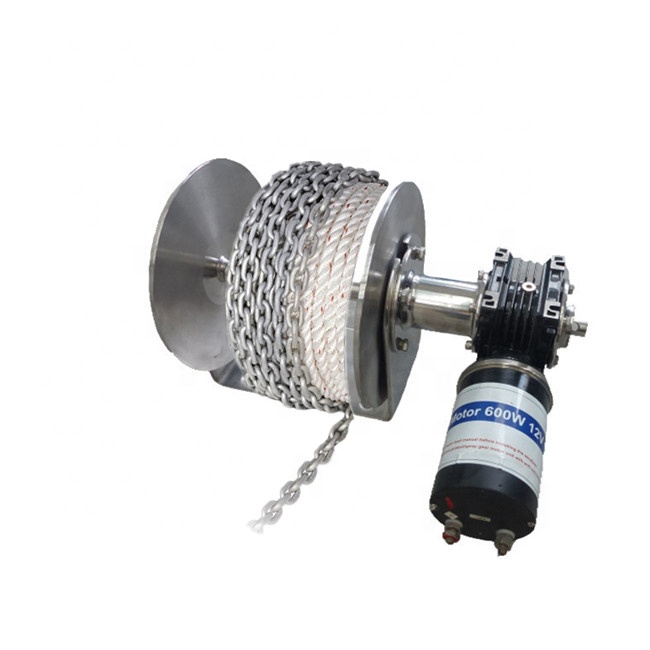

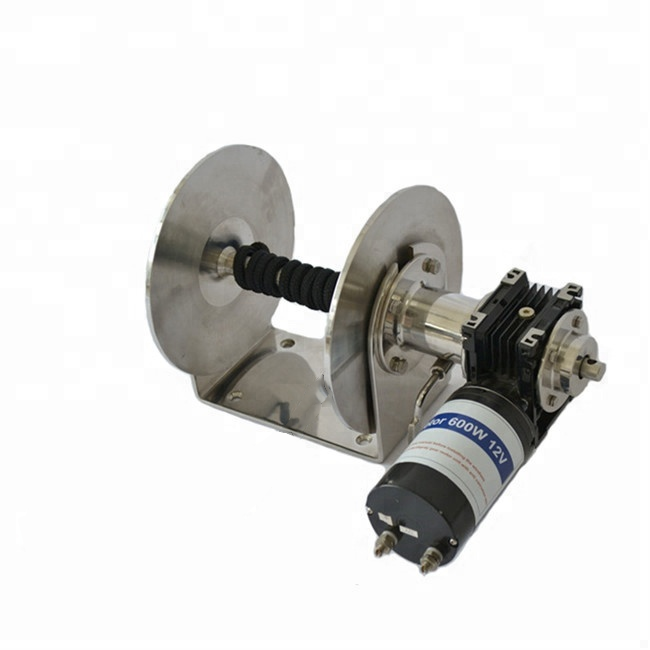

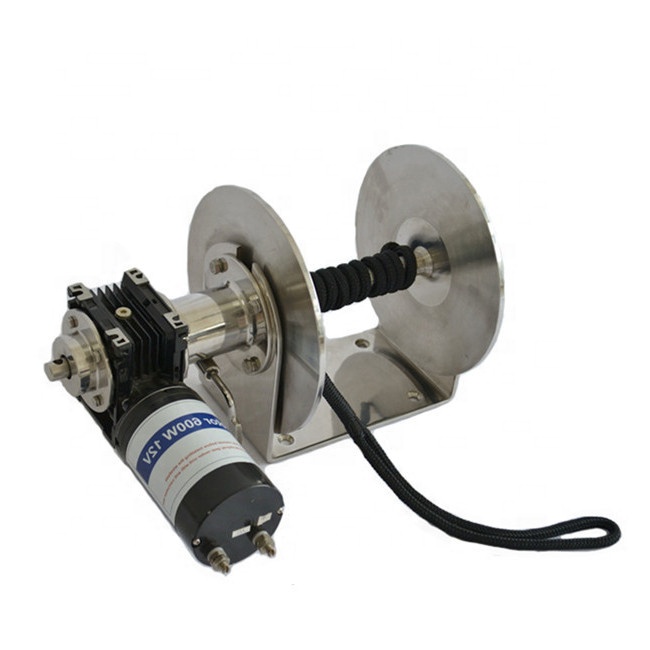

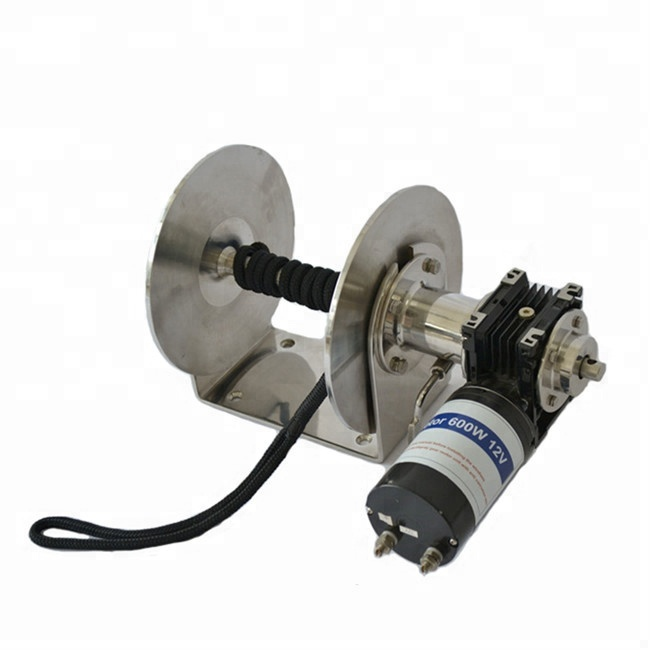

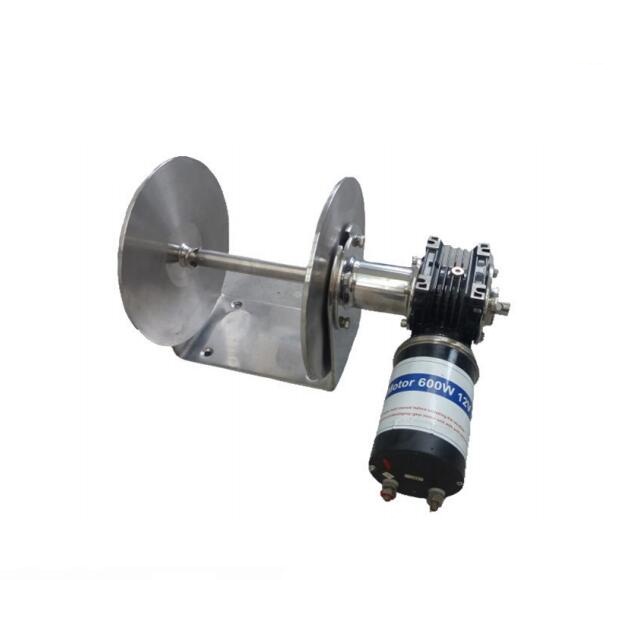

12V 24V 600W High Quality Boat Yacht Freefall Drum Anchor Winch JVW-011F

FOB Price:	740.00 - 890.00 USD/Set
Supply Ability:	10,000 Set(s) per Month
Shipping:	FOB Shanghai
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

JH-8 prop pulling winch

Price:1.00-11.00 USD/Set

Min. Order:1 Set
Heavy Duty Consturction Used Electric Winch for...

Price:550.00 USD/Set

Min. Order:1 Set
12 ton double drum hydraulic winches

Price:500.00-3,000.00 USD/Set

Min. Order:1 Set
Cable Winch (3-8T)

Price:

Min. Order:
Winch

Price:100.00-500.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Netural packing

Quick Details

Capacity: 600kg
Application: Boat
Power Source: Electric
Brand Name: JUVI
Contact: Sophie Duan
Model Number: JVW-011F
Motor power: 600W
Power Supply: 12V 24V
Max. Load: 190kg
Max. Pull: 600kg
Line Speed: 30m/min
Rope Size: 6-8mm
Chain Size: 5-6mm
Weight: 16kg
Type: freefall drum winch

Specifications

Product Description

12V 24V 600W high quality boat yacht freefall Drum Anchor Winch

Freefall drum winch	Model	Net Weight (kg)	Power Supply	Motor	No Load Absorption	Max. Load (kg)	Max. Pull (kg)	Line Speed	Rope Size	Chain Size
	JVW-010F	12	12V/24V	400W	30A	120	320	30m/min	6mm	5-6mm
	JVW-011F	17		600W	50A	190	600	30m/min	6-8mm	5-6mm
	JVW-012F	25		1000W	90A	350	750	25m/min	8-10mm	6-8mm
	JVW-013F	35.5		1400W	120A	480	900	20m/min	10-14mm	8-10mm
	JVW-014F	46		1600W	135A	680	1200	20m/min	10-14mm	8-10mm
	JVW-015F	83		2500W	155A	980	1900	20m/min	10-14mm	8-10mm

Features

Features:

1.No need to tie off the rope at anchorage.

2.the speed of retrieval increases with each revolution.

3.All rope and chain is spooled on and off the drum at a rate of 80 and 90 feet per minute.

4.the rope and chain does not twist and tangle causing the unit to malfunction.

5.with the flick of a switch the anchor is raised and lowered.

6.Freefall at up to 600 feet/minute which is a real advantage when you fish in depths greater than 20 meters.

7.the Drum can only free spool whilst where is weight pulling down so once the anchor hits the seabed the drum will automatically Stop which totally eliminates the risk of an over run which happens when too much rope is spooled out when anchoring.
