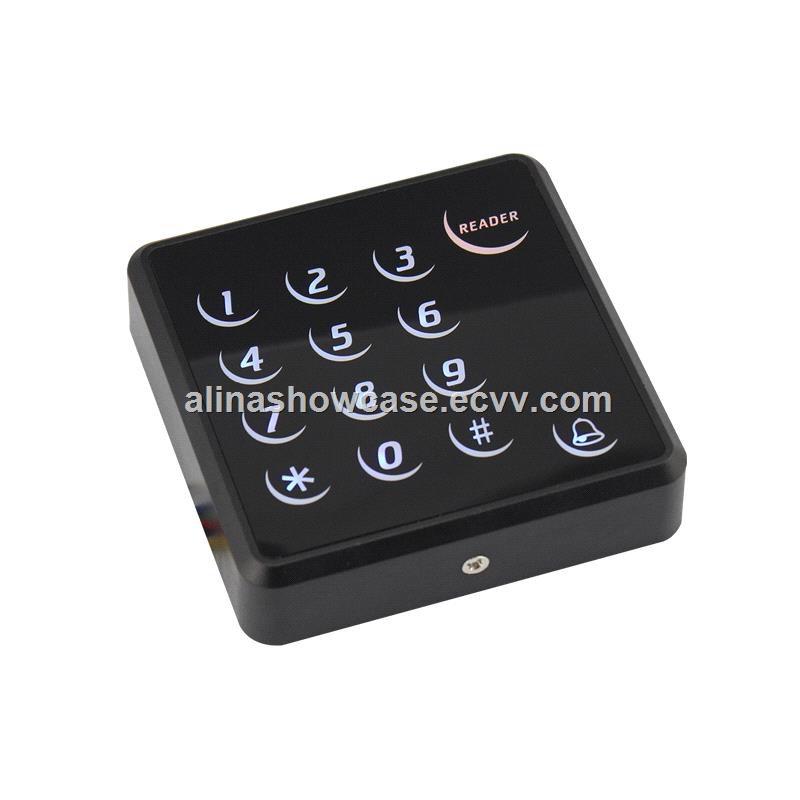

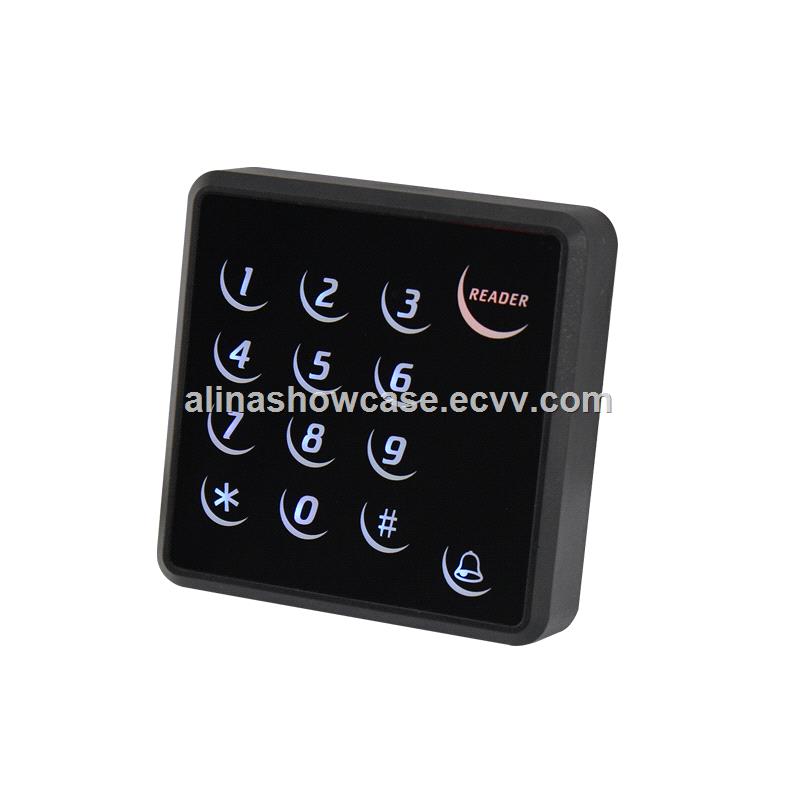

New Arrival RFID 125khz EMID Proximity Access Control Keypad Reader

FOB Price: 10.00 - 15.00 USD/Piece
Supply Ability: 2,000 Piece(s) per Week
Shipping: DHL/Fedex/UPS/EMS/China post
Payment Terms: T/T, Western Union, Other, paypal
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shenzhen in China
Packaging Details: Each reader packed in a case

Quick Details

  • Brand Name: Dwell
  • Card type: EMID
  • Communication: wiegand
  • Dimension: 88*88*21mm
  • Frequency: 125khz
  • Model Number: 1903
  • Working voltage: DC 12V
  • Interface: wiegand 26/ 34 bits
  • Support card: TK4100/ EM4200
  • Reading range: 0 to 10cm
  • Waterproof: IP66
  • Function: password reader

Specifications

New arrival RFID 125khz EMID proximity access control keypad reader

Specification

Frequency:125khz
Working voltage: DC9V to 16V

Static Current: Less 80mA
Reading Range: 5 to 10 cm
Support card: EMID
Ambient Temperature: -20 to 70 degree
Ambient Humidity: 10% to 90%
Interface: wiegand 26/34 bits
Dimension: L88X W88 X H21 (mm)
Material: Plastic case reader
Waterproof rate: IP66


Wire Connection

7 pins
Red: DC 12V
Black: GND
Green: D0
White: D1
Blue: LED
Yellow: Beep
Grey: WG26/34
Purple: Ring
Purple: Ring


Installation
Using " +" type screw driver to loosen the screw between the panel and motherboard. and then embed the motherboard to the side wall with the plastic plug and screws.


Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to using the same power GND with controller panel.
3. the wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal cards by sound and light, LED wire can not be used, data wire data 1 data 0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100 meters.
Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.
