Wuxi Simair Technology Co., Ltd.
China Manufacturer with main products: LCD Screen, LCD Module, LED Backlight, OLED, TFT |
Home
>Products Catalog > Graphic lattice module > LCD 12864 Display Module 12864 Large Size Graphic Display Screen

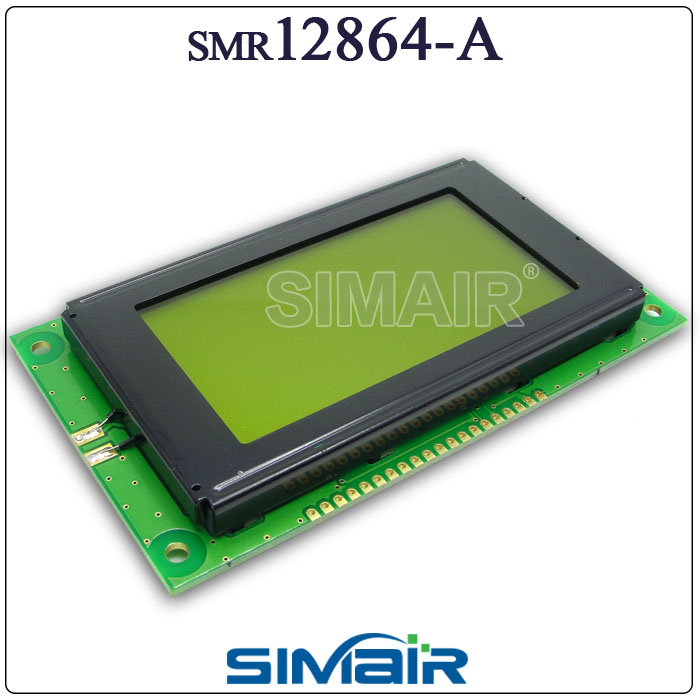

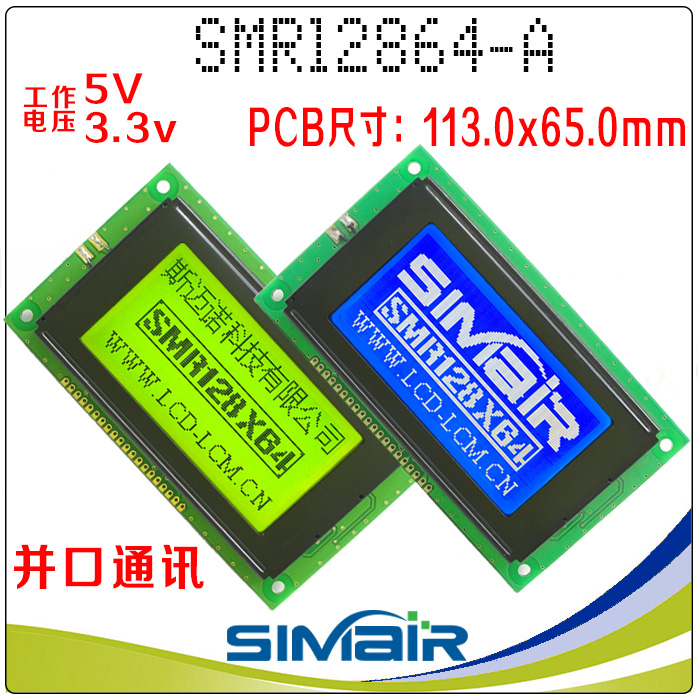

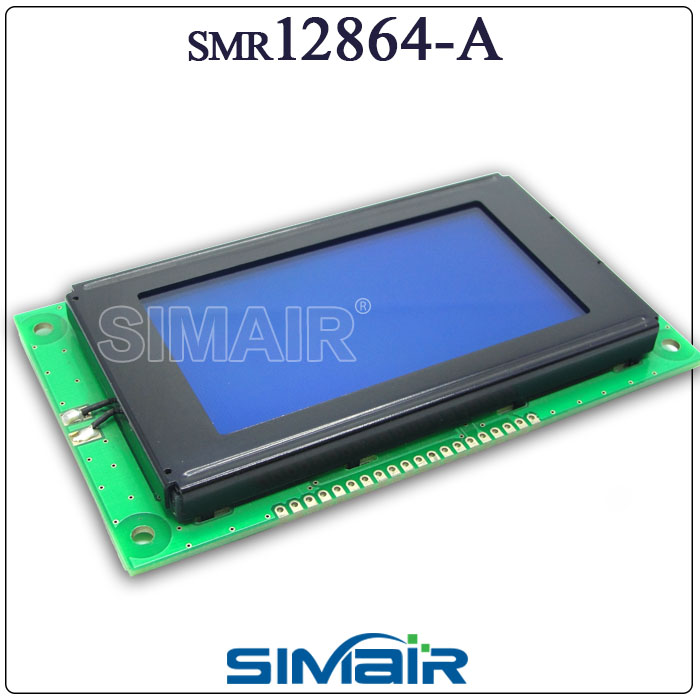

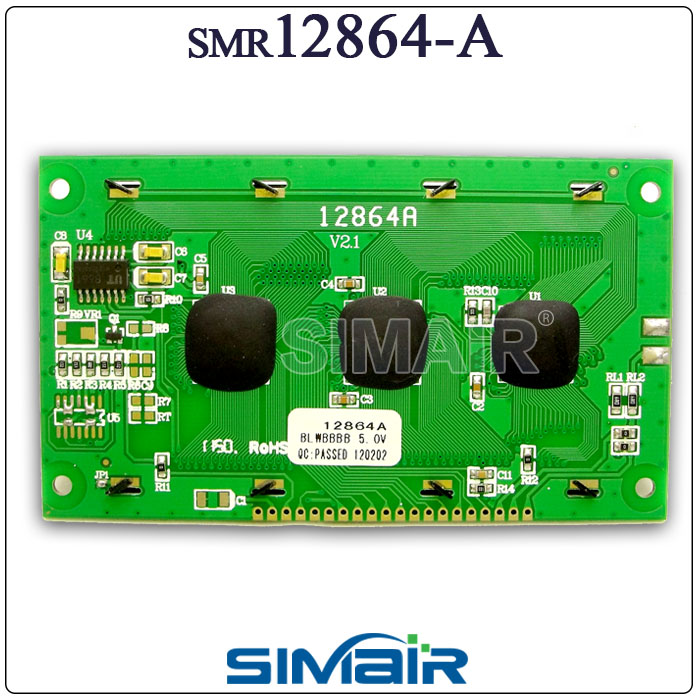

LCD 12864 Display Module 12864 Large Size Graphic Display Screen
| FOB Price: | 7.50 - 9.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
Quick Details
- Type: LCM
- Brand Name: simair
- Interface Type: 6800/8080/STI
- Resolution: 300cd
- application: Instruments and instruments
- Model Number: SMR12864-A
Specifications
1. Dot Matrix: 12864 Dots
2.LCD Mode: STN
3. Controller IC: SBN0064G or Equivalent
4. Driving Method: 1/64 Duty; 1/9 Bias
5.Viewing Angie: 6 O'clock direction
6. 6800 serial 8-Bit MPU Interface
7. Backlight: LED
8.Operating Temperature Range: -20 to +70;
9.Storage Temperature Range : -30 to +80;
Friendship tips: Freight does not include postage!!
Model: SMR12864-A
Construction COB
Display Type STN
Operating Voltage (VDD) 3.3V,5V
Backlight Voltage(VBL) 3.3V,5V
Operating Temperature (degree Celsius) -20C~70C
Storage Temperature (degree Celsius) -30C~80C
Viewing Direction 6:00
Dot Matrix 16x2
Viewing Area 62.0*18.0
Active Area 56.20*11.50
Outline Dimension 84.0*44.0*14.0
Controller SPLC780D
Backlight LED,White
FAQ
Q1: Are you a factory or trading company?
A1: We are manufacturer.
Q2: how can I get some samples?
A2: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
and you will win the 3% discount.
Q3: how does your factory do regarding quality control?
A3: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification.
Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement
Delivery time: 5-7 days for sample and 25-30 days for mass production.
Related products:
Character LCD (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic LCD (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized LCD
LED backlight panel
All kinds of LCD Module can customized.
Application:
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance),Fuel dispense
