| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | PE bag +Small white box +Carton |
Quick Details
- Connection: Plug In
- Brand Name: MX
- WARRANTY: 12 Months
- Color: black
- Model Number: MX15W-0901500BX
- Output power: 15w
- Universal AC Input: 100-240vac 50/60hz
- Output: 9v1.5a (14.5v1a 12v1a 5v2.5a for optional )
- Certificate: BIS,ROHS ,Efficiency VI level
- AC plug: India plug
- DC wire length: 1.2-1.5m
- DC connector: 5.5*2.5/5.5*2.1
- MTBF: 50K Hours
- Burn-In Test: 100% full load
- Compact size: 60.5*49.34mm
Specifications

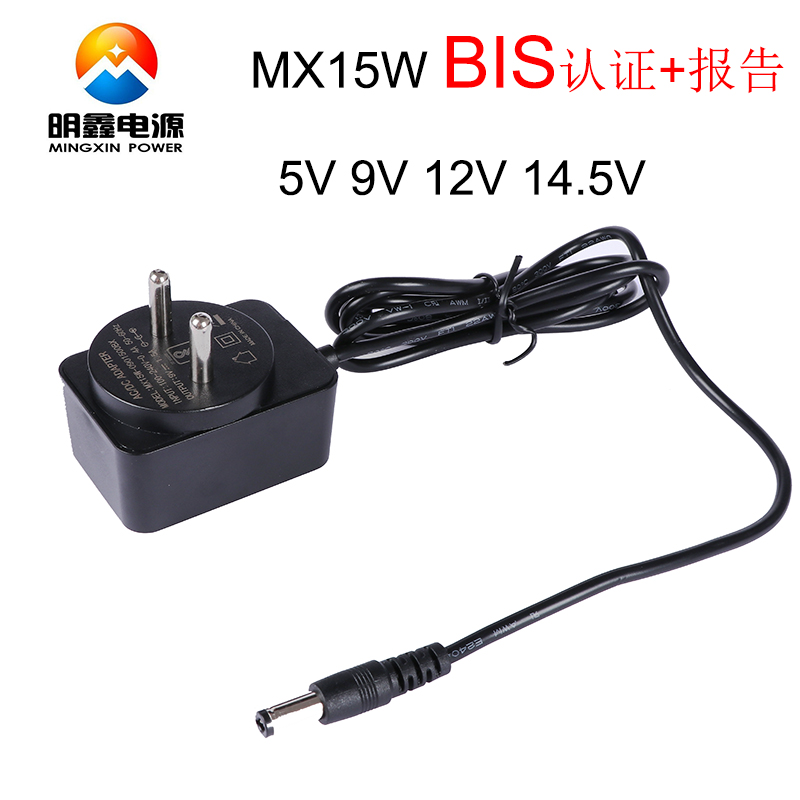

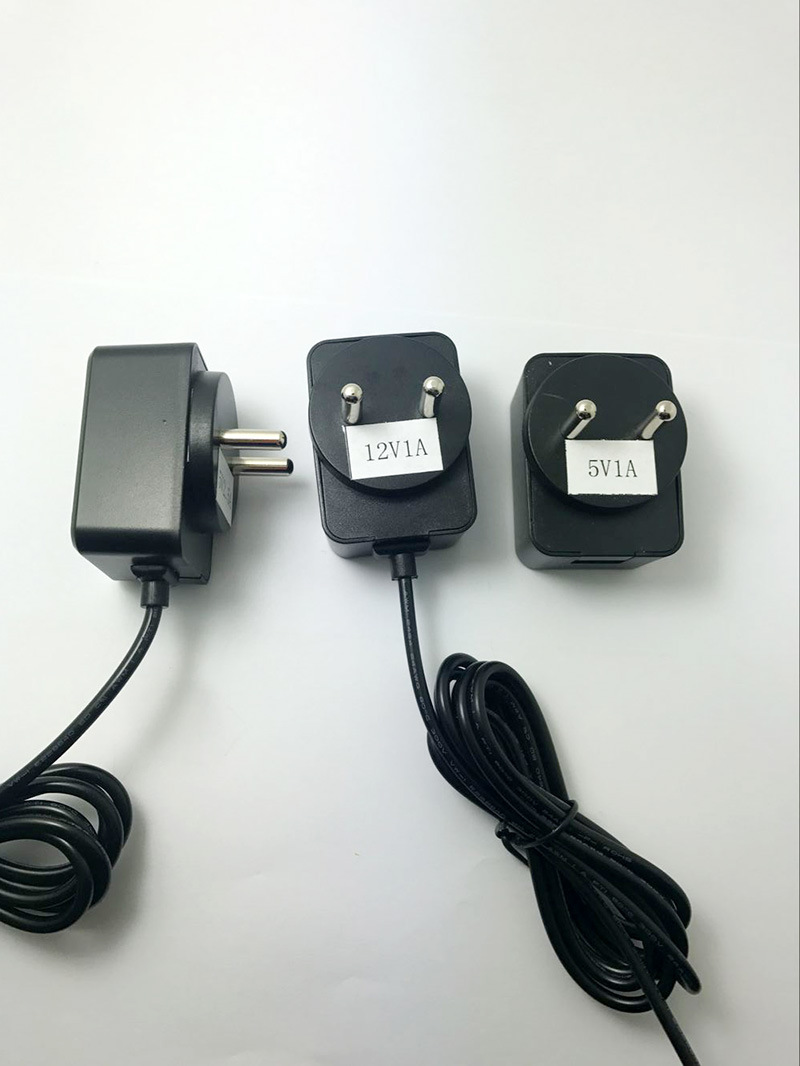

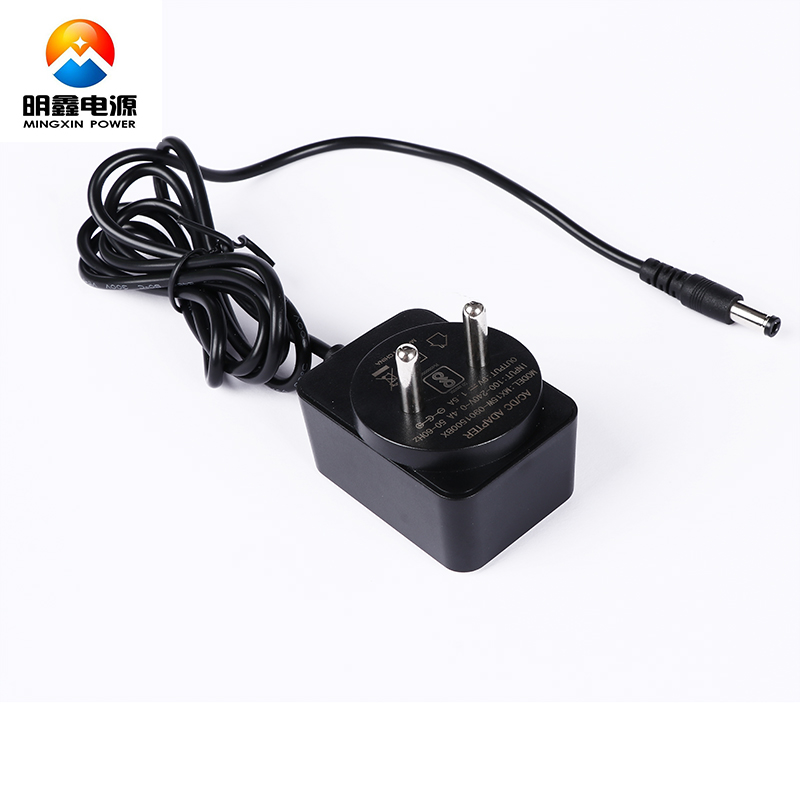

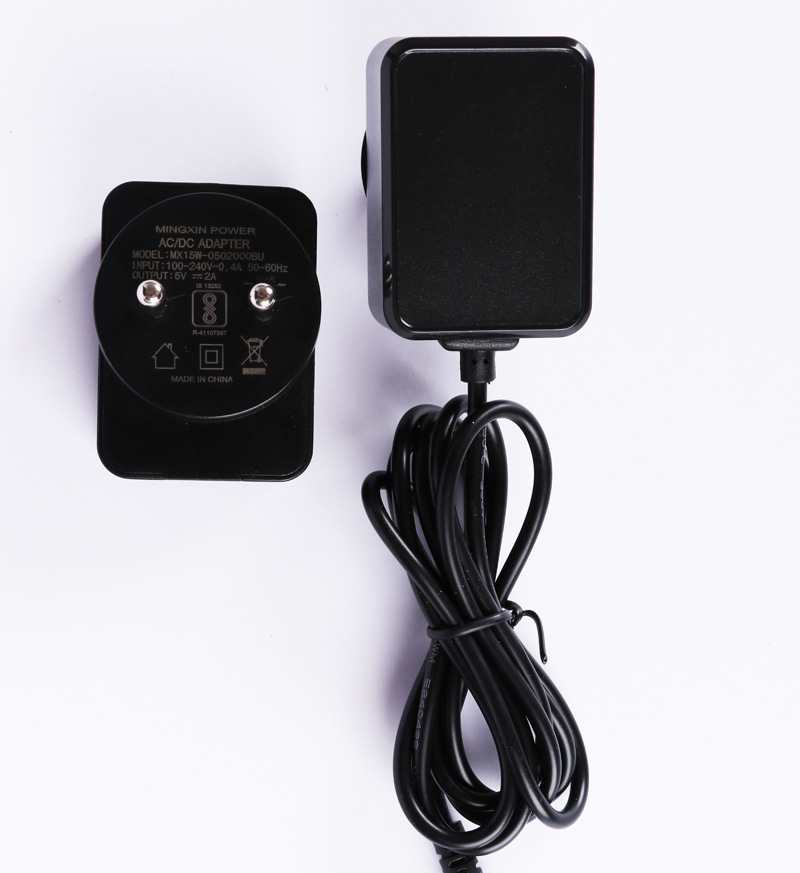

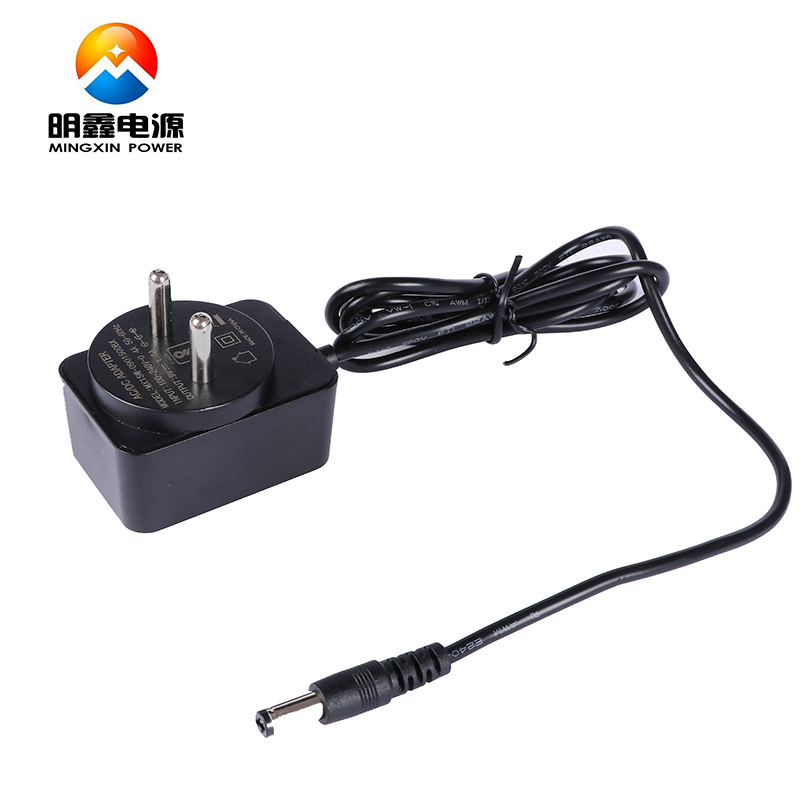

India AC plug to DC 9v1.5a 14.5v1a 12v1a power adapter bis certificate wall mounted switching adaptor
with USB port type and DC wire type
Model:MX15W-0901500BX
Main Maket: India
Certification: BIS,rohs
Mechanize size(L*W*H): 55*41*24mm
DC connector size: 5.5*2.5/5.5*2.0/3.5*1.35 or customize
DC wire length:1.2-1.5m length
Application: Set-top box,Smart TV, Mobile phone,household appliances,Router,CCTV camera etc.
Output Power
15w Universal AC Input
100-240VAC 50/60HZ Output
9v1.5a (14.5v1a 12v1a 5v1a 5v2a 5v2.5a for optional ) MTBF
50K hours Burn-in Test
100% full load No-load consumption
0.3w Leakage current
0.25mA Certification
BIS,ROHS Color
Black or white Mode
Constant volt and regulated current
