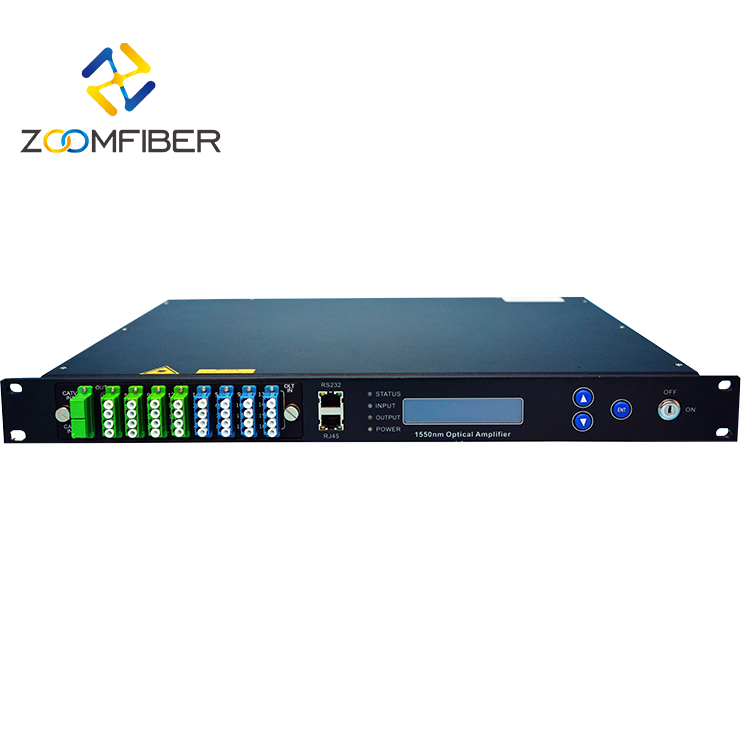

Professional Indoor CATV EDFA High Power Output 1550nm Optical Fiber Amplifier (ZOA1550H)

FOB Price:	1203.00 - 2917.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	Port Shanghai, Ningbo, Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Packaging Details:	(1) Foam + Carton Package (2) Each unit size: 545224cm (3) Weight: 8KG

Quick Details

Type: Professional Amplifier
Brand Name: ZJ optical
Frequency Response: 45-1000
Power Supply: 90~265VAC or -48 VDC
Warranty: 1
Model Number: ZOA1550H
SNMP interface: RJ45, RS232

Specifications

(1) High quality: the former-class pump adopts 980nm as small signal to amplify, after-class adopts 980nm high power multi-mode pump, optical power is optimized by software to minimize noise figure of EDFA, and make systems achieve excellent CNR.

(2) Flexibility: built-in high-performance switching power supply, it can work at 85~265Vac City Network Voltage, as well as an optional DC48V power supply (reservations required); chassis cooling automatic temperature control. Mechanical cooler (Dual fans) on back panel helps to make heat dispersion thus to protect the pump laser

(3) Intuitive: The machine equipped with microprocessor monitors the working state of the laser, the panel LCD window displays the operating parameters.

(4) Network type: Select All-piece status monitoring transponder guarantee to meet the national standard and be compatible with the SCTE HMS standard, it enables network management monitoring capabilities.

Items	unit	Specification
Operating wavelength range	nm	1540~1563
Optical input power	dBm	-8~+10
Nominal optical input power	dBm	3
Saturated output power	dBm	27~41
Number of output ports	port	4~128 (customer specify)
Noise Figure (NF)	dB	5.0~6.3 (+0 dBm input @1550nm)
Gain Flatness	dB	<0.3
Optical output power stability	dB	<0.2
Polarization Sensitivity	dB	<0.2
Polarization dependence gain	dB	<0.5
Polarization mode dispersion	ps	<0.5
Optical connector (IN/OUT)		SC/APC or FC/APC or customer specify
SNMP network management interface (optional)		RJ45, RS232
Power supply	VAC	90~265VAC or -48 VDC
Power consumption	W	50
Working temperature	C	-5~65
Storage temperature	C	-40~80
Operating relative humidity	%	5~95

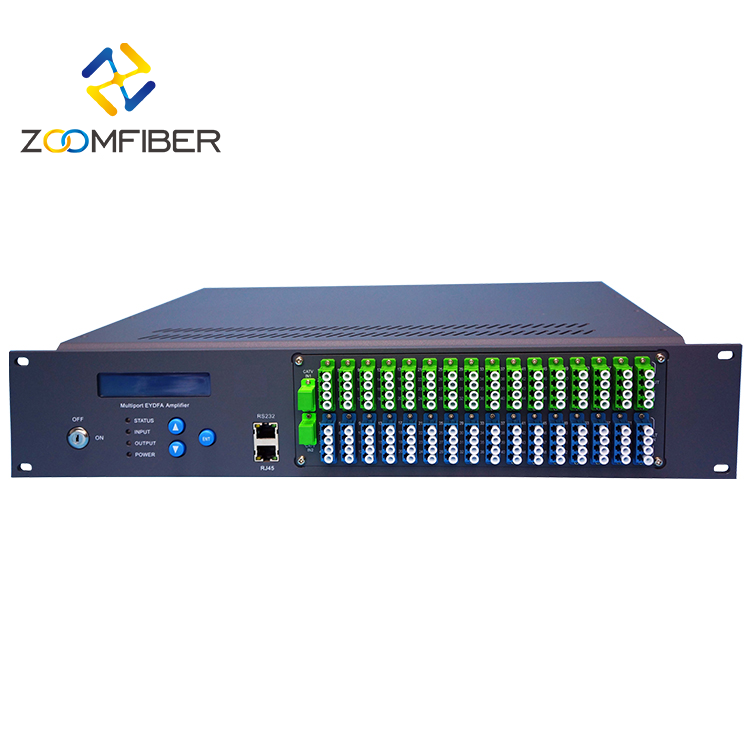

Size (WXDXH)	mm	48328044 (1U, 19" ) 48328088 (2U,19'')

Remark

1. The main component of the amplifier laser is sensitive to the static electricity, so please keep the amplifier away from the static electricity. Furthermore, please keep it away from caustic things. Please keep the amplifier in temperature between -25and 65.

2. Because big power may damage the output port, so it is advised to split to more than 4 outputs.

3. Please don't now attempt to look into the optical connectors when power applied, eye damage may result.

4. Please don't block up the heating dispersion hole and keep the machine aired.

5. Please don't unfold the machine or remove any parts of the machine.

6. Please don't insert the connectors when the power is on.

7. Please don't test the EDFA more than 5 times.

8. Big power may damage the output port, so it is advised to split to more than 2 outputs.

9. Input power influences C/N, so advised input value is 3~4dBm.

Model	Total output power @ 0dBm input		Output ports	Power of each port
	dBm	mW		dBm
ZOA1550H-27	27	500	4	20
			8	16.5
ZOA1550H-28	28	630	4	21
			8	17.5
ZOA1550H-29	29	800	4	22
			8	18.5
			16	15
ZOA1550H-30	30	1000	8	19.5
			16	16
ZOA1550H-31	31	1250	8	20.5
			16	17
ZOA1550H-32	32	1600	8	21
			16	18
ZOA1550H-33	33	2000	8	22
			16	19
			32	15.5
ZOA1550H-34	34	2500	16	19.5
			32	16
ZOA1550H-35	35	3200	16	20.5
			32	17
ZOA1550H-36	36	4000	16	22
			32	18.5
ZOA1550H-37	37	5000	32	19.5
			64	16
ZOA1550H-38	38	6300	32	20.5
			64	17
ZOA1550H-39	39	8000	32	21.5
			64	18
ZOA1550H-40	40	10000	64	19
			128	15.5
ZOA1550H-41	41	13000	64	20
			128	16.5
