1550nm MSA Optical EDFA Module, CATV Erbium-Doped Optical Fiber Amplifier Module

FOB Price:	500.00 - 580.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	Port Shanghai, Ningbo, Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Packaging Details:	CATV EDFA Power Amplifier Module fixed in standard export box: foam+carton.

Quick Details

Type: Professional Amplifier
Brand Name: ZOOMFIBER
Frequency Response: 45-1000
Power Supply: +5V
Warranty: 1

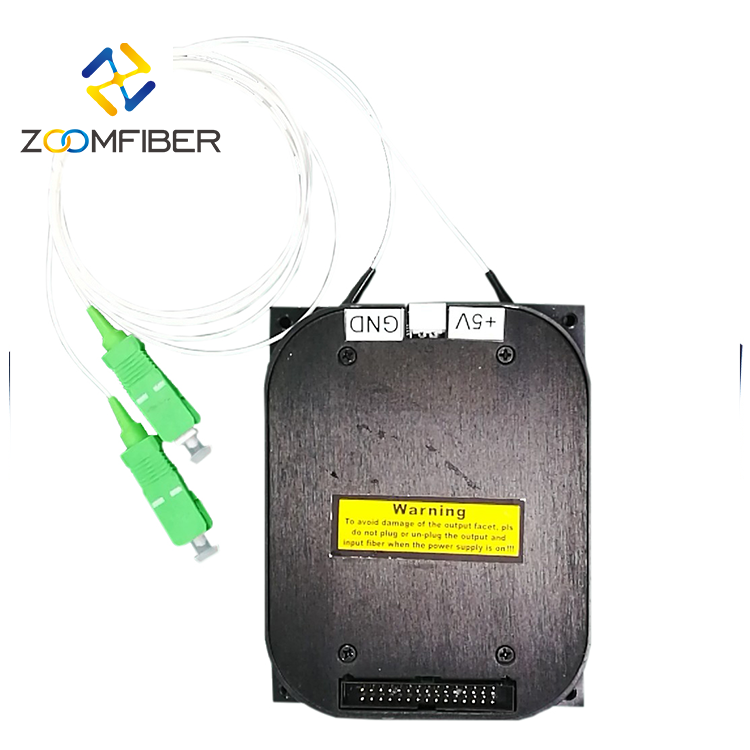

Model Number: ZOA1550MB

Specifications

(1) High quality: adopts international branded 980nm pump laser, optimized software for power, gain and flatness features, which guarantees low NF and obtain excellent system performance.

(2) Flexibility: international module size, high compatibility

(3) Reliability: 4 layers structure of inner PCB, protecting the passing current.

(4) Intelligence: Build-in CPU, APC and ATC circuit, it can start to work with +5V power supply

PIN #	Name	Description
1	+5V	+5V ower supply
2	+5V	+5V ower supply
3	+5V	+5V ower supply
4	+5V	+5V ower supply
5	Reserve	No Connection
6	Reserve	No Connection
7	Tcase_alarm	Alarm=High@case temperature exceeding its upper limit; Output
8	Lop_alarm	Loss of output power alarm, Alarm=High@output power below its lower limit; Output
9	L_pump_alarm	Alarm=High@either pump current exceeding its upper limit; Output
10	T_pump_alarm	Alarm=High@either pump temperature exceeding its upper limit; Output
11	Reset	Reset=Low; Normal=High
12	+5V	+5V ower supply
13	GND	Ground
14	GND	Ground
15	GND	Ground
16	GND	Ground
17	GND	Ground
18	RS232-TX	9600 baud rate; Output
19	LOS_alarm	Loss of input signal alarm, Alarm=High@input power below the setting lower limit; Output
20	Reserve	No Connection
21	EN_DIS	EN=High@all pumps are on; EN=Low@all pumps are off; Input
22	RX232-RX	9600 baud rate; input
23	Reserve	No Connection
24	+5V	+5V ower supply
25	GND	Ground
26	GND	Ground

Items	Parameters
Output (dBm)	13~24
Input (dBm)	-10~10
Wavelength (nm)	1530~1560
Output Adjustable Range (dBm)	UP0.5,Down -4.0
Output Stability (dB)	0.2
Polarization Sensitivity (dB)	<0.2
Polarization Dispersion (PS)	<0.5
Optical Return Loss (dB)	45
Fiber Connetor	FC/APC,SC/APC
Noise Figure (dB	<5(0dBm input)
Power Consumption (W)	12W
Power Supply (V)	+5V
Working Temp ()	-20~+60
Size (mm)	90X70X20
Weight (Kg)	0.25
