Cpg Optics Limited
China Manufacturer with main products: Optical Lens, Optical Prism, Optical Windows, IR Filter, Beam Splitter, Beam Combiner, Achromat Lens, Optical Mirrors |
Home
>Products Catalog > Optical BK7 Glass Wedge Prism Lens Anti-Reflection Coated Optical Right-Angle Prism for Laser & Medical

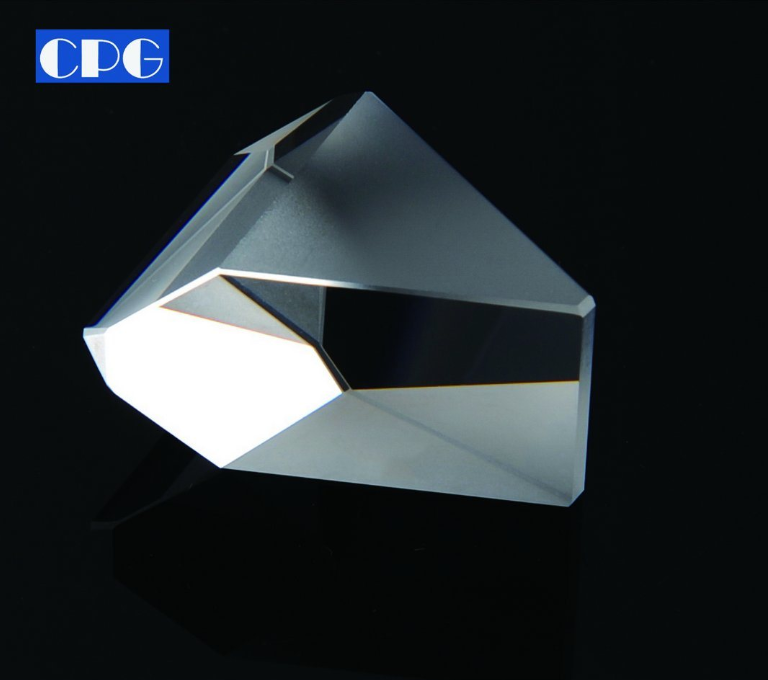

Optical BK7 Glass Wedge Prism Lens Anti-Reflection Coated Optical Right-Angle Prism for Laser & Medical
| FOB Price: | 1.00 - 500.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Oceania, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Flatness: PV<1/8L
- Dimension Tolerance: +-0.01
- Surface Quality: 10/5
- Material: Schott N-BK7
- Brand Name: CPG
Specifications

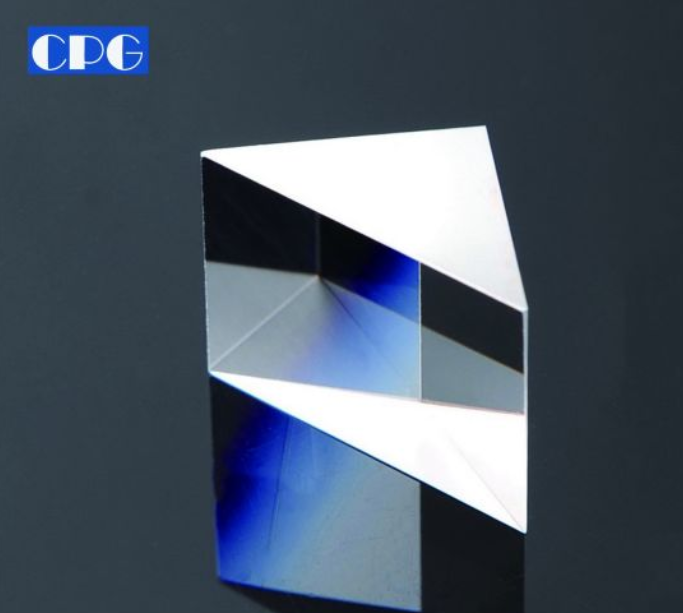

Anti-reflection Coated Optical Right-Angle Prism for Laser and Medical
Specification:
| Items | Description | |
| Right-Angle Prism | Material: | Fused Silica |
| Dimensions: | 77.78x77.78+0.00/-0.20mm | |
| Thickness: | 135.0+0.0/-0.2mm | |
| ROC1: | Infinity | |
| ROC2: | Infinity | |
| Flatness: | PV:<1/2L@632.8nm | |
| Surface quality: | 40-20 | |
| Angle tolerance: | 90deg angle:+/-5arcsec | |
| Pyramidal:+/-1arcmin | ||
| Clear aperture: | >95% | |
| Chamfer: | <0.3mmx45deg | |
| Chips:<0.3mm | ||
| Coating: | AR coating,Ravg<0.5%@300-600nm,AOI:0deg | |
Inspection:
| Parameters | Inspection Tools |
| Dimensions: | Mitutoyo Vernier caliper |
| Thickness: | Mitutoyo micrometer |
| Flatness: | ZYGO interferometer |
| Surface quality: | Naked eye test& 15W LED cold light |
| Angle tolerance: | Reflection goniometer |
| Chamfer: | Magnifier X10& naked eye test |
| Coating: | Agilent Cary 7000 |
