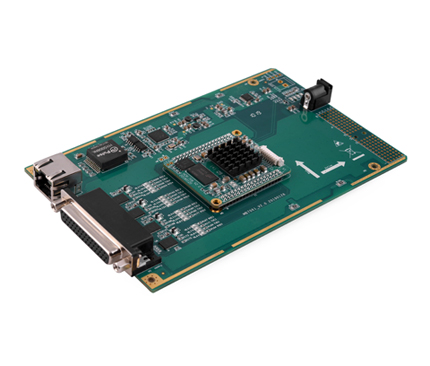

Yacer SDLC-ETH Protocol Converter HDLC RS232, 422, 485
| Shipping: | shanghai |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: yacer
- color: black
- Elongation at Break: 2
- Min. Bending Radius: 2
- Consistency of rod: 2
- Model Number: SdLC-ETH
Specifications
the Yacer SDLC-ETH protocol converter, provides four high-speed RS-232/422/485 Multi-protocol serial ports, supports synchronous HDLC/SDLC protocol and Asynchronous UART mode. One Gigabit Ethernet port, realizes protocol conversion between serial and ethernet, supports serial Ethernet bridge function.
4~17 VDC Wide voltage power supply, industrial wide temperature.
L One 10/100/1000M Ethernet interface
L Four RS-232/422/485 synchronous/asynchronous serial ports, Baud Rate up to 20 Mbps
L Synchronous HDLC/SDLC, Asynchronous UART, Bit stream
L NRZ, NRZI, DBPL, Manchester and Differential Manchester encoding Formats
L 15 KV ESD protection
L 4 ~17 VDC wide voltage power supply
L Industrial wide Temperature
L Protocol conversion between the serial port and Ethernet
L Ethernet Bridging function between Ethernet interface and serial Port
L Conversion between synchronous and asynchronous serial ports
L Multiplexer of serial ports
L High-speed synchronous/asynchronous serial data communication and Conversion
L Telemetry, measurement and control data acquisition and transmission
L Satellite, radio data transmission
L Air Traffic Control (ATC), Air
Traffic Management (ATM)
Serial Ports | |
Quantity |
4 |
Connector |
1 x D-Sub 44 (Female) |
Working Mode |
Synchronous HDLC/SDLC, Asynchronous UART Synchronous Bit stream |
Interface Type |
RS-232, RS-422, RS-485 (Configurable by software) |
Duplex mode |
Full-duplex, Half-duplex (Configurable by software) |
Encoding Format |
NRZ, NRZI, Manchester, Differential Manchester, DBPL(Differential Bi-Phase Level) |
Baud rate |
Synchronous: 20 Mbps Asynchronous: 3.5 Mbps |
HDLC frame Length |
8192 bytes |
Synchronous Clock |
Normal, slave and master clock mode |
ESD protection |
15 KV |
Ethernet Interface | |
Connector |
1 x RJ-45 |
Speed |
10/100/1000 Mbps,Auto MDI/MDI-X |
Network protocol |
TCP/IP |
Programming interface |
UDP Server, UDP Client |
Ethernet bridge |
Serial Ethernet bridge |
Configuration Management | |
Configuration tool |
Yacer-DMSConfiguration Management software |
Configuration Interface |
Ethernet Interface |
Power Requirements | |
Power Supply |
4 ~ 17 VDC |
Power consumption |
< 3 W |
Power Interface |
DC Power Jack 5.5x 2.5mm (Male) Terminal 5.0mm |
Mechanical Characteristics | |
Dimensions |
H x W x D: 30 mm x 132 mm x 165 mm |
Weight |
600g |
Operating Environment | |
Operating temperature |
-40 ~ +70 |
Storage temperature |
-40 ~ +85 |
Operating humidity |
5 ~ 95% RH(no condensation) |
Interface type |
Working mode |
Encoding format |
Baud rate |
RS-232 |
Asynchronous |
500 Kbps | |
RS-232 |
Synchronous |
NRZ |
500 Kbps |
RS-232 |
Synchronous |
NRZI, DBPL, Manchester, Diff Man |
250 Kbps |
RS-422/485 |
Asynchronous |
3.5 Mbps | |
RS-422/485 |
Synchronous |
NRZ |
20 Mbps |
RS-422/485 |
Synchronous |
NRZI, DBPL, Manchester, Diff Man |
10 Mbps |
Model |
RS-232/422/485 Serial Ports |
Ethernet Interface |
SDLC-ETH-201 |
2 x Asynchronous 2 x Synchronous/Asynchronous |
1 x 10/100/1000M |
SDLC-ETH-401 |
4 x Synchronous/Asynchronous |
1 x 10/100/1000M |
