HUAXIAN Plate Blast Freezer Freezing Storage Fruit Vegetables Seafood Meat

FOB Price:	10000.00 - 15000.00 USD/Set
Supply Ability:	8 Set(s) per Month
Shipping:	SHENZHEN-FOB
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Container

Quick Details

After-sales Service Provided: Overseas service center available
Warranty: 12 months
Brand Name: HUAXIAN
Type: Plate Freezer
Condition: New
Certification: CE
Weight: 2000KG
Dimension(L*W*H): 3000x1900x2000mm
Power(W): 1.5
Voltage: for customer
Model Number: HXPF500
Model: HXPF500
Capacity(kgd/batch): 500
Quantity of plate: 9
Dimention of plate(mm): 1450x1260
Distance between Layers(mm): 55-100
Refrigeration Consumption(kw): 23
Installed Power(kw): 1.5
Overall DimentionLxWxH(mm): 3000x1900x2000
Weight(kgs): 2000

Specifications

Product Description

Contact Plate Freezer

the cabinet, combined with stainless steel plate and foamed PU, has good insulation and low consumption. and aluminum alloy plates are employed. Double-contact makes high efficient heat exchange. the accessories are made of stainless steel with better anticorrosion.

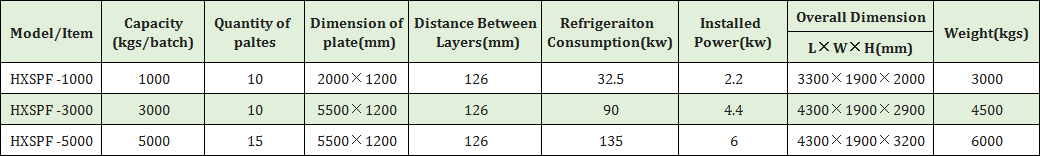

Shelf Plate Freezer

Shelf Plate Freezers are fitted with integral refrigeration plant or without. and it is similar to the horizontal plate freezer in the structure, but the plates of Shelf Plate Freezers are fixed. Double freezing modes of CONTACT and BLOWING mark its better freezing effect than normal blast freezer.

We can design and manufacture according to different requirements.

HUAXIAN plate blast freezer freezing storage fruit vegetables seafood meat

Model Select

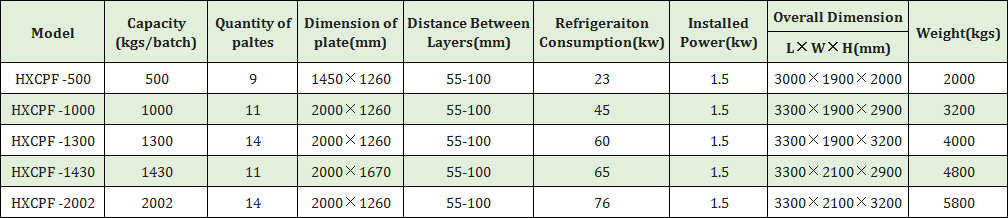

Contact Plate Freezer

HUAXIAN plate blast freezer freezing storage fruit vegetables seafood meat

Attention:

It is based on freezing fish frame or fish basin, whose volume is 7.5kgs(485*255*60mm), 11kgs(800*254*65mm). the refrigeration capacity is based on condensing temperature +35 and evaporation temperature -35.

We can design and manufacture according to different requirements.

Shelf Plate Freezer

HUAXIAN plate blast freezer freezing storage fruit vegetables seafood meat
