Chonqging Yuneng Oil-Filter Manufacturing Co., Ltd.
China Manufacturer with main products: Ultra-High Voltage Transformer Oil Purification Equipment, Double Stage High Vacuum Transformer Oil Purifier, Vacuum Transfomer Oil Purifier,... |
Yuneng Ultra-High Transformer Oil Purification Equipment
| FOB Price: | 10000.00 - 90000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | Sea Transportation/ Air Transportation/ Automobile Transportation |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | Wooden Case or Sea worthy package for Vacuum Cleaner |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: CE, ISO, BV
- Brand Name: Yuneng
- Condition: New
- Dimension(L*W*H): As per capacity
- Weight: As per capacity
- Power(W): 70KW~200KW
- Voltage: 380V or as request
- Model Number: Purification Equipment for Ultra-High Transformer Oil
Specifications
Yuneng Purification Equipment for Ultra-High Transformer Oil
1.Brief Introduction:
Ultra-high voltage is regarded as "Power Expressway" with advantages of big capacity, long distance and low loss during transmission. at present, our nation's ultra-high voltage grids are formed by 750KV, 1000KV AC and 660KV, 800KV DC, Considering its safety, it has extremely high requirements for insulating oil in transformers, mutual inductors and reactors. ZJA Series Ultra-High Voltage Transformer Oil Purification Equipment is capableof particles refining, vacuum degassing and oil water separation.
2.Techincal parameters:
Description of ZJA Series Ultra-High Voltage Transformer Oil Purification Equipment:Item
Name of Parameter
Unit
Model
ZJA6BY
(6000L/h)ZJA9BY
(9000L/h)ZJA12BY
(12000L/h)ZJA18BY
(1800L/h)Technical Parameter of Equipment
Nominal
Flow capacity
L/min
100
150
200
300 Limit vacuity
PA
2 Working vacuity
PA
30 Working pressure
Mpa
0.5
Working temperature of oil
45~65 Working power
3
Phase 4 wires, or as per buyer's option Total electric power
KW
70
100
150
200 Pipe diameter of oil
Outlet/inlet
DN
32/32
40/40
50/50
65/65 Length
CM
250
250
280
345 Width
CM
195
195
215
260 Height
CM
270
270
300
300 Weight
Kg
2200
3000
3800
4500 Oil Treatment Index
Oil breakdown voltage
KV
75 (Spherical Electrodes) Water content
ppm
3 Air content
%
0.1 Filtering accuracy
m
0.5 Granularity
(100ml
Oil sample) 5~50m500
Particles
3.Performance features:
1. this series have an oil tank with two-stage vacuum-segregating space, it come into being different pressure so as to keep oil line balance between two stages.
2. this product adopts vacuum-pump imported from Europe, which have preceding level in the world, and with high air pump speed so as to get high working vacuity.
3. as the new technology, vacuum-segregating (Patent No. ZL200420061085.6) employs a particular stainless steel,foldable column for dehydration and degassing,and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation.
4. Using new type of heating equipment (Patent No. ZL02276238.8), which has low heating load and is able to prevent oil from ageing.
5. Oil level control adopt photoelectric way ( the main components is imported from Switzerland )and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.(spray free patent No. ZL200420060973.6)
6. Personalized design, customers can require to choose their components are all or partyly imported. Include touching screen and flow gauge is can be selected according to customers. this series could meet different kinds of customersneed.
7. It equips filter elements imported from U.S.A.,which has large filtering area, strongly absorbent-dirt capability, high filtering precision.
8.whether clients choose the oil pump from domestic or imported, they all must be airproofed by our factory, they are free from oil leakage, low in operationnoise, and long in using life.

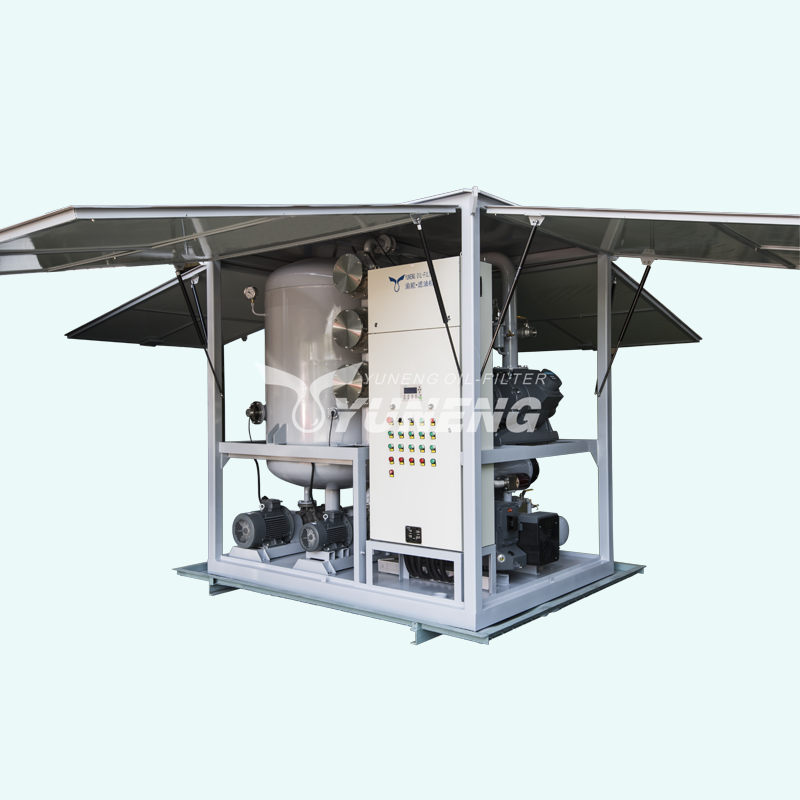

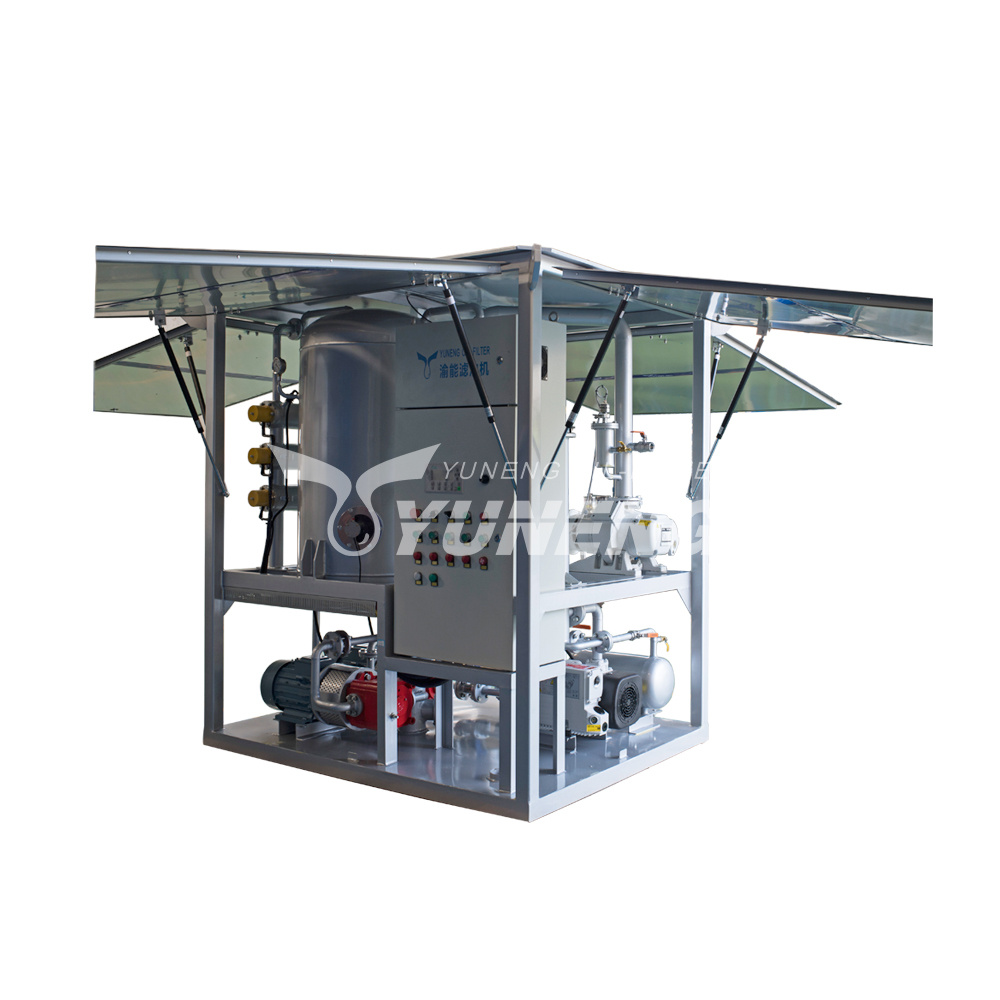

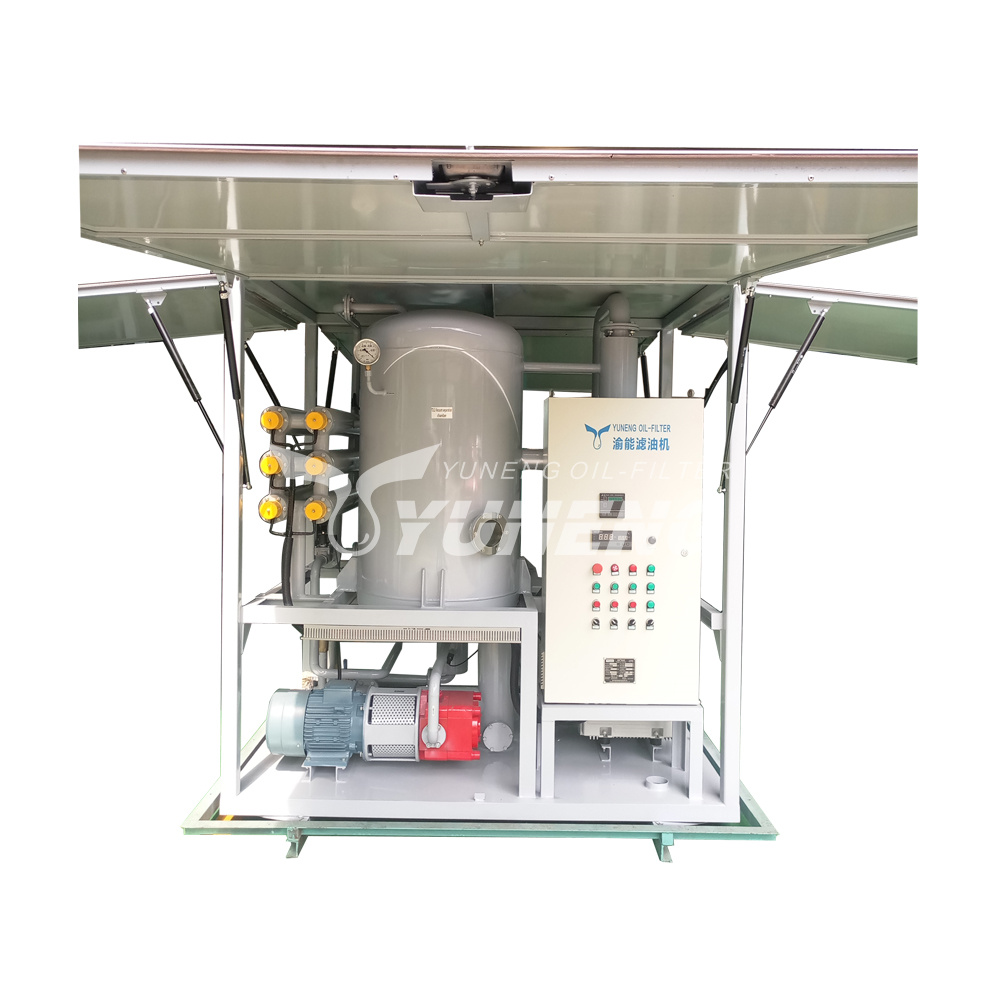

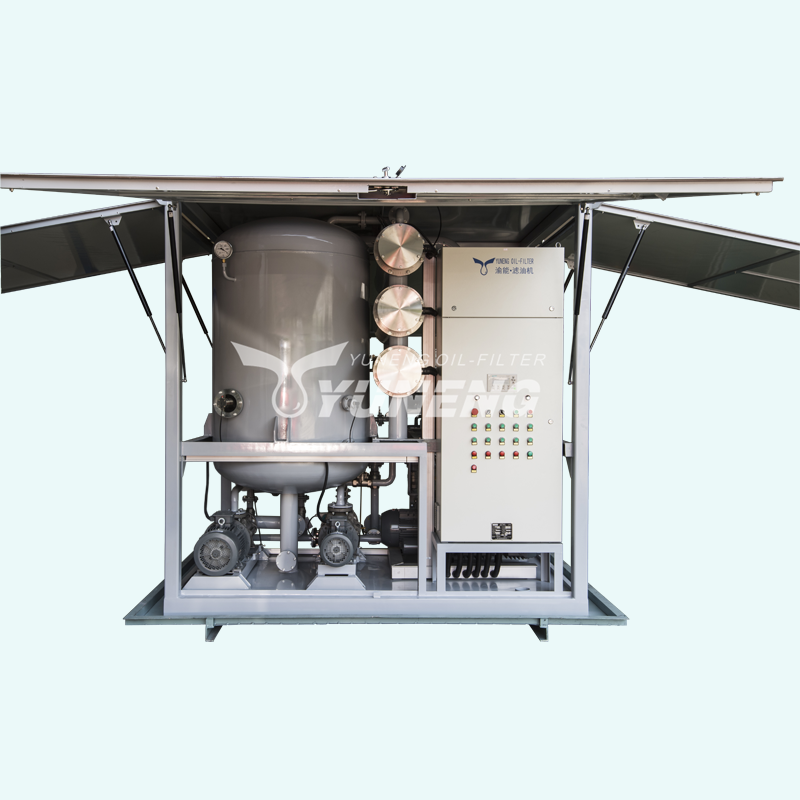

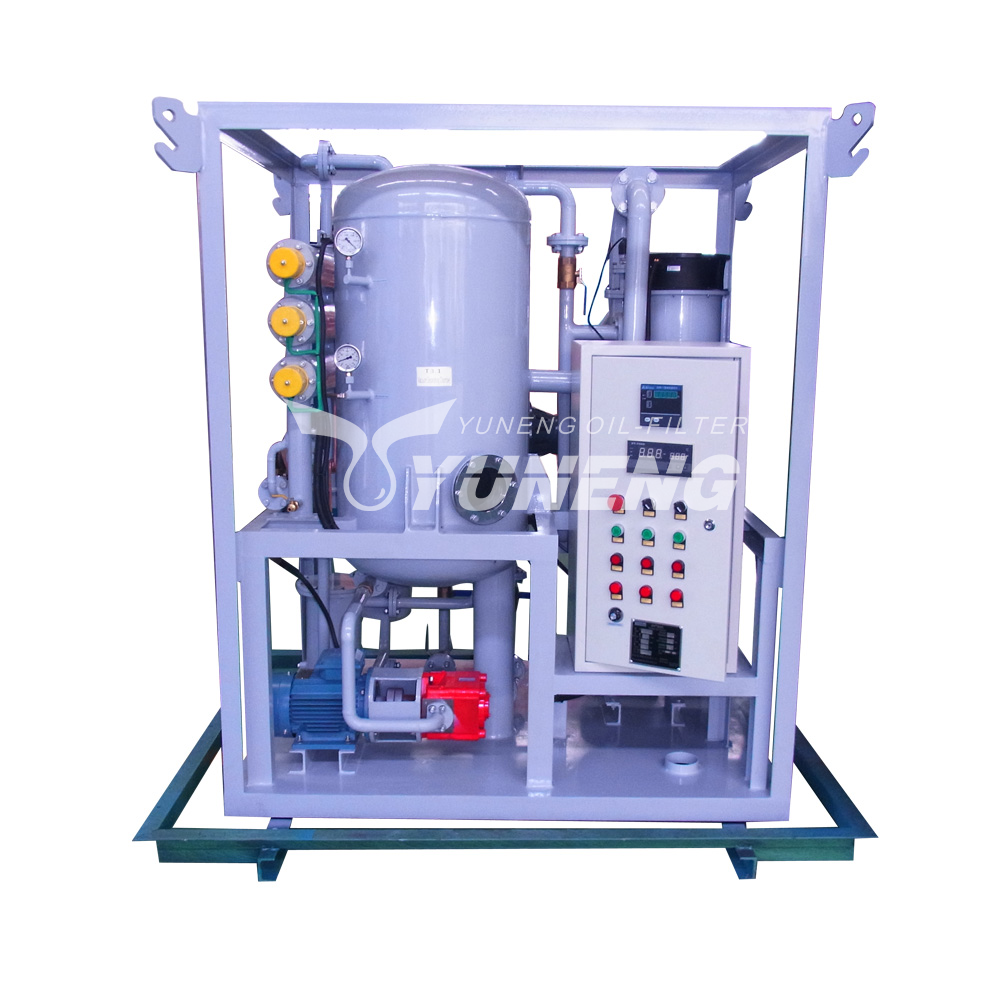

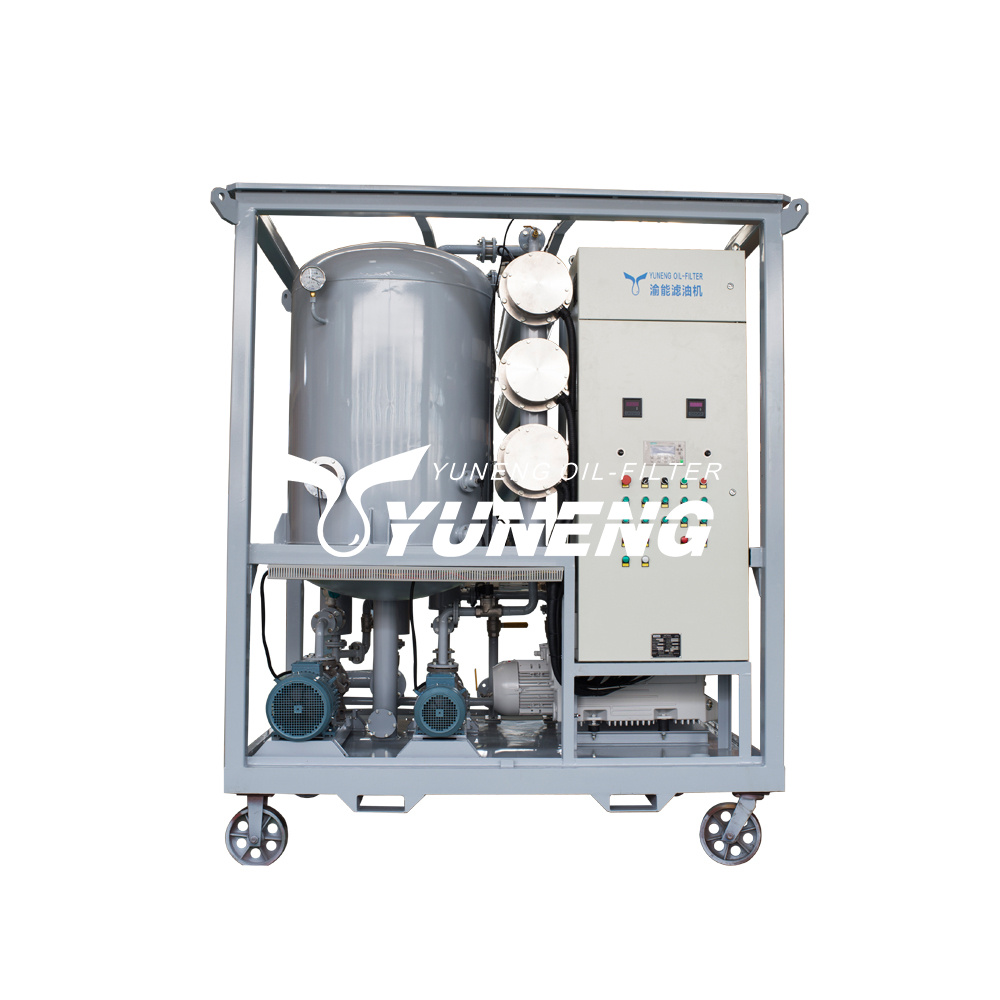

4. Product Photos
