Pulse Radar Type Level Transmitter with Blue Color & Silo Tank Application Grain Silo Level Sensor

Specifications

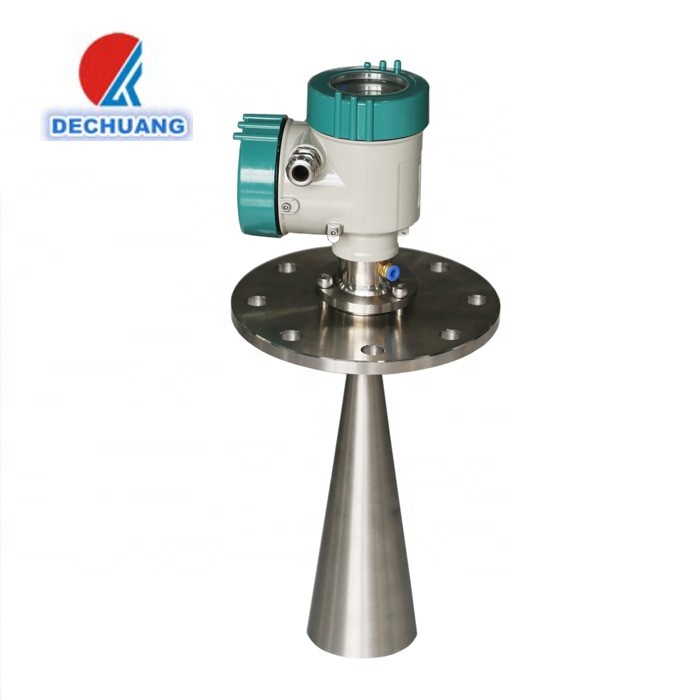

Product View
1.Working principle
Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor

Radar level antenna emits narrow microwave pulses that transmitted down by the antenna. the microwave comes into contact with the measured medium surface then reflected back and receiving by the antenna system. The signal is transmitted to electronic circuit and partly convert to level signals (as the microwave featured with high propagation speed, it's almost instantaneous for the electromagnetic waves to reach the target and return to the receiver)

2. Features of Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor

Small antenna size, easy to install; non-contact radar, no wear, no pollution.

Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.

Severe dust environment is not likely to affect the work of the high-frequency level transmitter.

Shorter wavelength can achieve better reflection for the inclined solid surface.

the small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.

Minimized measuring blind spot can gain better result of small tank measurement.

High SNR, even in the case of fluctuations can result in better performance.

High frequency, the best choice to measure solids and low dielectric media.

3. Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor Technical Parameters

4.Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor Outer Display

5.Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor Model selection

Anti-explosion

P  Standard (non-Ex)

I   Intrinsically Safe (Exia IIC T6 Ga)

D Intrinsic safety+Exd (Exd ia II CT6 GB)

Process connection/ Material

B  Flange DN80 / stainless steel 304

C  Flange DN100 / stainless steel 304

D  Flange DN125 / stainless steel 304

E  Flange DN150 / stainless steel 304

F  Flange DN200 / stainless steel 304

H  Flange DN250 / stainless steel 304

M  Flange DN80 / universal joint (stainless steel) 304

K  Flange DN100 / universal joint (stainless steel) 304

T  Flange DN125 / universal joint (stainless steel) 304

Z  Flange DN150 / universal joint (stainless steel) 304

W  Flange DN200 / universal joint (stainless steel) 304

V  Flange DN250 / universal joint (stainless steel) 304

Y  Special custom

Antenna Type/ Material

C  Horn antenna  76mm / stainless steel 316L

D  Horn antenna  96mm / stainless steel 316L

E  Horn antenna  121mm / stainless steel 316L

K Horn antenna76mm / stainless steel 316L/ blow-sweep equipment

T Horn antenna96mm / stainless steel 316L/blow-sweep equipment

Z Horn antenna121mm / stainless steel 316L/blow-sweep equipment

Y  Special custom

Seal/ process temperature

V  Viton / (- 40 ~ 150)C

K  Kalrez / (- 40 ~ 250)C

Electronics unit

2 (4 ~ 20) mA / 24V DC / HART two-wire system

3 (4 ~ 20) mA / 24V DC / HART four-wire system

4 (4 ~ 20) mA / (85~ 265) V AC / HART four-wire system

5 RS485/Modbus/( 6~26)V DC

Housing /SAfety grade

L   Aluminum / IP67

G  Aluminum / IP67 Double chamber

Cable entry

M  M20xl. 5

N  1/2 NPT

Live display/ programming

A  with

X  without

SpecialCustom

Y  Special custom

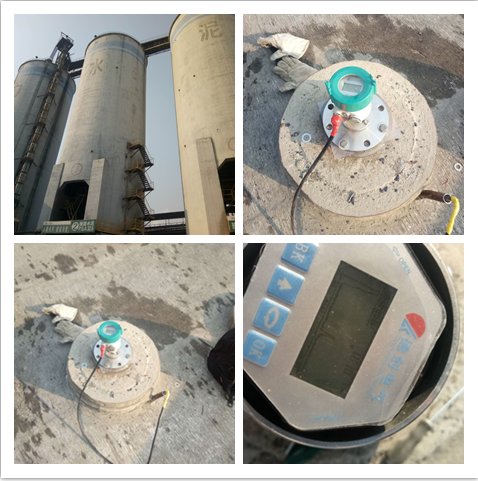

6.Pulse radar type level transmitter with blue color and silo tank application grain silo level sensor Application
