>Products Catalog > Custom Patterned ITO Glass Circuits, ITO Coating, Selective Etching, Substrate Cutting, 2um Min Line Width
Custom Patterned ITO Glass Circuits, ITO Coating, Selective Etching, Substrate Cutting, 2um Min Line Width
| FOB Price: | 1.00 - 10.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000,000 Piece(s) per Week |
| Shipping: | DHL,Fedex,Ups |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Carton or custom |
Quick Details
- Brand Name: Walthy
- Size: custom
- Type: ito glass
- Material: glass
- Color: crystal
- Model Number: 3
- Coating thickness: 10nm~10um
- Coatings: ITO, FTO, CNB, CNT, a-Si, nano-Ag, Graphene, Ag, Al, Au, SiO2 ,etc
- Subsrtate: Glass, ceramics, PET, plastic, some metal substrates
- Patern min line width: 2~10um (R&D), recommend above 20um(production)
- Max dimension: 1000*2000mm
Specifications
COMPLETE SOLUTIONS of
Custom designed ITO (Ag, Au or other conductive material) coated on glass or PET film
Coating thickness: 10nm~10um
Coatings:ITO, FTO, CNB, CNT, a-Si, nano-Ag, Graphene, Ag, Al, Au, SiO2,etc
Subsrtate: Glass, ceramics, PET, plastic, some metal substrates
Patern min line width: 2~10um (R&D), recommend above 20um(production)
Any custom shape/patterns in CAD drawing
Max dimension:1000*2000mm
the process was developed several years ago for touch panel industry, which now is successfully replaced the wet etching process. and with long time developing and higher requirements from mobile phone industry, this process is completed and used in many other applications, mainly for developing or manufacturing sensor or circuits for OLED, medical, solar cell, consumer electronics, and many R&D cases.
We have done a lot of cases with different materials coated on different substrates, the typical one is ITO patterning, with the different absorption rates of laser, we could remove some material and no hurt to the substrate. the coating thickness usually less than 10um, and most of them is less than 1um.
the strength of this process is that it could etch 20/20um patterns which makes it possible to design the whole pattern very small and tight, and easy CAD input helps the designers have a fast prototyping and demonstration.and recently we have succeed in making a 2um line width pattern for a world-famous company in laboratory. In addtion, with improved technologies, double sides coating and patterning of different design is also possible

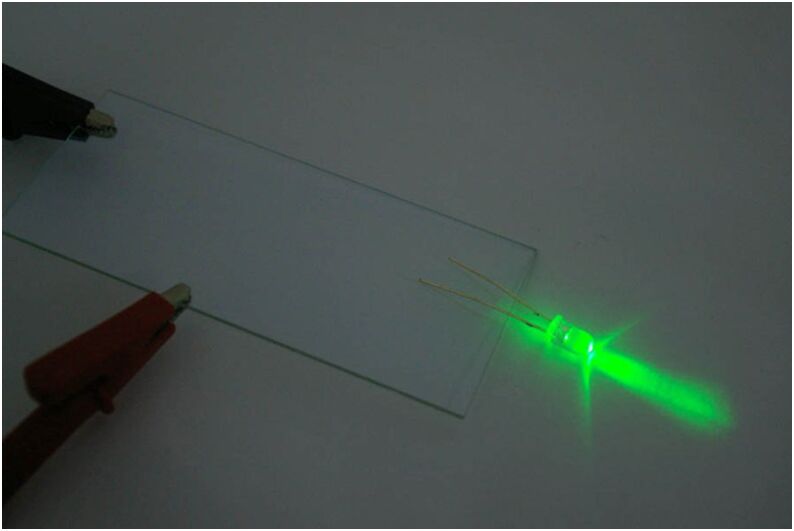

Transparent circuits ( Transparant ITO glass with customized patterns)
Resistance: 4~ 100 Ohm or any specially required
Transparent rate (ITO): >80% depends on the coating thickness and resistence requirements
Conductive material: ITO, CNB, CNT, nano-Ag, Graphene, and all kinds of metal coating, etc.
Min etching line width: 20um
Custom circuits area: 600*600mm
ITO single layer and double layer etching, other coating film etching, such as Ag, Al, Si removing
Precision: +/-10um
Alignment: 5um
Any patterns of CAD output

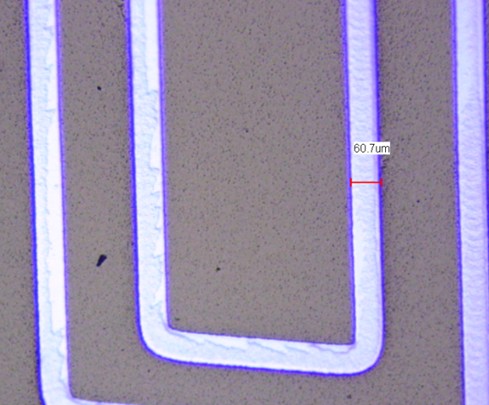

Metal(aluminum) coating on glass patterning
20~30um line width and pitch(* the min line width & pitch could be 10um)
Application: touch panel, OLED, solar cell, electronics, medical, etc

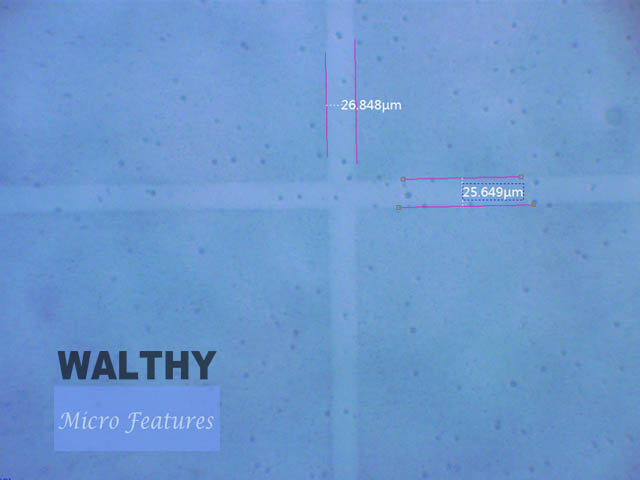

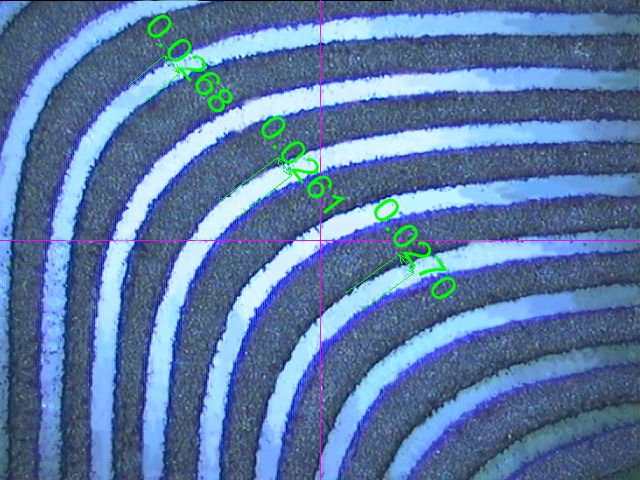

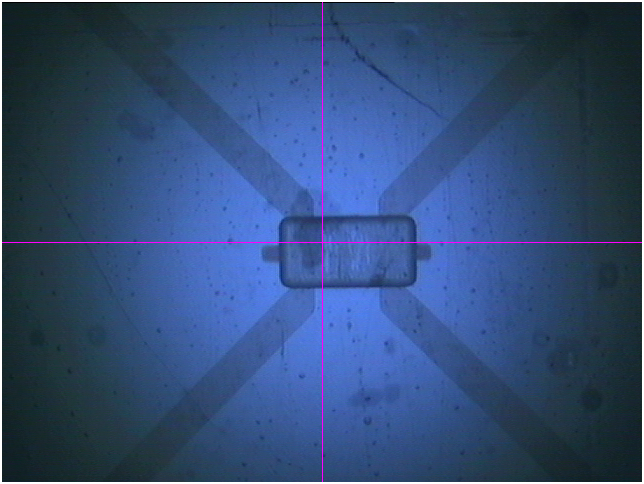

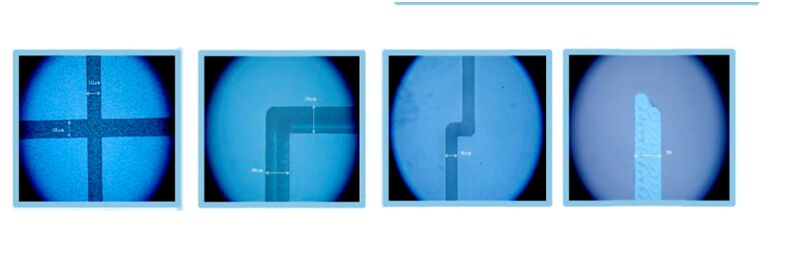

ITO patterning under microscope
