Custom Rectangular Jigger Tubes For Vacuum Pan/Perforated Tubes For Fluid Filtration or Gas Sparging

FOB Price:	400.00 - 600.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	DHL,Fedex,Ups
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Wooden Case

Quick Details

Section Shape: Rectangular
Outer Diameter: 120*40
Thickness: 1.5 mm
Grade: STPA22-STPA26
Grade: STPA23
Standard: JIS
Standard: JIS G3101
Outer Diameter: 120*40
Surface Treatment: Galvanized
Application: Gas Pipe
Secondary Or Not: Non-secondary
Hole Diameter: 0.2-0.8mm, depends on the thickness of tubes
Material: Stainless Steel,Steel
Application: Sugar industry,food industry etc.
Tubes: Rectangular,Round tubes etc.

Specifications

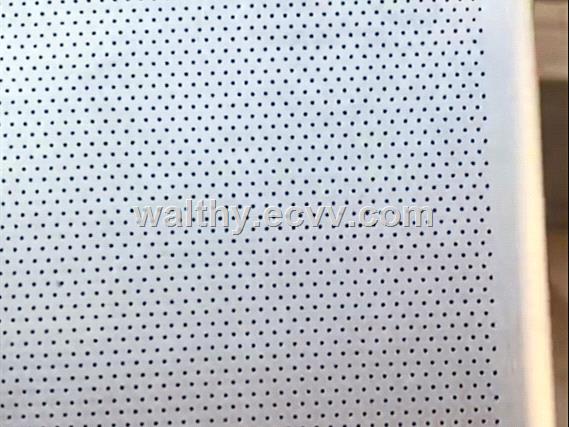

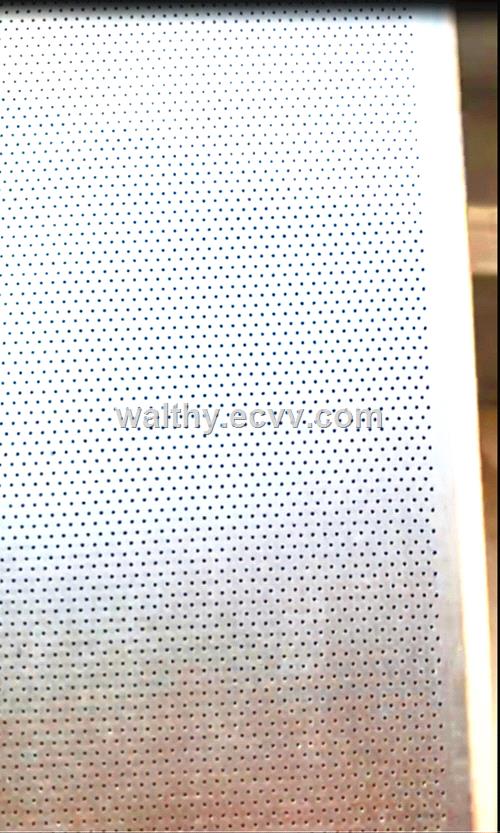

Jigger tube is a stainless steel tube(usually SUS316) that drilled with about 100,000 small holes of 200 microns per metre of tube length.This design is widely used in sugar industry to boost circulation and heat transfer rates in vacuum pans. The jigger tube system injects and distributes numerous small bubbles of steam at controllable rates into the base of the pan. Circulation is improved through a combination of the rising bubbles and the increased heat transfer that results from the increased massecuite velocity.

Custom Rectangular Jigger Tubes For Vacuum Pan/Perforated Tubes For Fluid Filtration or Gas Sparging
We can customize different kinds of perforated tubes for R&D and sugar industry,including jigger tubes, fluid filtration tubes,gas or vapor diffusion tubes.We are a custom manufacturer of perforated tubes based on your specs, needs, and project application.

Our Capabilities:

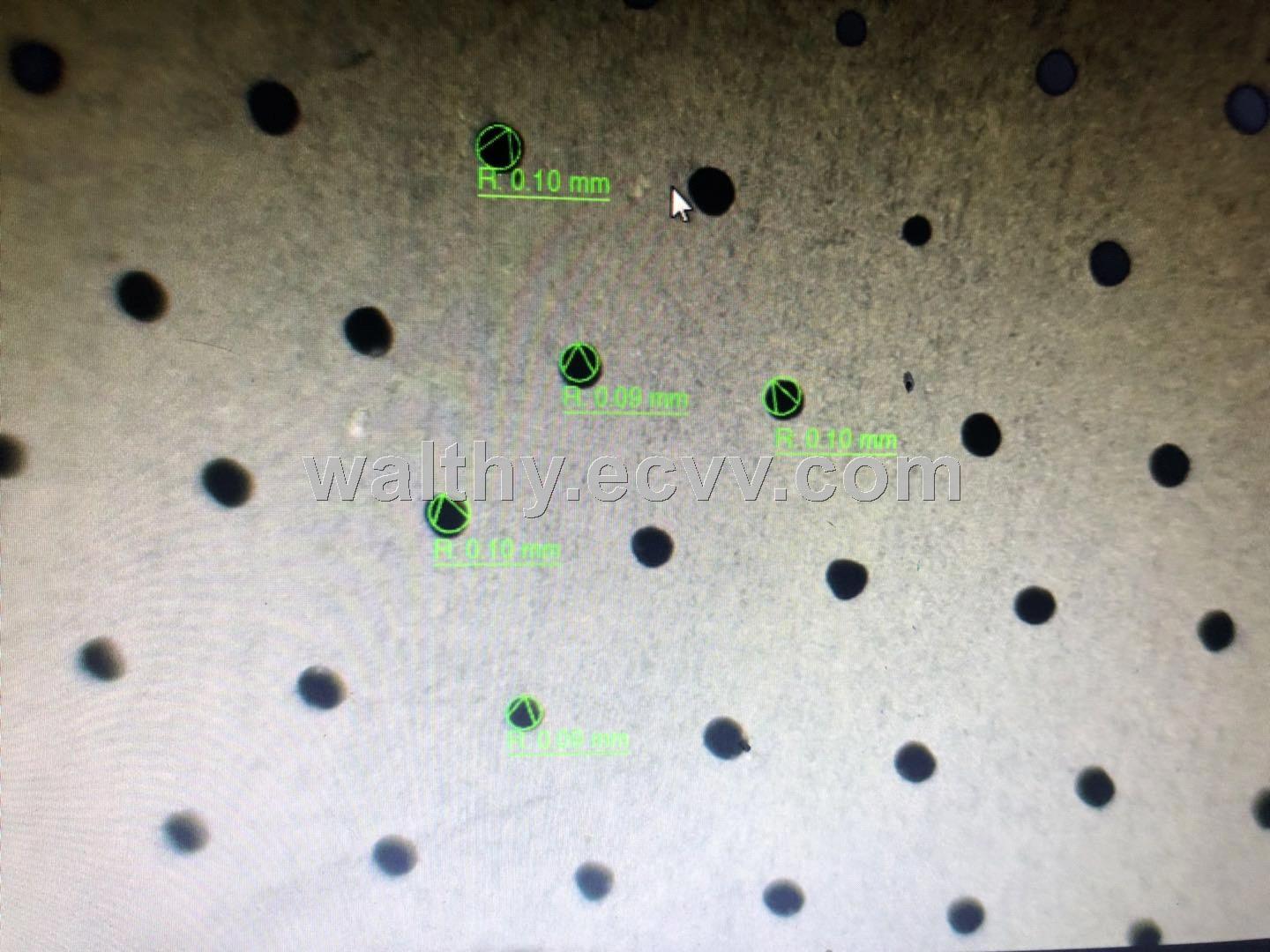

Hole Diameter:0.2-0.8mm, depends on the thickness of tubes

Material:Stainless Steel,Steel

Application:Sugar industry,food industry etc.
Tubes:Rectangular,Round tubes etc.

We are interested to develop perforated solutions for your specific application.
