Home >Products Catalog > YUNENG Used Gear Oil/Hydraulic Oil/Compressor Oil Recycling Oil Filtration

YUNENG Used Gear Oil/Hydraulic Oil/Compressor Oil Recycling Oil Filtration

FOB Price:	6000.00 - 30000.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	Sea Transportation/ Air Transportation/ Automobile Transportation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Networking Cabinet Enclosure Metal Frame 9 Bend...

Price:60000.00-70000.00 USD/Case

Min. Order:1 Case
Phone LCD Flex Ribbon Repair FPC ACF Pulse Heat...

Price:1.00-2.00 USD/Piece

Min. Order:1 Piece
Tappet Base Thickness Detection & Sort Mach...

Price:90,000.00-100,000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Iron sheet case or wooden case/Compressor Oil Recycling

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: CE, ISO, BV
Brand Name: Yuneng
Condition: New
Dimension(L*W*H): As per capacity
Weight: As per capacity
Power(W): 13.5KW, 33KW, 65KW, 97KW, 127KW
Voltage: 380V or as per request
Model Number: Customer's Requirement
Function: Compressor Oil Recycling
Structure Material: Carbon steel
Oil pump: Gear pump
Vacuum pump: Air cooling
Horizontal tank: Considering viscosity, better for dehydration
Heater: Low heat load, carbon steel
Electric wiring: IEC standard
Filter: International famous brand, high quality
Usage: Compressor Oil Recycling

Specifications

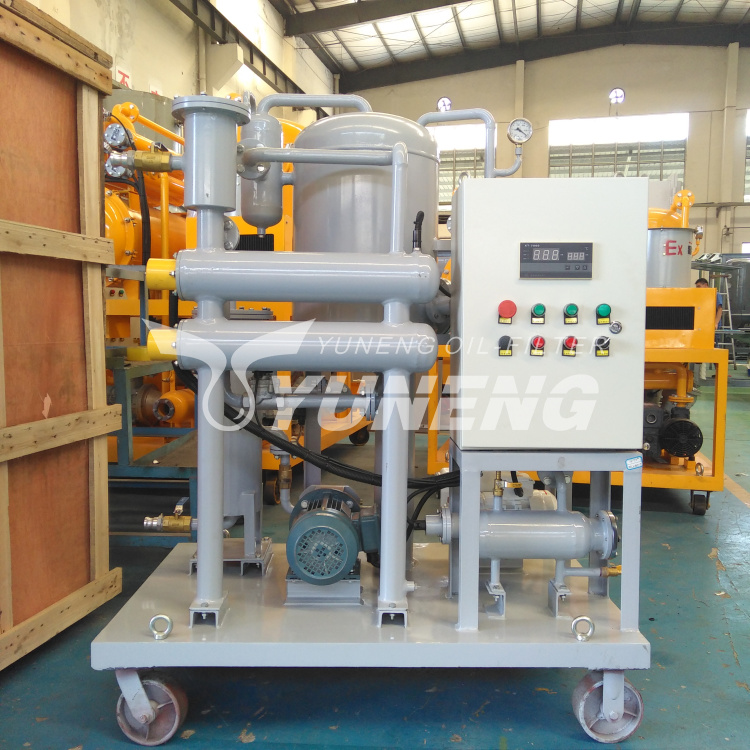

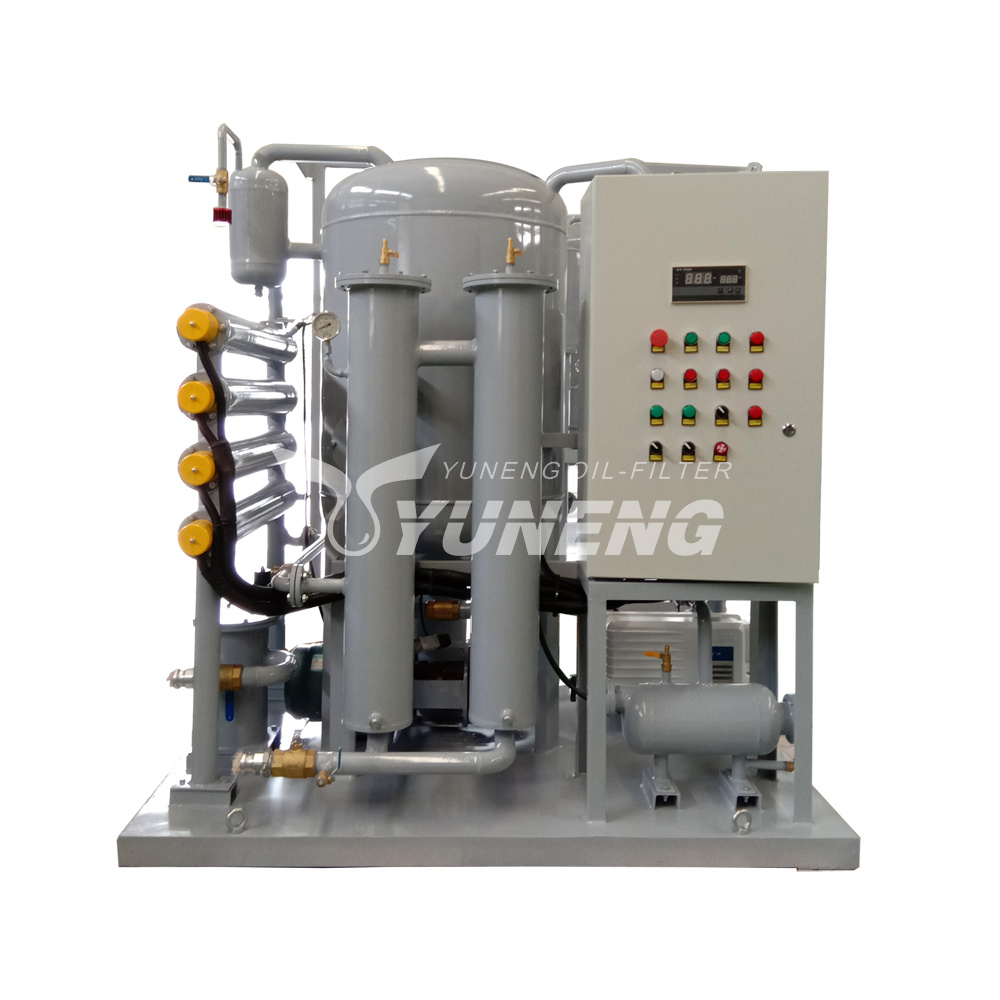

YUNENG Used Gear Oil/Hydraulic Oil/Compressor Oil Recycling Oil Filtration

Product Description:
YUNENG Used Gear Oil/Hydraulic Oil/Compressor Oil Recycling Oil Filtration are mainly designed to purify various industrial waste oils with the viscosity lower than 320mm/s. It is an ideal choice for plants maintenance service, energy-saving and cost-reducing.

the special design and mature technology can promise its after-treatment oil index:

WAter content: 50ppm

FIltration accuracy: 3 micron

PArticles: no (by visual test)

YUNENG Used Gear Oil/Hydraulic Oil/Compressor Oil Recycling Oil Filtration PArameters:

Item	Parameter		Unit	ZJC0.6KY	ZJC1.2KY	ZJC1.8KY	ZJC3KY	ZJC6KY	ZJC9KY	ZJC12KY	ZJC18KY
Technical Parameter	Flow Rate		L/min	600	1200	1800	3000	6000	9000	12000	18000
	Working Vacuity		Mpa	-0.07 ~ -0.101
	Working Pressure		Mpa	0.6
	Temperature Range		oC	45-65
	Power Supply			50Hz 380V 3-Phase 4-Wire (or as requested)
	Total Power		KW	6+1.5	9+1.5	12+1.5	30+3	2X30+4.4	3X30+6	4X30+7	5X30+9
	Inlet/Outlet Diameter		mm	20/20	20/20	25/20	32/25	38/32	64/48	76/64	89/76
	Size	Length	mm	1300	1300	1300	1900	1900	2100	2200	2300
		Width	mm	1000	1050	1050	1400	1400	1500	1600	1700
		Height	mm	1250	1450	1450	1950	2100	2150	2250	2300
	Weight		Kg	350	420	510	950	1200	1600	2200	3500
Oil Treatment Index	Water Content		ppm	100
	Filtering Accuracy		m	5
	Cleanness		NAS	Grade 5~7

YUNENG Used Gear OilHydraulic OilCompressor Oil Recycling Oil Filtration
