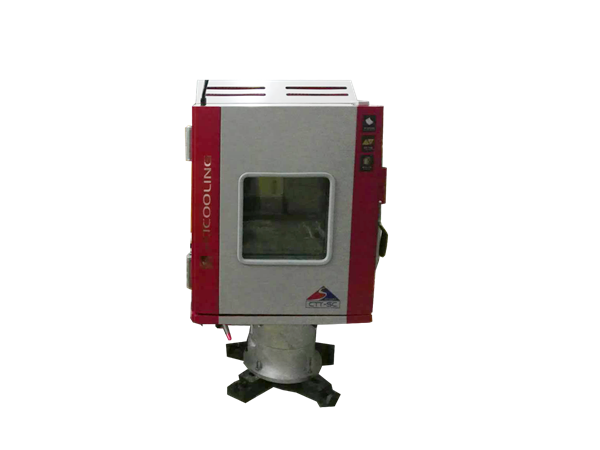

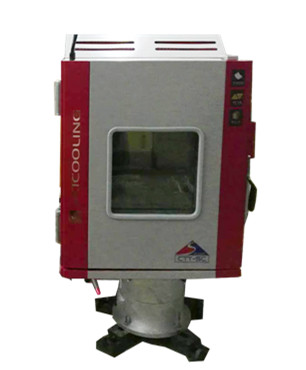

Single-Axis Rate Turntable with Temperature Chamber
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 0.5
- Size: 200-500mm
- Model Number: ST18A
Specifications
Single-Axis Rate Turntable with Temperature Chamber | |
Function |
this device provides the benchmark of position and rate for the tested load, it's used for static testing and calibration of inertial original components, inertial navigation systems. the temperature chamber provides the test environment for the tested load with low and high temperature. |
Axis Orientation |
Vertical or Horizontal |
Payload Weight |
5-40kg |
Dimension of Table Surface |
200-500mm |
Magnetic Leakage |
2 Gauss(20mm from the table surface) |
Material of the Table |
Stainless Steel |
Table flatness |
0.015mm |
Table Wobble |
0.02mm |
Motion Error of Main Axis |
5 |
Angular freedom |
Continuous |
Position Accuracy |
2~180 |
Position Resolution |
0.5 |
Rate Range |
0.005/s~3600/s |
Rate Resolution |
0.001/s |
Peak Acceleration |
5000/s2 |
Conductive Slipring |
40 rings/3A |
Remote Control Interface |
RS232/RS422 |
Inside Dimension |
600mm700mm800mm(LWH) |
Temperature Range |
-55+90 |
Temperature Stability |
0.5 |
Temperature Uniformity |
2.0 |
Temperature Deviation |
2.0 |
Rate of the Temperature Change |
2.0/min |
Running Noise |
65dB(1m in front of the box) |
Others |
the technical parameter of the temperature chamber can be adjusted by user's requirements. |
